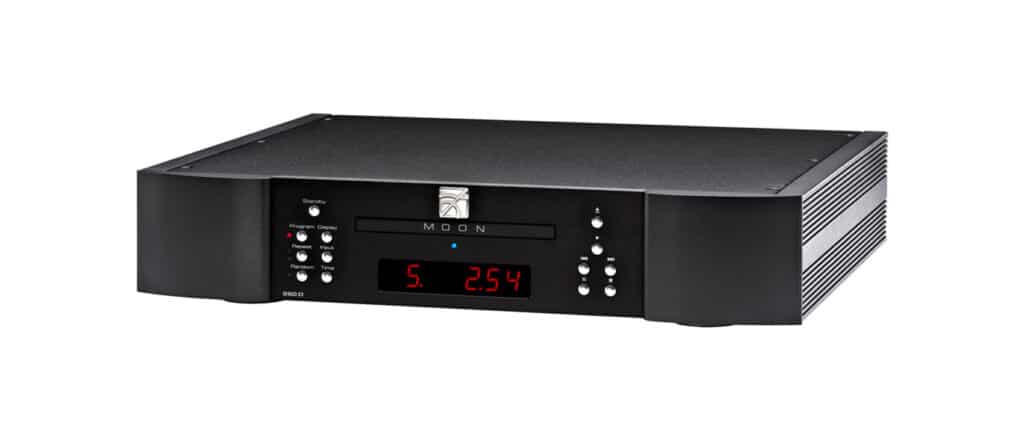

MOON 260D – CD Transport with 32-bit/192kHz DAC

$4,400.00

The MOON 260D with optional 32-bit DAC combines high-performance, USB input and CD playback all into one chassis.

Contact Us To Purchase
SKU: 260D
Categories: ,
Brand:

Description

Like two products in one: CD player and standalone DAC

A true high-performance, high-end, affordable digital product that meets current and future needs. The MOON 260D CD transport with optional 32-bit DAC is the next evolutionary step in combining high-performance, useful features, CD playback and music streaming all into one chassis.

Highly flexible with USB input

The MOON 260D provides superb flexibility as a result of it being a CD Transport and a DAC all-in-one. Thanks to its 32-bit processing engine, upsampling capabilities, hallmark MOON oversized power supplies and elaborate analog stages, the 260D‘s sonic performance is without equal in its price category. The DAC section is entirely optional, whereby you can easily add it later on, if not needed right now.

MQA pass-through

The MOON 260D CD Transport features “MQA pass-through” capability. The MQA encoded data on the disc will be outputted on the digital output such that an MQA certified DAC will decode it and give you the full performance that MQA offers.

Available as a transport only for DAC owners (T version)

Specifications

Design features

  • Proprietary CD drive system mounted on our M-Quattro gel-based 4-point floating suspension for vibration damping, allowing ambient and spatial cues in your recordings to come to life like never before.
  • Two (2) digital outputs – S/PDIF and AES/EBU.
  • True 32-bit asynchronous Digital-to-Analog converter.
  • 4 digital inputs (S/PDIF x 2, TosLink x 1 and USB x 1) allowing for a connection to virtually any digital source.
  • USB input with galvanic isolation.

Specifications

  • Frequency response (full range)
    2Hz – 100kHz +0/-3dB
  • THD @ 1kHz, 0dBFS (A-weighted)
    0.005%
  • Intermodulation distortion
    0.005%
  • Dynamic Range
    120dB
  • Signal-to-noise Ratio
    120dB @ full output
  • Channel Separation
    116dB
  • Intrinsic Jitter
    1 picosecond RMS
  • Analog Output @ 0dBFS
    2.0 V
  • Analog output impedance
    75Ω
  • PCM Bit-depth range
    16 – 24 bits
  • PCM sampling frequency rates
    44.1 – 192kHz
  • Shipping weight
    16 lb / 7.5 kg
  • Dimensions (width x height x depth)
    16.9 x 3.4 x 13.1 in
  • 42.9 x 8.6 x 33.3 cm
