MOON

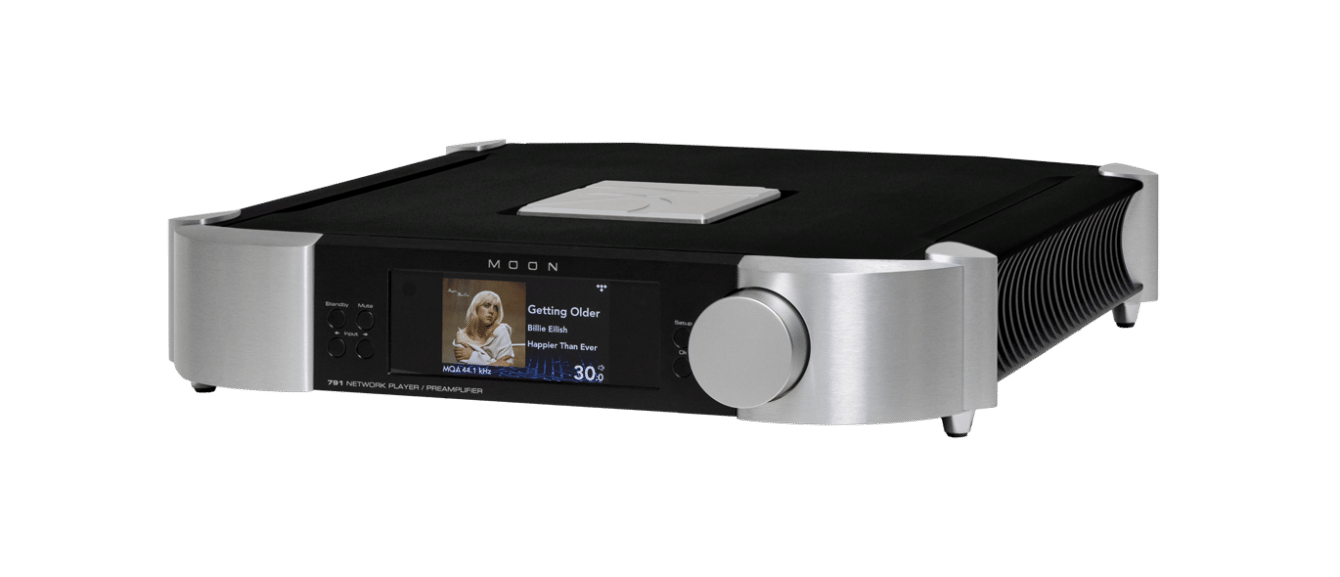

791 – Network Player/Preamplifier

$21,000.00

The MOON 791 is much more than a preamp. It combines a high-end phono stage and streaming DAC in a state-of-the-art analog preamplifier.

Contact Us To Purchase
SKU: 791
Categories: , , ,
Brand:

Specifications

  • Design features
    • 6 Digital Inputs
    • 1 HDMI with ARC
    • 3 Analog Inputs
    • MM/MC Phono Stage
    • MiND2 Module
    • MDE-2 DAC Technology
    • M-VOL3 Volume Control
    • Fully-Balanced Configuration
    • 4.3” Graphic Colour Display
    • BRM-1 Intelligent Remote Control
  • Specifications
    • Analog Input Impedance
      22 kΩ
    • Maximum Gain (Line Level)
      10 dB
    • Phono Input Gain
      40 dB / 54 dB / 60 dB / 66 dB
    • Phono Input Capacitance
      0 / 100 pF / 470 pF
    • Phono Input Resistance
      10 Ω / 100 Ω / 1 kΩ / 47 kΩ
    • Output Impedance
      50 Ω
    • Crosstalk
      –125 dB
    • Frequency Response
      2 Hz – 200 kHz (+0 dB / –3 dB)
    • Signal-to-Noise Ratio (Analog Preamplifier)
      120 dB
    • Dynamic Range (Digital Input, Fixed Output)
      125 dB
    • Total Harmonic Distortion + Noise
      0.0004%
    • Intermodulation Distortion
      0.0003%
    • Power Consumption (Idle)
      25 W
    • Power Consumption (Full Power Standby)
      22 W
    • Power Consumption (Low Power Standby)
      5 W
    • Shipping Weight
      41 lbs / 19 kg
    • Dimensions (width x height x depth)
      18.95 x 4.03 x 17.66 in
      48.1 x 10.2 x 44.9 cm
