MOON

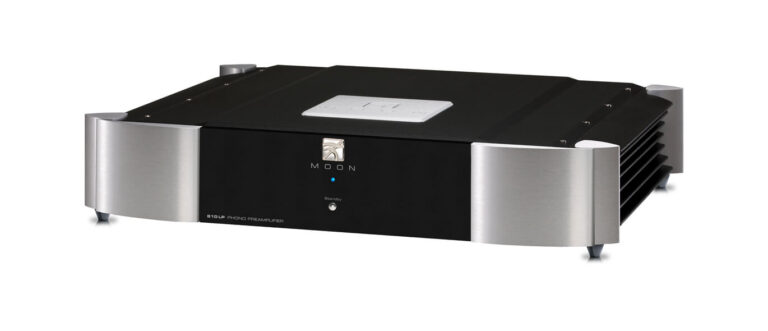

810LP – Phono Preamplifier

$16,000.00

A true purist design that is destined to become the new reference for analog playback. Astonishing analog reproduction combined with unsurpassed flexibility!

Contact Us To Purchase

The ultimate phono preamplifier

“Over time the soundstage got even deeper and incredibly wide, with the unerring ability to clearly place and delineate individual musicians within a fully fleshed-out acoustic.”
– Graham Abbott, SoundStage! Ultra

Suspension which eliminate microphonics for absolute best analog sound

“In terms of black backgrounds, top-to-bottom transient response, image definition, dynamic contrasts at both ends of the scale, and rhythm’n’pacing, the MOON 810LP was worth its considerable price. It was a model of rhythmic and spatial organization.”
– Michael Fremer, Stereophile

Incredible level of input optimization for any cartridge


Specifications

Design features

  • Power supply voltage regulation includes i 2 DCf (Independent Inductive DC Filtering); 1 inductor for each and every IC in the audio circuit’s signal path – 24 stages in all.

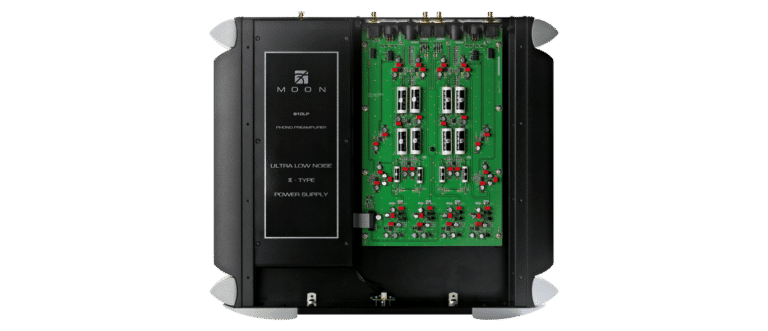

  • The dedicated audio circuit board is mounted on a 5-point gel-based floating suspension, derived from our M-Octave technology, originally developed for our reference 850P Preamplifier.
  • Fully compatible with 820S external power supply.
  • Customized parts include metallized polypropylene film capacitors with very tight tolerances of 1%.
  • Four-layer PCB tracings with dedicated ground and power planes using pure copper for low impedance characteristics.

Specifications

  • Inputs (XLR / RCA)
    1 pair / 1 pair
  • S/N Ratio (full scale @40dB gain)
    115dBr
  • S/N Ratio (full scale @70dB gain)
    95dBr
  • IEC Curve Effect
    -7dB @ 10Hz
  • Frequency response
    20Hz – 20kHz ±0.1dB
  • Crosstalk @ 1kHz
    -106dB
  • Output impedance
    50Ω
  • THD (20Hz – 20kHz)
    0.0008%
  • Intermodulation distortion
    0.001%
  • Input overload @40dB gain (XLR / RCA)
    200mV RMS / 100mV RMS
  • Input overload @70dB gain (XLR / RCA)
    5mV RMS / 2.5mV RMS
  • Shipping weight
    40 lb / 18 kg
  • Dimensions (width x height x depth)
    18.75 x 4.0 x 16.8 in
  • 47,6 x 10,2 x 42,7 cm
