Cambridge Audio

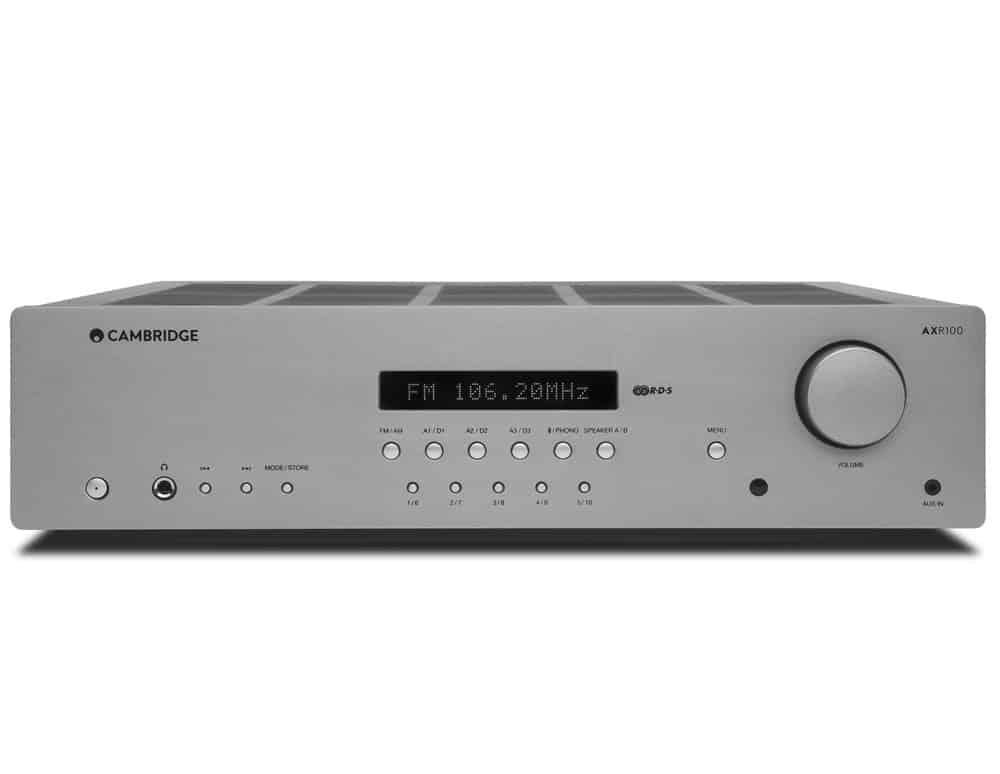

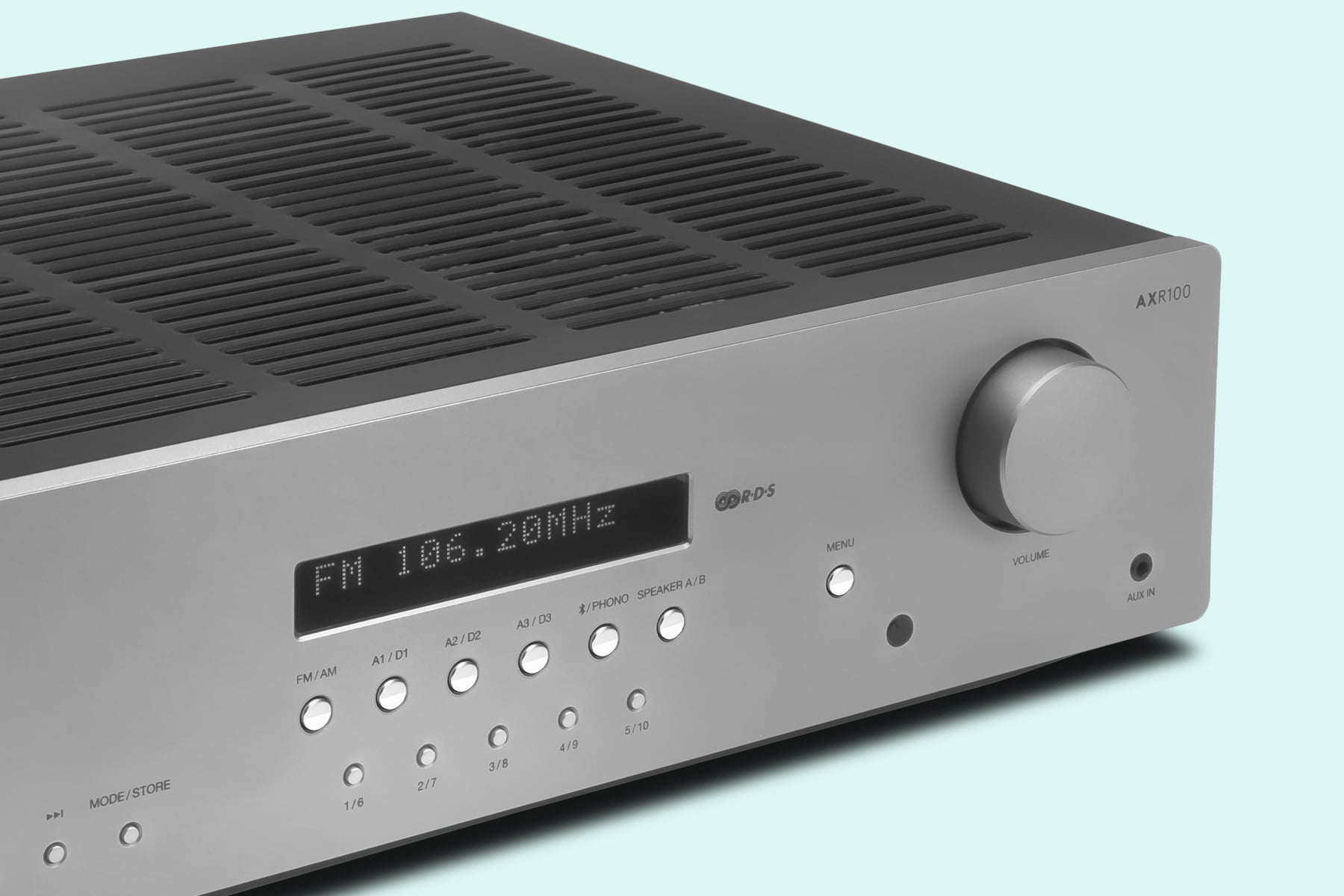

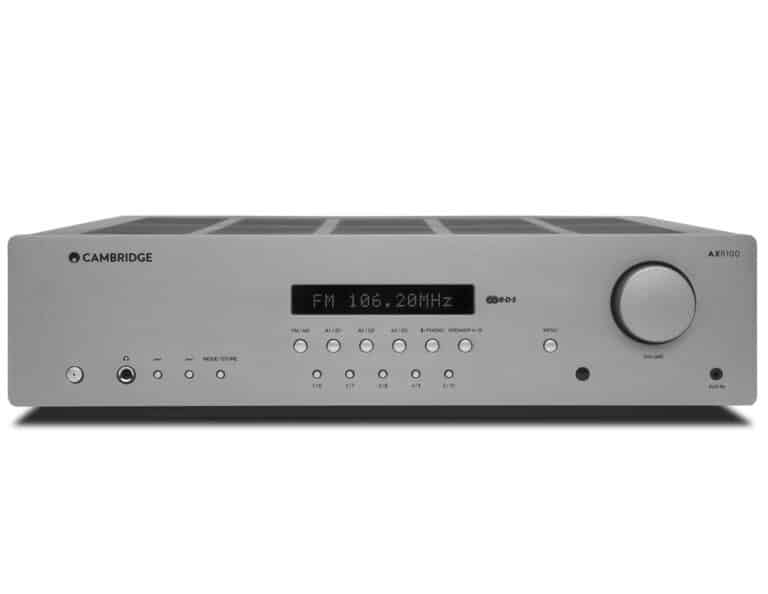

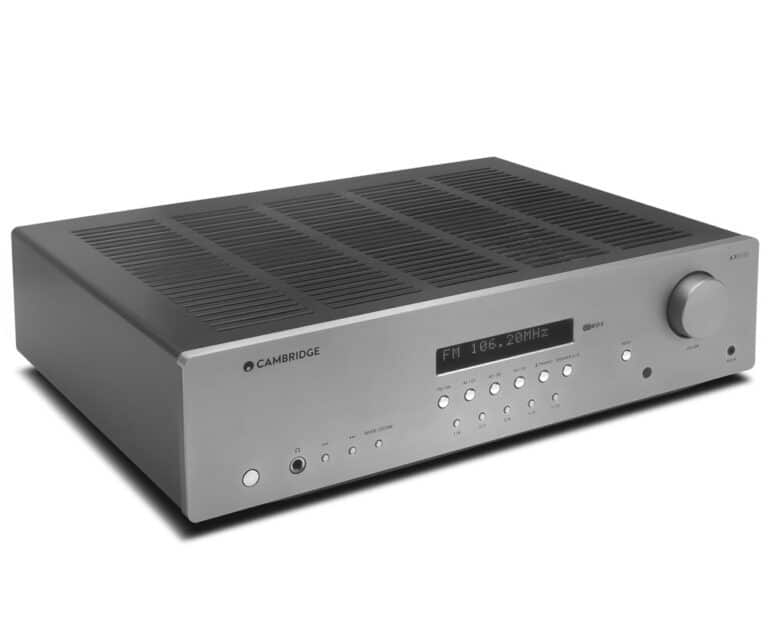

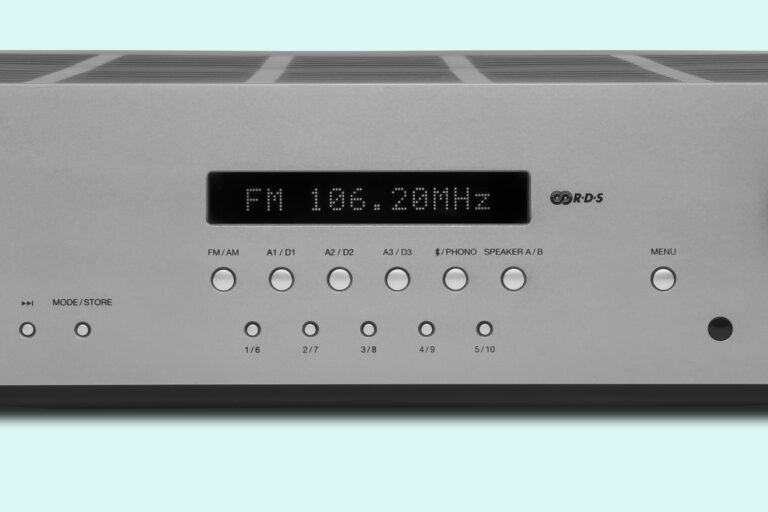

AXR100 – FM/AM Stereo Receiver

$899.00

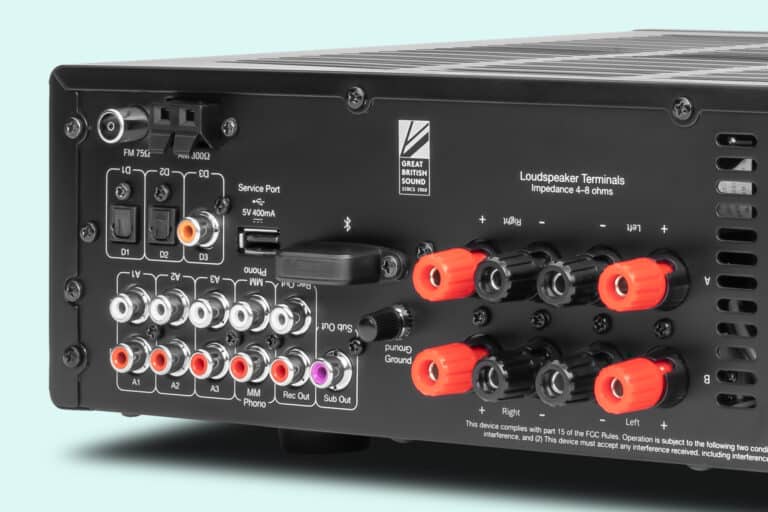

The most powerful amplifier in the AX range offers a massive 100 watts per channel, a dedicated subwoofer speaker output for improving bass and two sets of speaker outputs. It also features analogue inputs, digital inputs, a phono stage, an FM/AM receiver with RDS and a 3.5mm input. In addition, the built-in bluetooth receiver allows you stream your favourite music from your smartphone, tablet or PC.

Contact Us To Purchase
SKU: AXR100
Categories: , ,
Brand:
POWER OUTPUT

100 watts (into 8Ω)

THD (UNWEIGHTED)

<0.01% @ 1kHz, 80% of rated power <0.15% 20Hz – 20kHz, 80% of rated power

FREQUENCY RESPONSE (-1DB)

5Hz – 50kHz

S/N RATIO (REF 1W)

>82dB (unweighted)

INPUT IMPEDANCES

47k ohms

POWER AMP DAMPING FACTOR

>50

STANDBY POWER CONSUMPTION

<0.5W

MAX. POWER CONSUMPTION

550W

BASS/TREBLE CONTROLS

Shelving, ultimate boost/cut +/- 10dB @ 100Hz and 20kHz

SUBWOOFER OUTPUT

200Hz 2nd order L+R Level follows volume setting

DIGITAL INPUTS

PCM 16-24-bit S/P DIF Co-axial 32-192kHz TOSlink Optical 32-192kHz

DIMENSIONS

110 x 430 x 340mm (4.3 x 16.9 x 13.4”)

WEIGHT

8.1kg (17.8lbs)

BLUETOOTH

5.0 A2DP/AVRCP supporting SBC

TUNER BANDS

European AM (522-1629kHz) FM (87.5-108MHz) / US AM (530-1710kHz) FM (87.5-108MHz)

AERIAL INPUTS

FM 75 ohms, Coaxial. AM 300 ohms wire loop/ single wire

SIGNAL TO NOISE (TUNER)

60dB typical (FM)

DISTORTION (TUNER)

<0.4% @ 1kHz 50kHz deviation (FM mono) <0.6% @ 1kHz 50kHz deviation (FM stereo)
