Cinema Satellite Tweeter
Superior S-PAL™ Satin-Anodized Pure-Aluminum Domes with powerful neodymium magnets and ferro-fluid cooling for increased power handling! Highs are transparent with a superb sense of air and exceptional spaciousness.
Wire Mesh Tweeter Guard and WaveGuide™ technology ensure a smooth, wide panorama of audiophile-quality sound.
Cinema Satellite Bass/Midrange Driver
Paradigm’s Cinema speakers deliver fantastic performance through the clever use of technology. Mineral-filled, polypropylene cones; advanced motor structures and high-temperature voice coils easily identify Cinema speakers as uniquely Paradigm.
Cinema Sub Subwoofer
Superior 8˝ High-Excursion Driver made of a durable reinforced polymer composite that in concert with the superior suspension system and motor/magnet structure allow the cone to travel farther while maintaining effective control.
Built-In High-Current, Discrete Output Amplifier:
300 watts Dynamic Peak / 100 watts RMS Sustained.
Dual Ported Design for even and articulate response.
Amplifier Controls:
Auto On / Standby / Soft Clipping
Subwoofer Cut-Off Frequency
Sub / Sat Phase Switch – 0° or 180°
Partnered with the NRC
Paradigm is partnered with Canada’s world-renowned NRC in ongoing research to reveal the true nature of sound and human hearing. Findings influence design and performance specs, resulting in a uniquely realistic listening experience, backed by sound science.
Specifications are subject to change without notice.

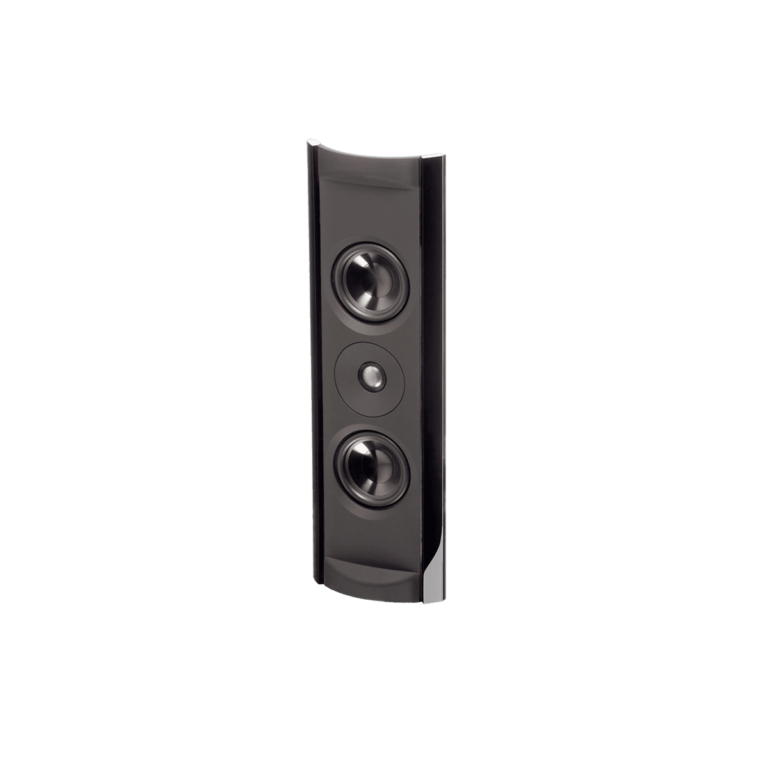

DESIGN | 3-driver, 2-way acoustic suspension LCR on-wall with option to sit center speaker on a table or shelf with supports included |
CROSSOVER | 2nd-order electro-acoustic at 1.8 kHz |
FREQUENCY RESPONSE ON-AXIS | ±2dB from 120 Hz – 20 kHz |
HIGH FREQUENCY DRIVER | Three 25-mm (1 in) S-PAL™ dome tweeters, ferro-fluid damped and cooled |
MID/BASS FREQUENCY DRIVER | Two 102-mm (3-1/2 in) mineral-filled polypropylene cones, 25-mm (1 in) high-temperature voice coils, advanced motor structures with oversized ferrite magnets |
LOW FREQUENCY EXTENSION | 80 Hz (DIN) |
SENSITIVITY ROOM / ANECHOIC | 90 dB / 87 dB |
FREQUENCY RESPONSE 30° OFF-AXIS | ±2dB from 120 Hz – 15 kHz |
SUITABLE AMPLIFIER POWER RANGE | 15 – 150 watts |
MAXIMUM INPUT POWER | 70 watts |
IMPEDANCE | Compatible with 8 ohms |
DIMENSIONS HXWXD | 19.875″ × 6.3125″ × 4.0625″ (50.5cm × 16.0cm × 10.3cm) |
WEIGHT | 8.3 lbs. (3.7 kg) |
FINISHES | Black Gloss |
