DB1D
Bass at its best
A smarter approach to bass
DB1D’s 2000 Watt amplifier and 12-inch drivers are controlled by intelligent processing for best-in-class bass delivery.
A question of balance
The back-to-back (opposed) drivers cancel out cabinet resonances, ensuring all that power is used to create room-shaking bass, not wasted vibrations.
The digital advantage
Digital amplification is cool-running and energy efficient, even when working hard, while Dynamic EQ and Room EQ ensure a precise sound for music and movies.
Take control
By placing control in the palm of your hand, our subwoofer app not only makes our DB Series subwoofers a snap to set up, it also helps maximize your sound quality.
Technical specifications
Model
DB1D
Description
DB Series Subwoofer
Technical features
2000w Class D Hypex amplifier
2 x 300mm (12in) Aerofoil-cone drive units in a balanced configuration
Digital preamplifier with Dynamic EQ
App-based set-up and BT-LE control
Drive units
2 x 300mm (12in) Aerofoil-cone drive units in a balanced configuration
Frequency range (-6dB)
8.5Hz – 500Hz
Frequency Response -3dB (centered on level at 100Hz)
10Hz – 350 Hz
Max Power output
2000W
Inputs
2 x XLR
2 x RCA
2 x 3.5mm 12V trigger
RS-232 – 9-pin D connector
Dimensions
Height: 460mm (18.1in)
Width: 429mm (16.9in)
Depth: 410mm (16.1in)
Net weight
43kg
Cabinet finish (Grille finish)
Gloss Black (With black grilles)

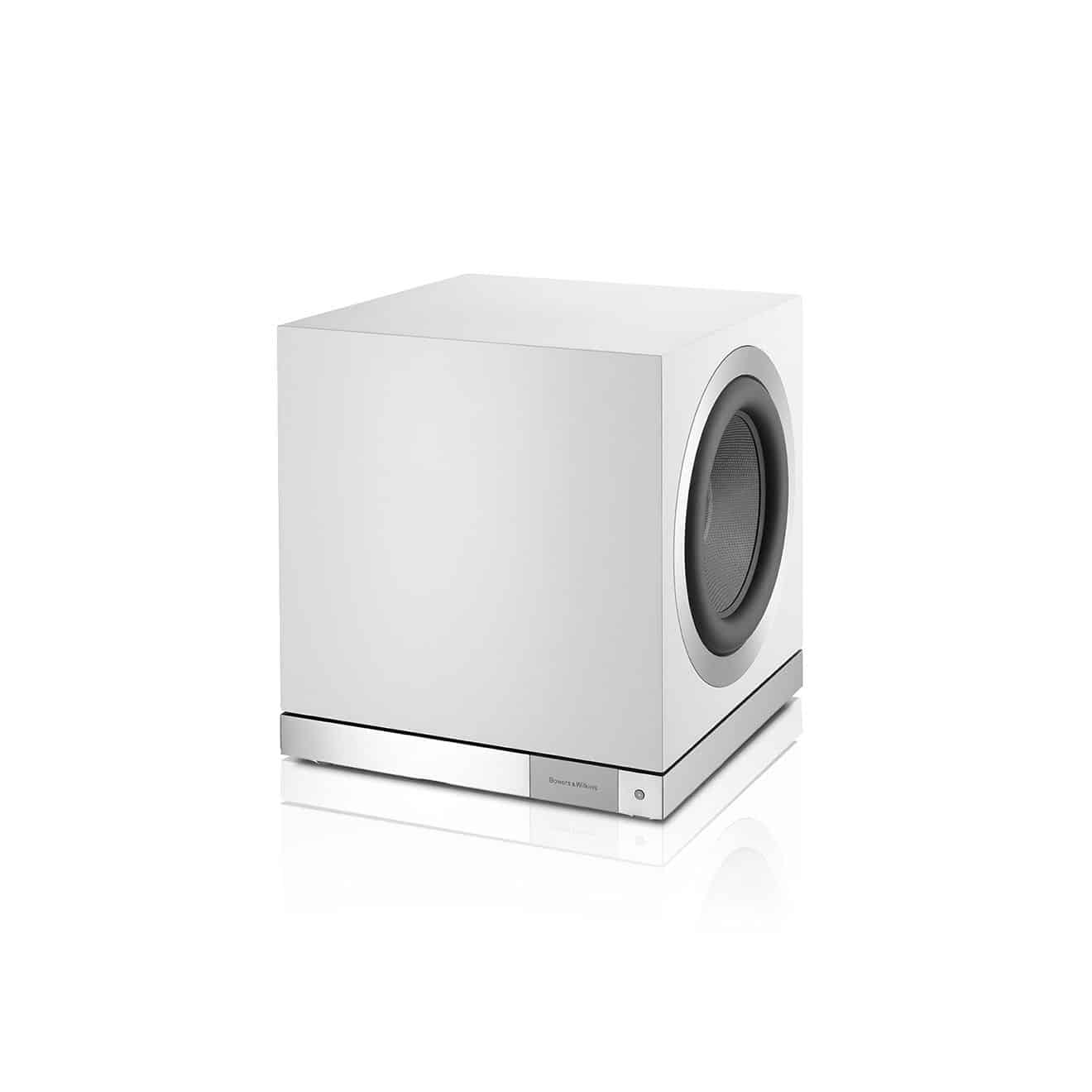

Satin White (With grey grilles)

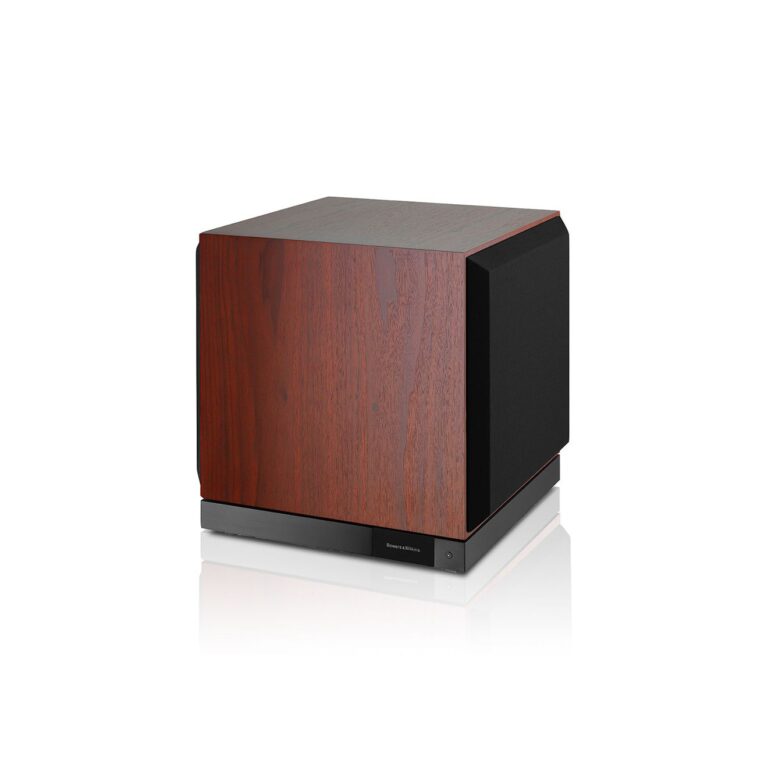

Rosenut (With black grilles)
