Description

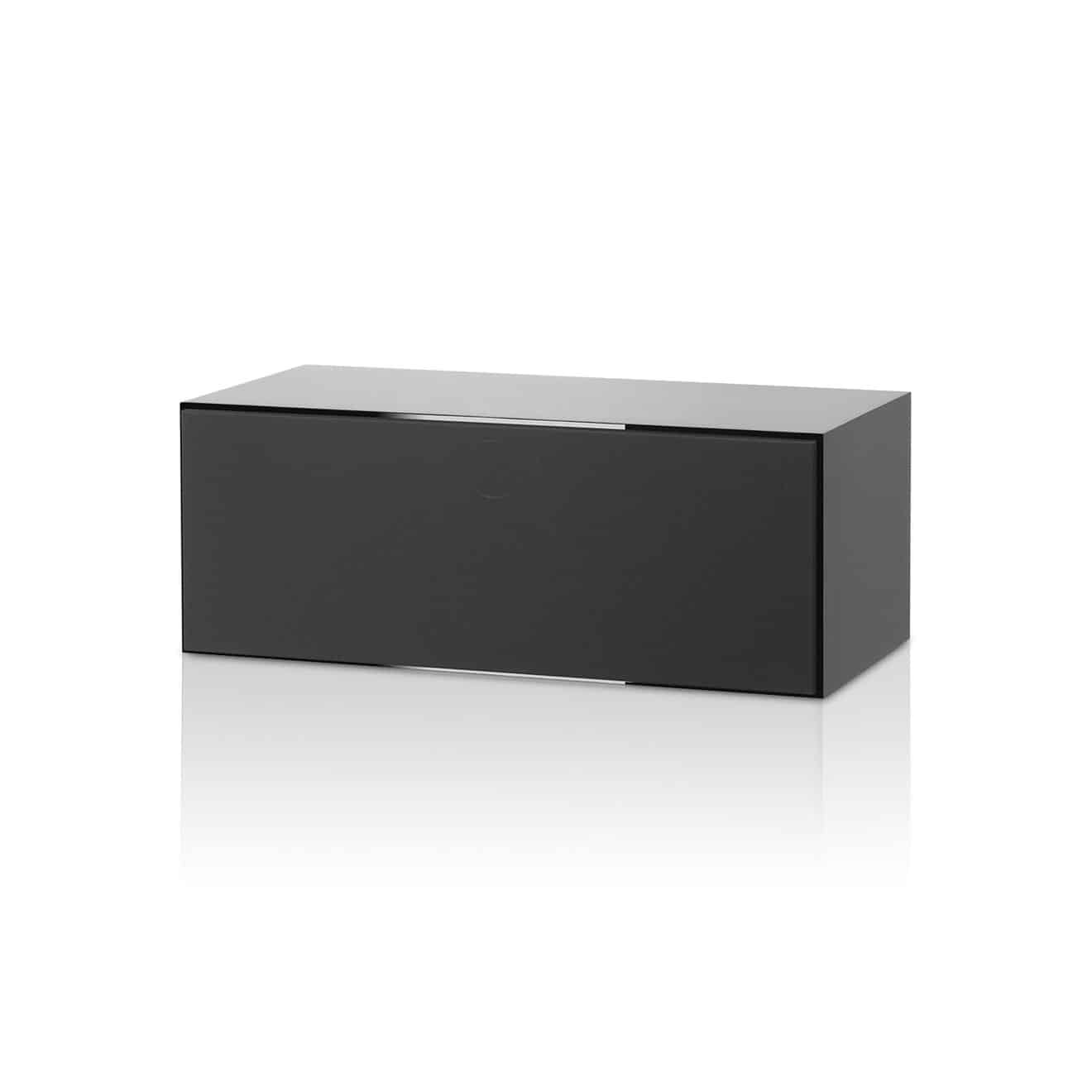

HTM71 S2
Hear more emotion
Uncompromising vocal performance
Designed to be paired with larger speakers in the range, this three-way center channel speaker delivers unprecedented power and transparency, for totally convincing voice reproduction.
Sharper detail
Carbon Dome tweeters are purpose-built for the 700 Series. Delivering a dramatic improvement on the aluminum double dome tweeter, they raise the breakup threshold to 47kHz, for pinpoint imaging accuracy and detail.
Truly amazing sound
Voices and instruments are delivered with purity and precision, thanks to the smooth, accurate Continuum™ cone midrange driver.
A triumph of science
Developed using advanced computer modeling techniques, the Aerofoil™ Profile bass cone has variable thickness, providing stiffness and rigidity where it’s needed most. The result: deep and dynamic bass.
Technical specifications
Model
HTM71 S2
Description
3-way vented-box system
Features
Decoupled Carbon Dome tweeter
Continuum™ cone FST midrange
Aerofoil™ Profile bass cones
Flowport™
Drive units
1x ø25mm (1 in) Decoupled Carbon Dome high-frequency
1x ø100mm (4 in) Continuum cone FST midrange
2x ø165mm (6.5 in) Aerofoil Profile bass
Frequency range
-6dB at 45Hz and 33kHz
Frequency response
50Hz – 28kHz ±3dB
Sensitivity
89dB spl (2.83Vrms, 1m)
Harmonic distortion
2nd and 3rd harmonics (90dB, 1m)
<1% 90Hz – 22kHz
<0.5% 120Hz – 20kHz
Nominal impedance
8Ω (minimum 3.0Ω)
Recommended amplifier power
30W – 100W into 8Ω on unclipped programme
Dimensions
Height: 225mm (8.6 in)
Width: 590mm (23.2 in)
Depth: 285mm (11.2 in) cabinet only
301mm (11.9 in) including grille and terminals
Net weight
18.3kg (39.7 lb)
Cabinet finishes:

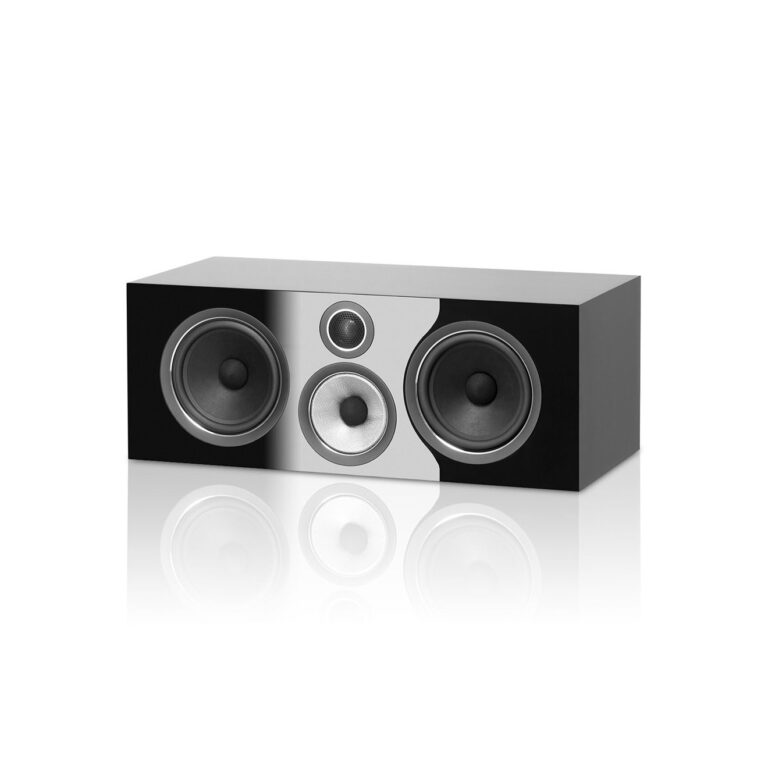

Gloss Black

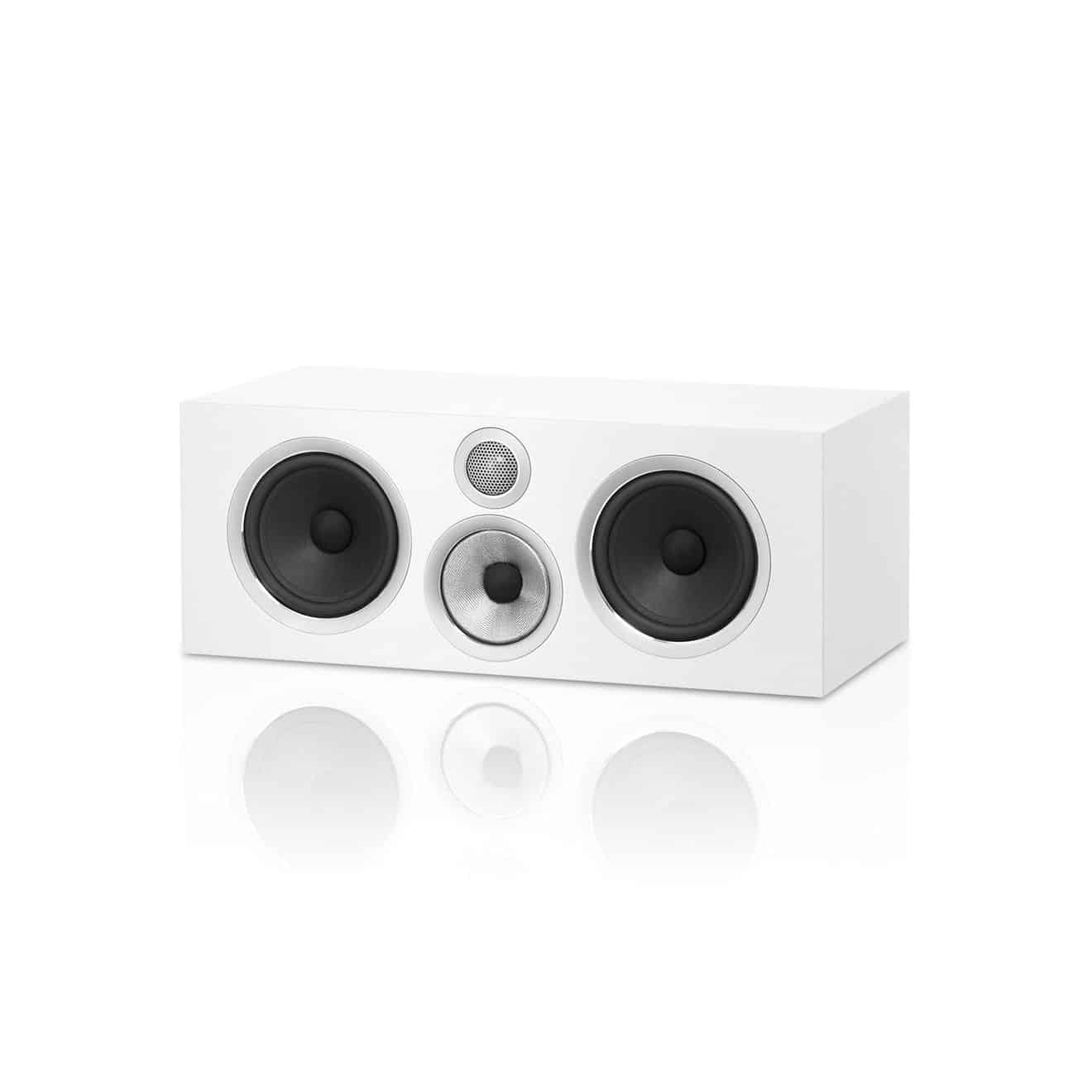

Satin White

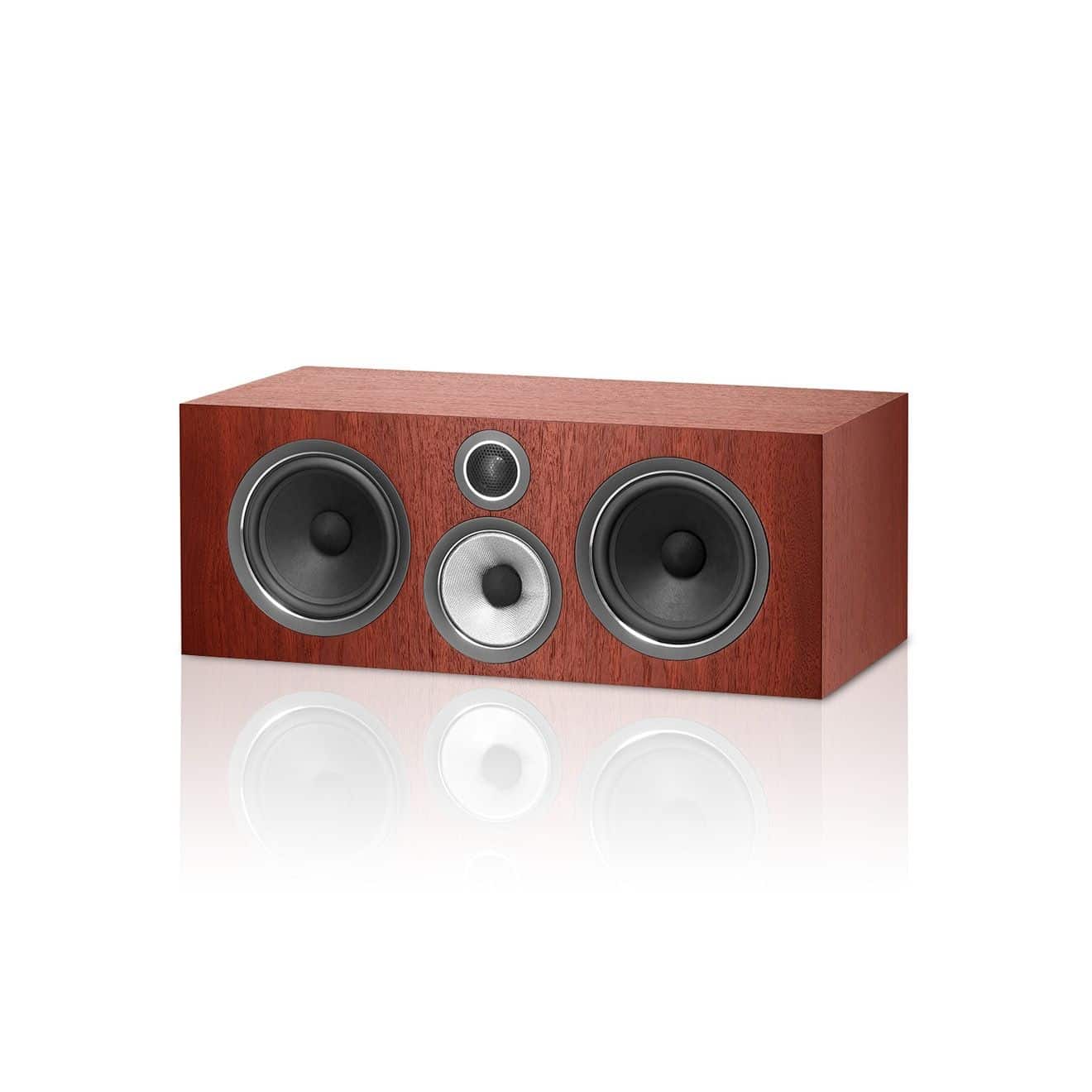

Rosenut
Grille finishes:

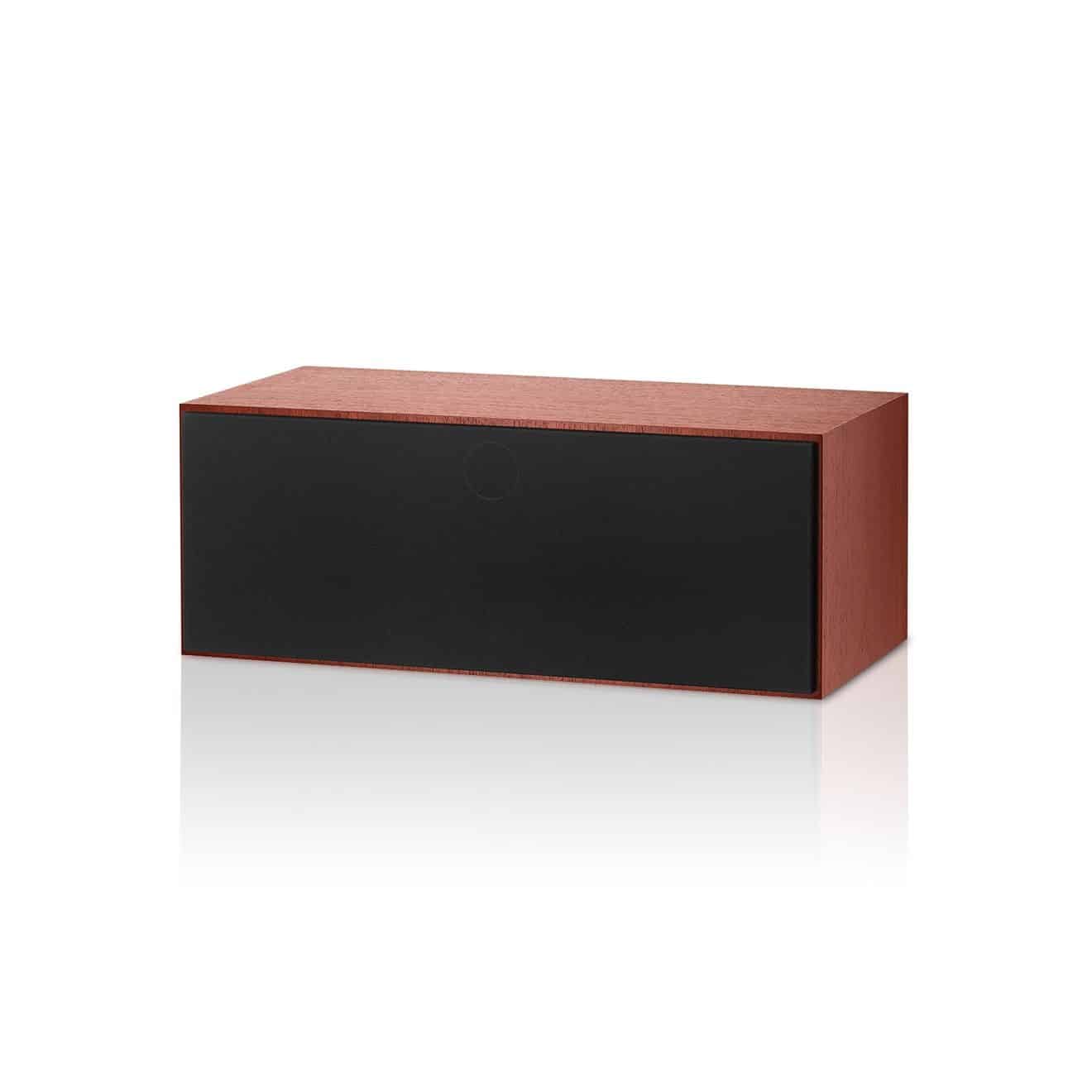

Black

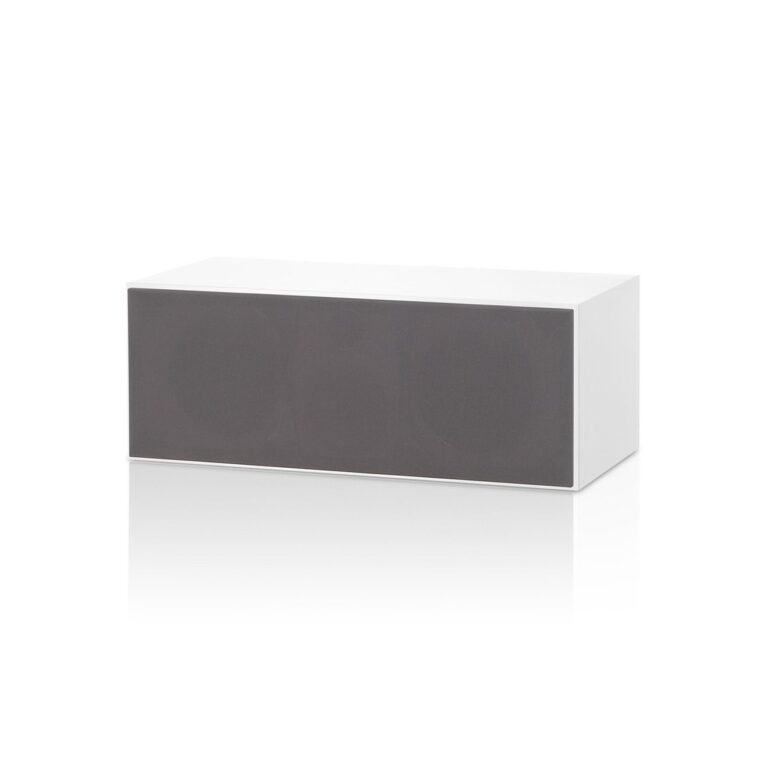

Grey (Satin White only)
