Description

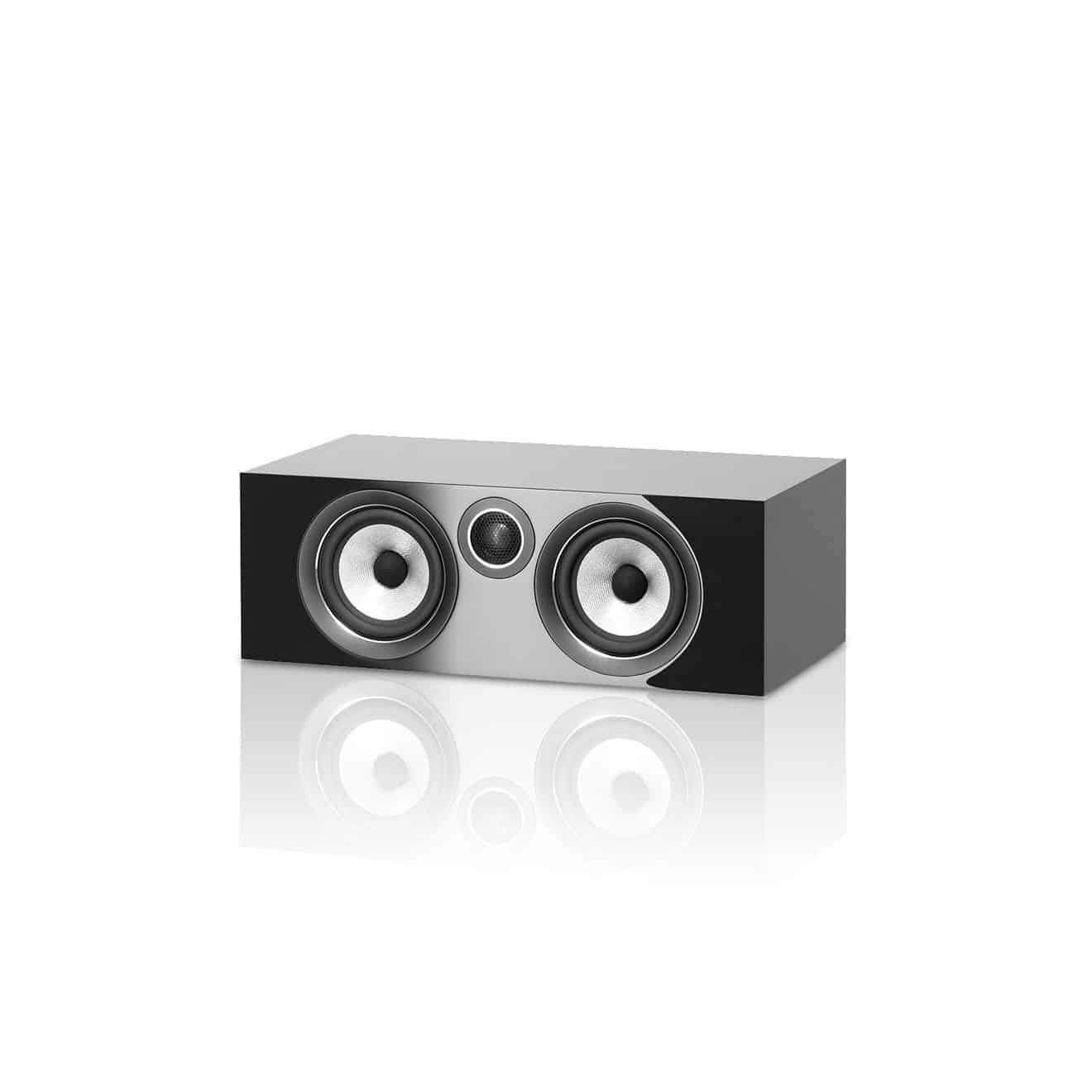

HTM72 S2
Compact center, crisp dialogue
A premium choice for smaller home theaters
The HTM72 S2 is a great choice for home theaters in relatively small spaces. Combine it with the more compact 700 Series speakers, such as the 706 S2 or the 704 S2.
Truly amazing sound
Voices and instruments are delivered with purity and precision, thanks to the smooth, accurate Continuum™ cone midrange driver.
Technical specifications
Model
HTM72 S2
Description
2-way vented-box system
Features
Decoupled Carbon Dome tweeter
Continuum™ cone bass / midrange
Flowport™
Drive units
1x ø25mm (1 in) Decoupled Carbon Dome high-frequency
2x ø130mm (5 in) Continuum cone bass / midrange
Frequency range
-6dB at 48Hz and 33kHz
Frequency response
70Hz – 28kHz ±3dB
Sensitivity
87dB spl (2.83Vrms, 1m)
Harmonic distortion
2nd and 3rd harmonics (90dB, 1m)
<1% 100Hz – 22kHz
<0.5% 200Hz – 22kHz
Nominal impedance
8Ω (minimum 4.3Ω)
Recommended amplifier power
30W – 120W into 8Ω on unclipped programme
Dimensions
Height: 166.5mm (6.6 in)
Width: 480mm (18.9 in)
Depth: 260mm (10.2 in) cabinet only
275mm (10.8 in) including grille and terminals
Net weight
9.11kg (20.1 lb)
Cabinet finishes:
Gloss Black
Satin White
Rosenut
Grille finishes:
Black
Grey (Satin White only)
