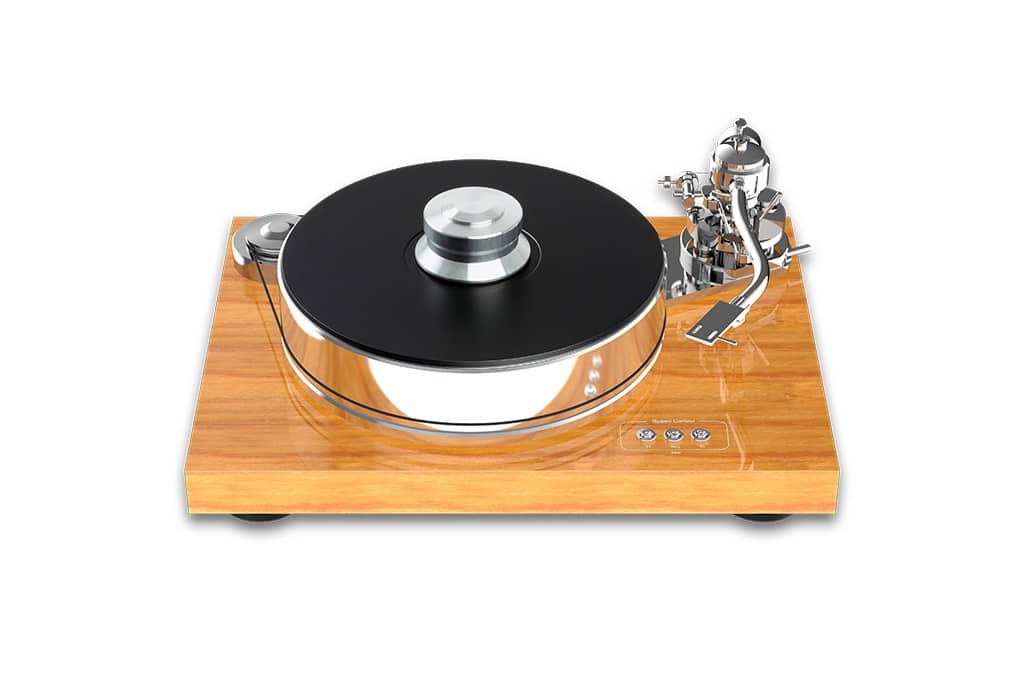

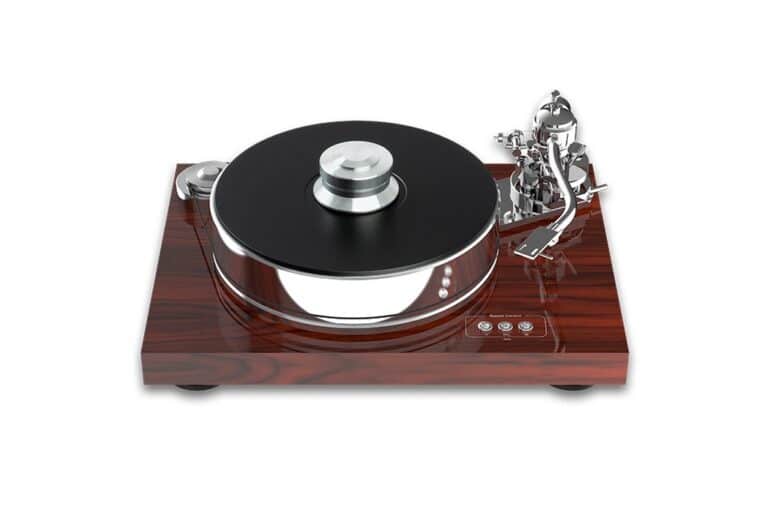

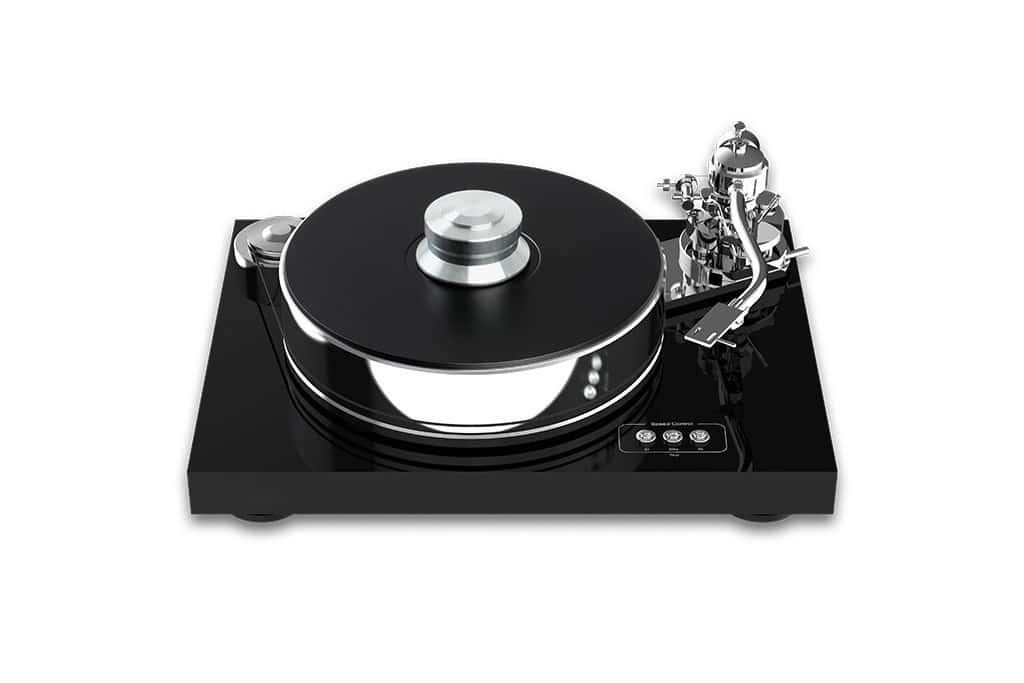

High-end turntable with 10” single-pivot tonearm
Audiophile beauty for vinyl lovers!
Signature 10 is a non-compromise high-end turntable/ arm configuration with a sophisticated concept combining mass-loaded with floating turntable principles. Magnetic feet and TPE-pillows decouple the resonance-free metal granulate filled MDF-chassis from surface. The subsequently benefits from a wonderfully resonance-free, heavy platter that runs ultra-silently on an inverted ceramic ball bearing with magnetic suspension, also TPE damped. The new 10” single-pivot tonearm is a genuine Pro-Ject design with SME headshell. With its wide range of adjustment possibilities and the choice of adequate counterweights, nearly all cartridges can be mounted. Signature 10 is an audiophile marvel, that represents our championship in precision engineering and our deep love for music!
Pro-Ject Audio Systems offers their highend turntables with premium 5pin>RCA unbalanced arm cable or – by request – with premium balanced 5pin>XLR connection to Pro-Ject Phono Box RS preamplifier. Phono Box RS offers balanced phono inputs, that guarantees superior results in highend vinyl reproduction with a balanced signal source.
NOTE: The signal source and the receiving device have to be equipped with balanced connections. Transmission of audio signals in a balanced mode reduce the influence of interference due to external stray electric fields significantly.
In the box:
- Signature 10
- Connect it 5P-CC RCA Cable (Upgrade option: 5P-XLR)
- Adapter for 7“ singles
- Record puck
- Counterweights for 4,5-20 g cartridges
- Power supply, allen key, spirit level, gloves
Technical Specifications
Speed | 33, 45 (electronic speed change) |
Motor control system | Precision generator |
Platter | 10.4 kg, TPE damped |
Platter puck | 405 g |
Main bearing | Ceramic (ball/plate), magnetically decoupled |
Tonearm | 10”; single-pivot, alu (SME headshell) |
Effective arm length | 254.8 mm |
Overhang | 16 mm |
Effective arm mass | 15.5 g |
Suitable cartridge mass | 4 – 10 g, several counterweights included |
Tonearm cable included | Pro-Ject Connect it 5P-CC |
Power supply | 16 Volts DC/1600 mA included |
Standby power consumption | < 1 Watt |
Dimensions | 475 x 195 x 354mm (WxHxD) |
Weight | 23 kg net |
