Vicoustic

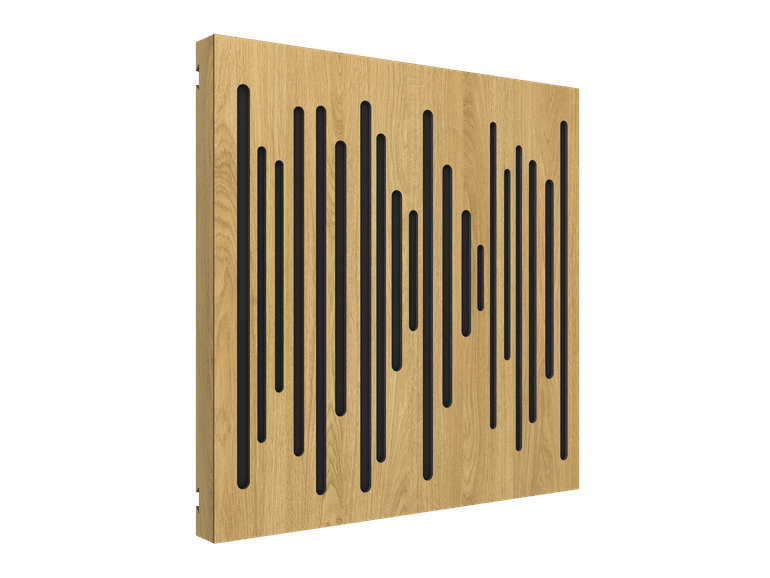

VicPattern Ultra Wavewood

The updated and improved version of Vicoustic’s Flagship

Dimensions
a) 595 x 595 x 50 mm / 23.4’’ x 23.4’’ x 2’’

Contact Us To Purchase
SKU: 19912d0ac140
Category:
Brand:

Absorption and Reflection, all in one

The VicPattern Ultra Wavewood panel is one of the leading solutions that Vicoustic offers in terms of the Absorption and Reflection Control System*. This is ideal to those who are striving for a balanced sound that can also, simultaneously, control any noise energy in a room, and still manage and create a living and bright sound in a particular setting. Made with melamine, a highly durable material, the VicPattern Ultra Wavewood panel is available in 8 different wood and metallic colors. Alongside this, the VicPattern Ultra Wavewood also uses our specially engineered PET wool, a sustainable material that maximizes the acoustic absorbing capabilities of the panel and contributes to Vicoustic’s aim to produce greener and more environmentally friendly products. This product can also be installed on the ceiling with the VicFix J Profile 2m, sold separately. For corner installation, use the VicFix Corner, sold separately.

Fire Rated Optional version

VicPattern has a FR version, which stands for Fire Rated, meaning that it is made with Fire Rated Dark Red MDF with improved fire behaviour coupled to a PET plate classified according to flammability. With an autonomous fixation system, it doesn’t require the use of glue. Meeting the fire and flammability classifications of raw materials, produced and classified in Europe, means that VicPattern FR versions are recommended for application in sectors with stringent regulations regarding fire behaviour of materials used. It’s an optimum material for a public building.

Features:

– Construction with premium MDF and anti-scratch melamine.

– Polyurethane free

– Recyclable

– Reinforced packing

– Finish also on the sides

– Removable filling allows to integrate light and sound

– Professional fixation systems

*ARCS – Absorption and Reflection Control System. The ARCS system is Vicoustic’s research model and has been developed to assist in acoustic absorption and diffusion combination solutions. This product incorporates the research undertaken by our technicians to achieve the optimal balance between the absorption area and the reflecting surface.

  • Main Info

    • Dimensions: 595x595x50mm

    • Raw Material: VicPET Wool, MDF and Melamine

    • Scratch Resistance: Yes

    • Washable: No

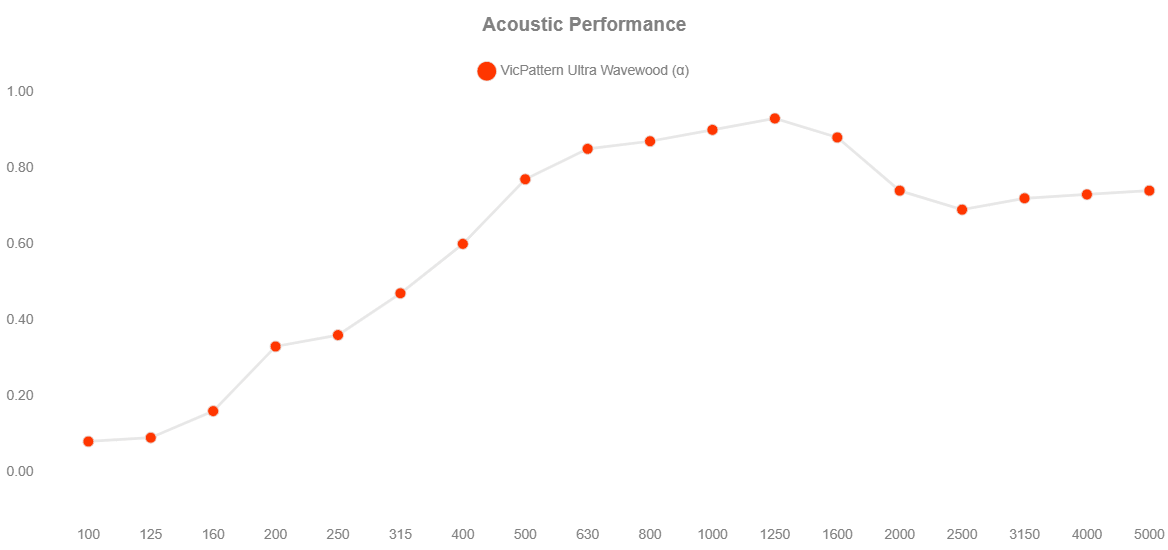

  • Performance

    • Functionality: Absorption and Diffusion

    • Absorption Frequency Range: Medium and High Frequencies

    • NRC: 0.70

  • Fire Rate

    • Europe: TBA

    • USA: TBA

    • Canada: TBA

  • Packaging Information

    • Units/Box: 3

    • Box Dimensions: 665 x 675 x 195mm

    • Box Gross Weight: 14kg

  • Installation

    • Accessories: VicFix J Profile (included), VicFix J Profile 2m (the profiles are provided without drilled holes), VicFix Corner
