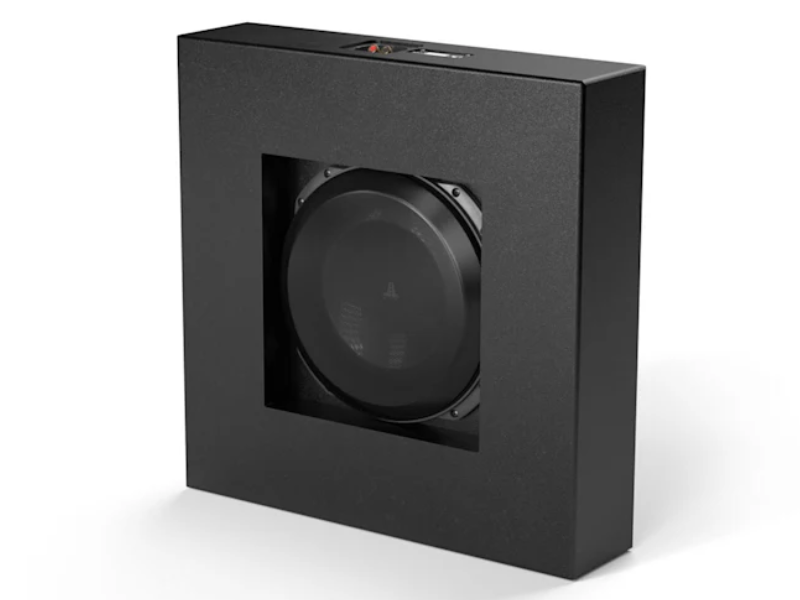

JL Audio Single 13.5" Fathom Custom Theater Subwoofer with 5.75" Deep Enclosure - CTS-113-ST575-13TW5H
BIG BASS FOR ANY SPACE
Born from our revolutionary Fathom in-wall subwoofer system, these subwoofers are designed to deliver uncompromising bass performance for virtually any custom-integrated application.
SINGLE OR DUAL 13.5-INCH SUBWOOFER MODELS
RANGE OF ENCLOSURE SHAPES
UP TO 2000 WATTS OF POWER HANDLING
A PERFECT FIT

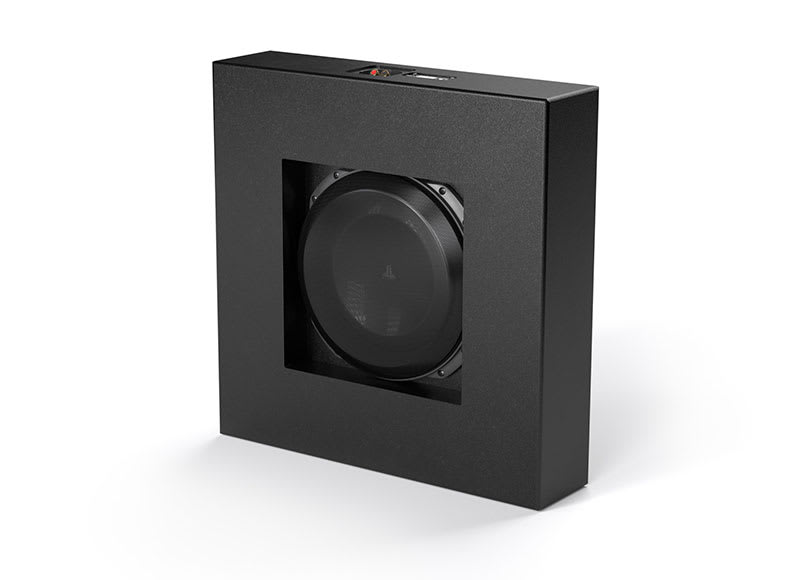

Centered on a groundbreaking 13.5-inch thin-line driver, all CTS enclosures are critically constructed with extensive internal bracing aimed at improving rigidity. Offered in five variants, each sealed enclosure features MDF construction with reinforced areas to facilitate direct-to-frame mounting.
POWERFUL SOUND

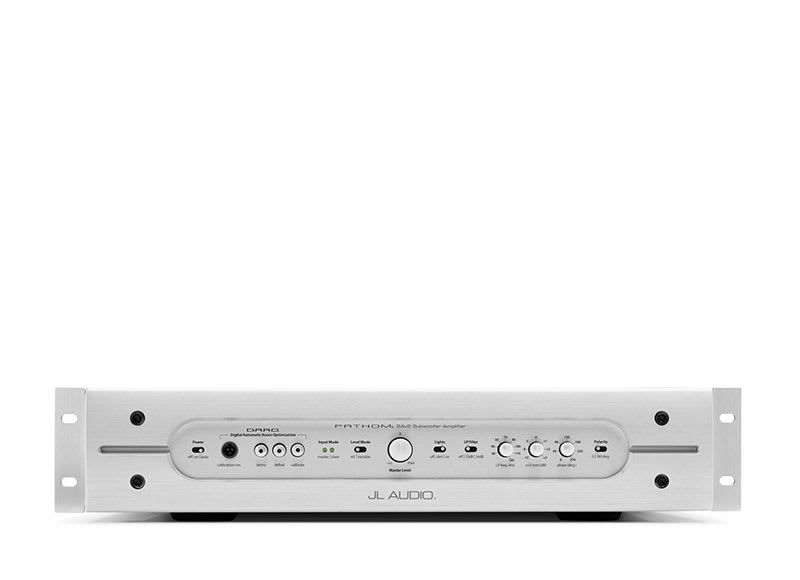

These subwoofer systems are driven by rack-mountable, purpose-tuned amplifiers, capable of delivering up to 2000 watts of clean power. Our powerful DSP engine is also on hand, including our exclusive Digital Automatic Room Optimization (D.A.R.O.) system to ensure a smooth response, even in challenging rooms.
FATHOM CTS HOME AUDIO SUBS TECHNOLOGIES
D.A.R.O. TECHNOLOGY
Exclusive D.A.R.O. technology from JL Audio uses a powerful onboard DSP to automatically optimize the subwoofer’s in-room frequency response. This leads to a superb listening experience, no matter where the subwoofer is placed.
DMA-OPTIMIZED WOOFER
Proprietary motor, suspension and cone modeling systems are used to achieve long, linear excursion capabilities with low distortion and powerful sound output.
FCAM™ TECHNOLOGY
This “floating cone attach method” of bonding the surround/cone assembly to the voice coil former/spider structure ensures proper surround geometry in the assembled speaker for better excursion control and dynamic voice coil alignment.
CONCENTRIC TUBE SUSPENSION™ DESIGN
This unique design allows the motor system to be placed higher in the cone body — further compressing depth while still permitting excellent mechanical excursion.
HIGH-DAMPING FEEDBACK CIRCUITRY
This proprietary, discrete control circuit design allows our Class-D switching amplifiers to maintain excellent damping factors for improved transient behavior and fidelity.
| General | |
|---|---|
| Sizes | 13.5"/Dual 13.5" (driver) 5.25"/5.75"/9"/14" (enclosure depth) |
| Physical dimensions (Height) | 13.5" (5.25" depth): 58.75" (1,492 mm) 13.5" (5.75" depth): 23.94" (608 mm) 13.5" (9" depth): 30.69" (780 mm) Dual 13.5" (9" depth): 59.20" (1,504 mm) 13.5" (14" depth): 19.56" (497 mm) |
| Physical dimensions (Width) | 13.5" (5.25" depth): 14" (356 mm) 13.5" (5.75" depth): 23.94" (608 mm) 13.5" (9" depth): 14" (356 mm) Dual 13.5" (9" depth): 14" (356 mm) 13.5" (14" depth): 14" (356 mm) |
| Physical dimensions (Depth) | 13.5" (5.25" depth): 5.25" (133 mm) 13.5" (5.75" depth): 5.75" (146 mm) 13.5" (9" depth): 9" (229 mm) Dual 13.5" (9" depth): 9" (229 mm) 13.5" (14" depth): 14" (356 mm) |
| Continuous power handling (RMS) | 13.5": 1000 W Dual 13.5": 2000 W |
| Frequency response (Anechoic) | 28 Hz-117 Hz (± 1.5 dB) |
| Frequency response (Anechoic, -3dB) | 25 Hz/123 Hz |
| Frequency response (Anechoic, -10dB) | 22 Hz/150 Hz |
| Enclosure type | Sealed |
| Enclosure finish | Black texture-coated |
| Grille(s) included | Yes |
| Warranty | 3 years |
| Parameters | |
| Effective piston area (SD) | 13.5": 98.26 in² (0.0634 m²) Dual 13.5": 196.51 in² (0.1268 m²) |
| Effective displacement | 13.5": 147.3 cu in (2.41 L) Dual 13.5": 294.6 cu in (4.82 L) |
| In the box | |
| In the Box | Enclosure with 13.5" subwoofer(s) (installed) Adhesive foam gasket CTS-113-MD900-13TW5H, CTS-113-TT525-13TW5H and CTS-113-ST575-13TW5H also include: Four L-brackets Forty 1" pan head screws |
