JL Audio 13.5" Single Fathom Enclosed In-wall Subwoofer System with SAv2 Amplifier - IWSv2-SYS-113
REMARKABLE BASS FROM CONCEALED SPACES
Engineered by the same minds behind our reference-grade Fathom and Gotham® powered subwoofers, this in-wall system centers on a pair of groundbreaking thin-line drivers.
SINGLE OR DUAL 13.5-INCH SUBWOOFER MODELS
FLOATING MOUNT DESIGN MINIMIZES WALL EXCITATION
IN-WALL DESIGN
UP TO 2000 WATTS OF POWER
INSTALLS IN STANDARD TWO-BY-FOUR AND TWO-BY-SIX STUD BAYS
A PERFECT FIT
This system can fit a variety of two-by-four and two-by-six wall studs.
POWERFUL SOUND
This system is driven by a rack-mountable, purpose-tuned amplifier, capable of delivering up to 1 kW of clean power. It’s armed with serious processing features, including our acclaimed Digital Automatic Room Optimization (D.A.R.O.) system.

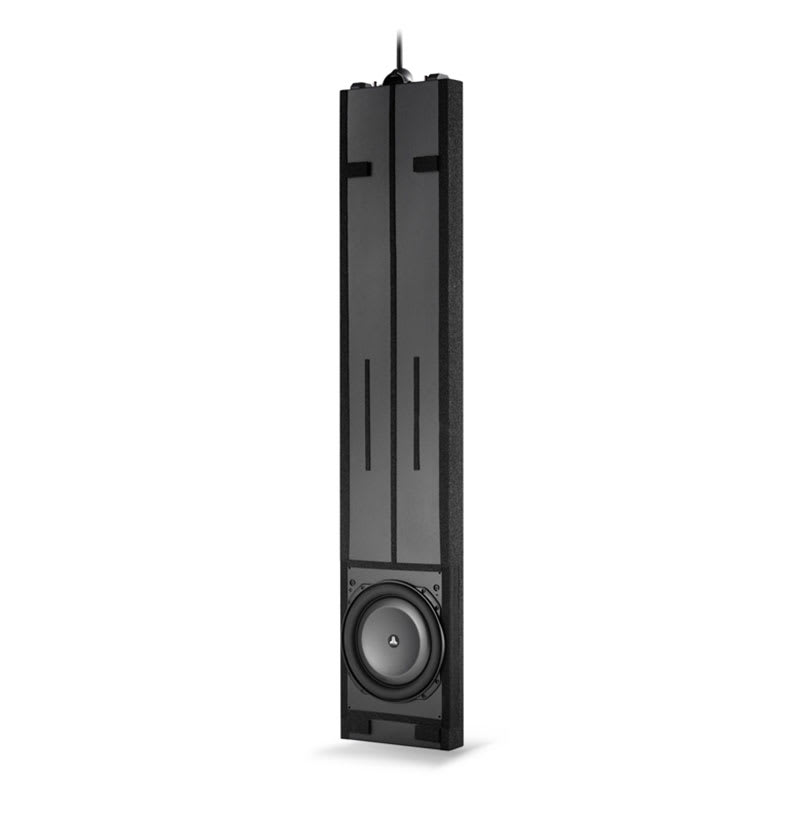

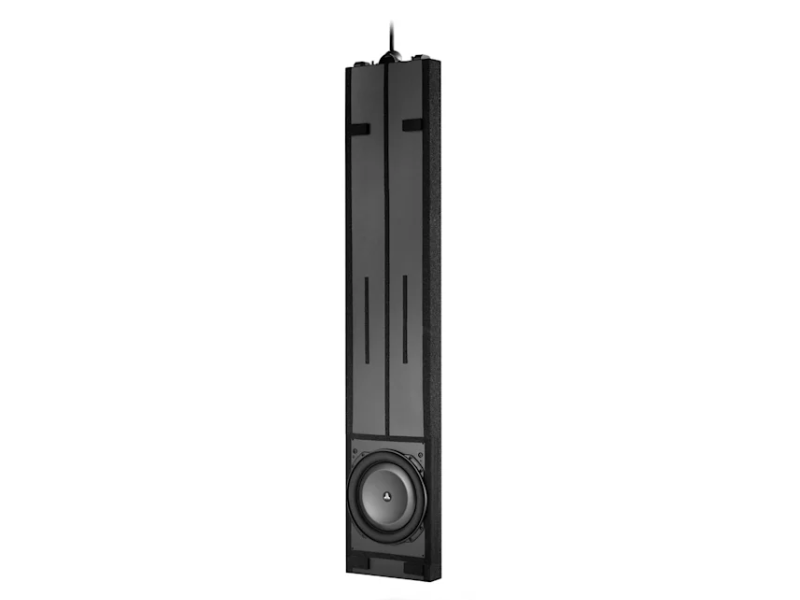

HANDCRAFTED ENCLOSURE
With its patented, floating mount design that minimizes wall excitation, this enclosure utilizes extensive architectural features aimed at improving rigidity while keeping a very low profile and minimal wall thickness. This system is available with single or dual subwoofer enclosures to fit two-by-four or two-by-six stud bays.

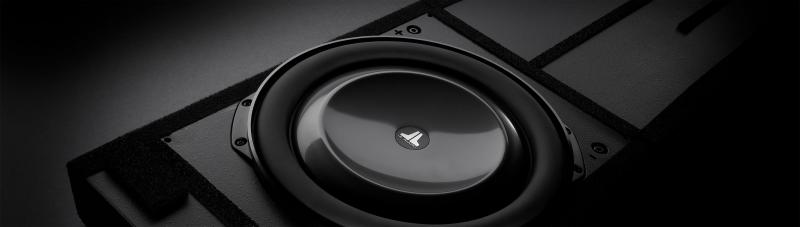

LOW-PROFILE DRIVER
The groundbreaking TW5v2 driver is capable of outstanding cone excursion, from a driver with minimal overall depth. It is the key to our unbeatable 13.5-inch Fathom in-wall subwoofer.

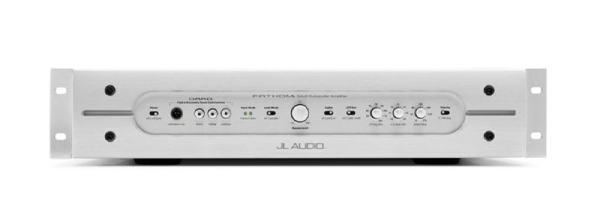

AMPLIFIER WITH D.A.R.O. TECHNOLOGY
Featuring our exclusive D.A.R.O. system and a proprietary Class-D design, the Fathom® Sav2 amplifier can deliver powerful output in almost any home theater or home audio system with up to 2000 watts of continuous power.

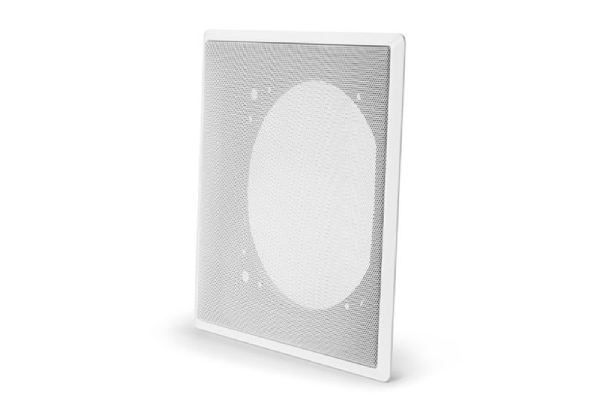

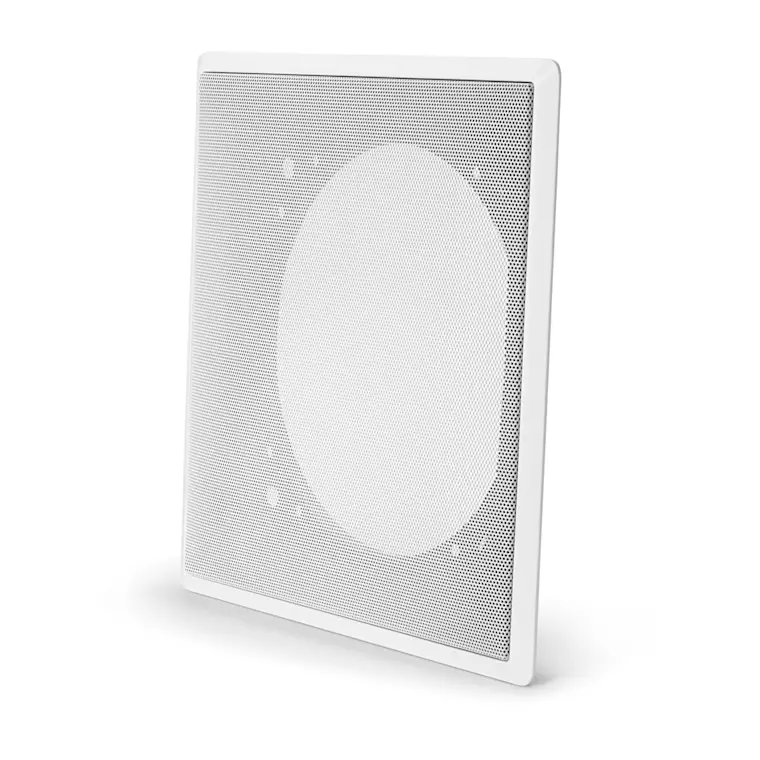

PAINTABLE GRILLE
A paintable, fine steel-mesh grille, also designed to control vibration, is included with each enclosure.
FATHOM IWSv2 TECHNOLOGIES
D.A.R.O. TECHNOLOGY
Exclusive D.A.R.O. technology from JL Audio uses a powerful onboard DSP to automatically optimize the subwoofer’s in-room frequency response. This leads to a superb listening experience, no matter where the subwoofer is placed.
DMA-OPTIMIZED WOOFER
Proprietary motor, suspension and cone modeling systems are used to achieve long, linear excursion capabilities with low distortion and powerful sound output.
FCAM™ TECHNOLOGY
This “floating cone attach method” of bonding the surround/cone assembly to the voice coil former/spider structure ensures proper surround geometry in the assembled speaker for better excursion control and dynamic voice coil alignment.
CONCENTRIC TUBE SUSPENSION™ DESIGN
This unique design allows the motor system to be placed higher in the cone body — further compressing depth while still permitting excellent mechanical excursion.
HIGH-DAMPING FEEDBACK CIRCUITRY
This proprietary, discrete control circuit design allows our Class-D switching amplifiers to maintain excellent damping factors for improved transient behavior and fidelity.
TAB-EAR FRAME DESIGN
This design reduces the driver’s overall dimensions, allowing it to be mounted in a space similar to that required by the next smaller round woofer frame.
| General | |
|---|---|
| Sizes | 13.5"/Dual 13.5" |
| Light modes | off, on or dim |
| Amplifier Power (RMS) | 13.5": 1000 W short-term Dual 13.5": 2000 W short-term |
| Frequency response (Anechoic) | 26 Hz-101 Hz (± 1.5 dB) |
| Frequency response (Anechoic, -3dB) | 25 Hz/112 Hz |
| Frequency response (Anechoic, -10dB) | 22 Hz/150 Hz |
| Enclosure type | Sealed |
| Enclosure finish | Black texture-coated |
| Grille(s) included | Yes |
| Power modes | off, on or automatic (signal-sensing) |
| Warranty | 3 years |

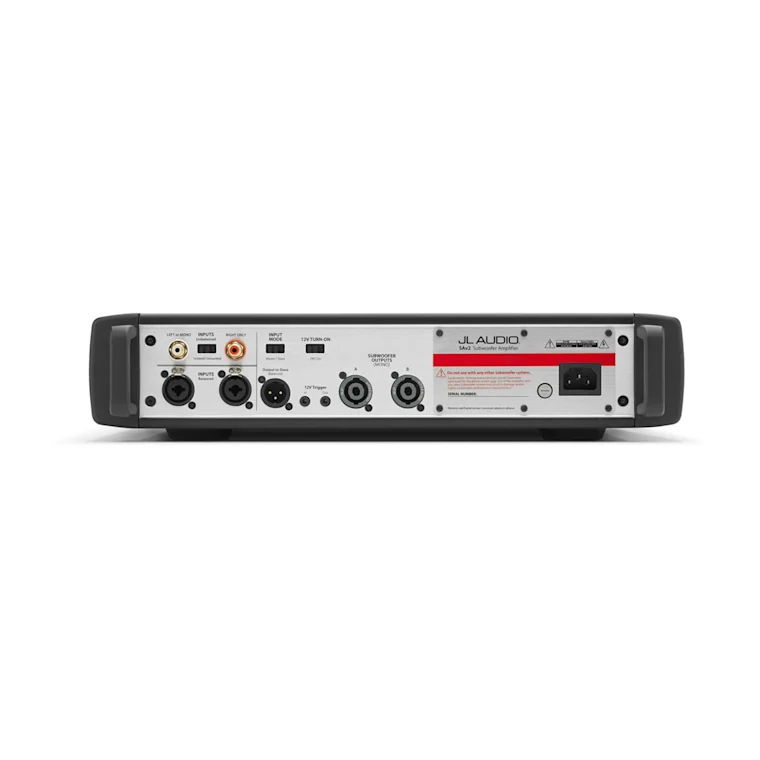

| Signal Processing | |
| Unbalanced inputs | Stereo or mono (two RCA jacks) |
| Balanced inputs | Stereo or mono (two female XLR jacks) |
| Input grounding | Isolated or grounded |
| Input modes | Master or slave |
| Level control | Reference (fixed gain) or Variable, from full mute to +15 dB over reference gain |
| Filter mode(s) | Low-pass |
| Filter slope(s) | 12/24 dB/octave |
| Filter frequency range | 30 Hz-130 Hz |
| Filter defeat function | Yes |
| Polarity | 0 or 180º |
| Phase | Variable, 0-270º, referenced to 80 Hz |
| Extreme Low Frequency (E.L.F.) trim | Variable, -12 dB to +3 dB at 23 Hz |
| Output to slave | Balanced (one male XLR jack) |
| Calibration mode | Digital Automatic Room Optimization (D.A.R.O.), includes laboratory-grade microphone |
| Amplifier Specifications | |
| Width (W) | 17.4" (442 mm) |
| Height (H) | 3.5" (89 mm) |
| Depth (D) | 17.9" (455 mm) |
| Net weight (each) | 13.5": 35 lbs (15.9 kg) Dual 13.5": 43 lbs (19.5 kg) |
| Enclosure Specifications for 2" x 4" Stud Construction | |
| Cavity Width (W): Minimum | 14.375" (365 mm) |
| Cavity Width (W): Maximum | 14.875" (378 mm) |
| Cavity Height (H): Minimum | 93.625" (2,378 mm) |
| Width (W) | 13.75" (349 mm) |
| Height (H) | 70" (1,778 mm) |
| Depth (D) | 2.94" (75 mm) |
| Enclosure Specifications for 2" x 6" Stud Construction | |
| Cavity Width (W): Minimum | 14.375" (365 mm) |
| Cavity Width (W): Maximum | 14.875" (378 mm) |
| Cavity Height (H): Minimum | 93.625" (2,378 mm) |
| Width (W) | 13.75" (349 mm) |
| Height (H) | 55" (1,397 mm) |
| Depth (D) | 4.70" (119 mm) |
| Grille Specifications | |
| Grille width (W) | 17.14" (435 mm) |
| Grille height (H) | 17.64" (448 mm) |
| Opening width (W) | 16" (406 mm) |
| Opening height (H) | 16.5" (419 mm) |
| Parameters | |
| Effective piston area (SD) | 13.5": 98.26 in² (0.0634 m²) Dual 13.5": 196.51 in² (0.1268 m²) |
| Effective displacement | 13.5": 147.3 cu in (2.41 L) Dual 13.5": 294.6 cu in (4.82 L) |
| In the box | |
| In the Box | Enclosure with pre-attached wallboard template Mounting bracket assembly Hanging rod Adhesive foam gasket Fifty 1.25" wafer head screws 13.5" subwoofer Steel mesh grille Fathom SAv2 home amplifier Power cord Two rack-mount tabs |
