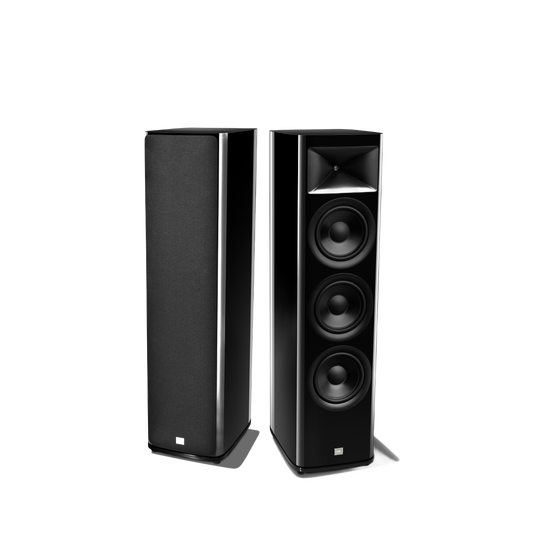

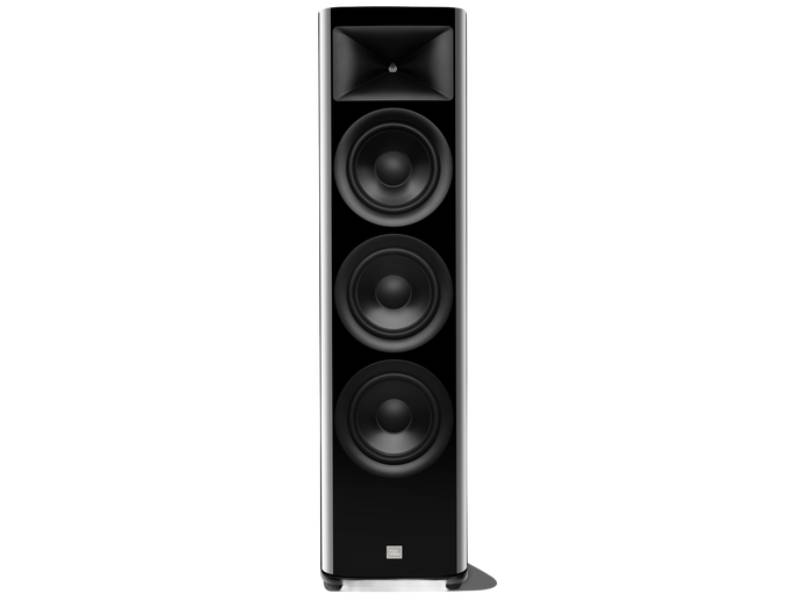

8" JBL Triple HDI-3800 Floorstanding Loudspeaker - JBLHDI3800BLQAM
HDI-3800
Designed and engineered in JBL’s world-famous acoustic engineering facility in Northridge, California, the HDI-3800 is the flagship of the JBL HDI Series. This floorstanding loudspeaker features a 2 ½-way design with patented High-Definition Imaging (HDI™) horn geometry, the patented 2410H-2 1-inch (25mm) compression driver, and triple 8-inch (200mm) Advanced Aluminum Matrix cone woofers for powerful dynamics and incredibly accurate sound reproduction.

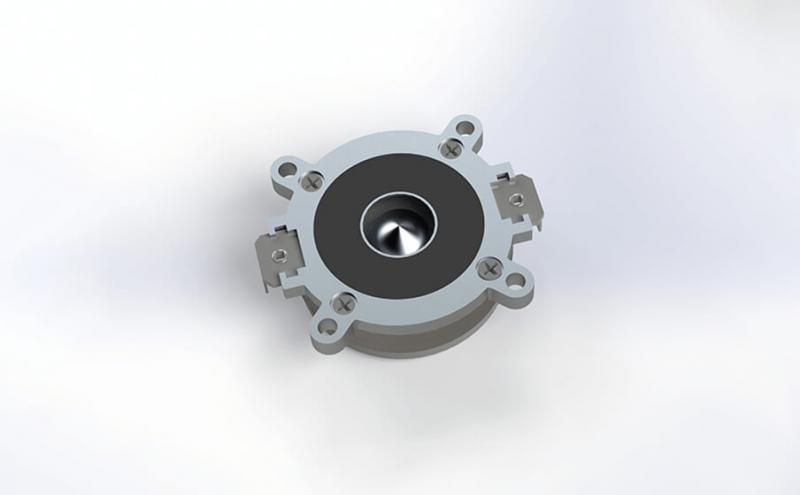

Patented 2410H-2 1" (25mm) compression driver with High Definition Imaging ™ geometry horn.

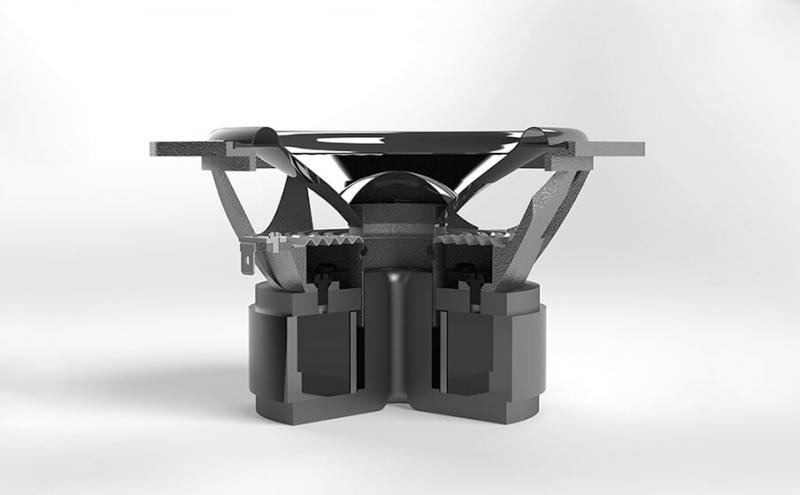

8" (200mm) Advanced Aluminum Matrix cast-frame woofers.

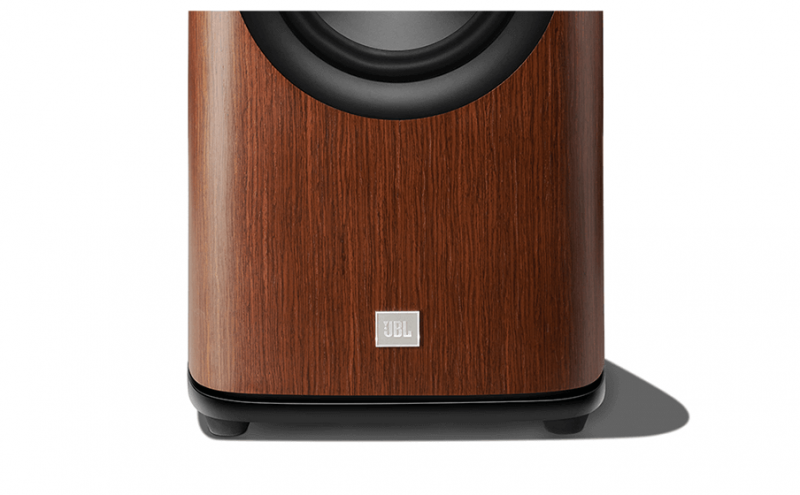

Choice of automotive-grade painted High Gloss Black, or furniture-grade satin Walnut or Gray Oak wood veneers.

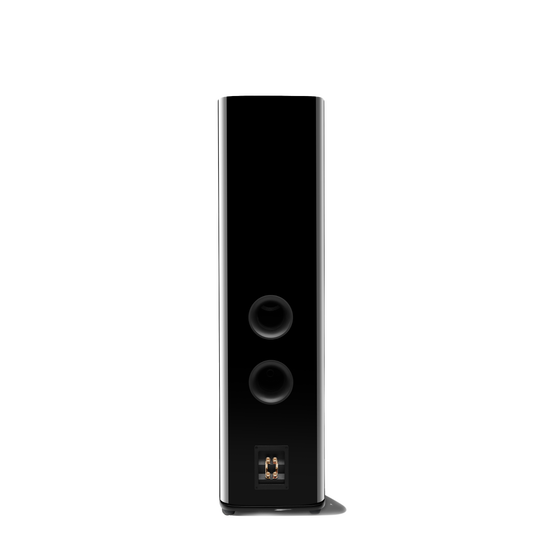

Dual rear-firing, computer-optimized flared ports.
Advanced crossover network
Dual sets of gold-plated binding posts with shorting straps.

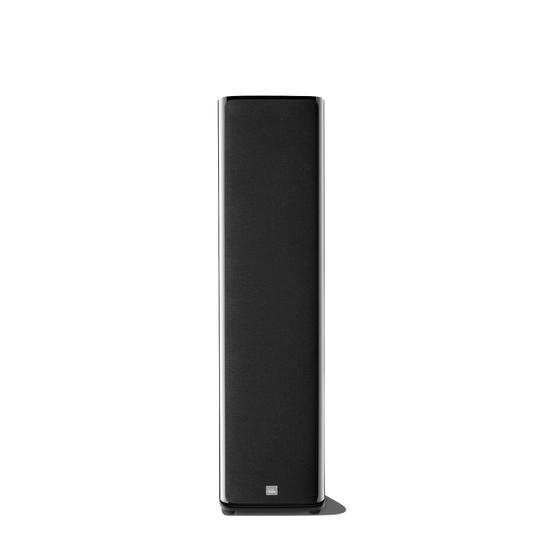

Black cloth, magnetically attached grille.
| General Specifications | |
|---|---|
| Net Weight | 83.78 lbs (38.00kg) |
| Dimensions (H x W x D) | 43.33 x 11.81 x 16.45" (1100.5 x 300.0 x 417.8mm) |
| Frequency Response | 37Hz – 30kHz (-6dB) |
| Nominal Impedance | 4 Ohm |
| Recommended Amplifier Power | 25W – 300W |
| Sensitivity (2.83V @ 1M) | 92dB |
| Crossover Frequency | 800Hz, 1800Hz |
| Low / Mid Frequency Transducers | Three 8-inch (200mm) black Advanced Aluminum Matrix cone, cast frame woofers |
| High Frequency Transducer | 1-inch (25mm) Teonex compression driver |
| Enclosure Type | Bass-reflex design with rear-firing port |
