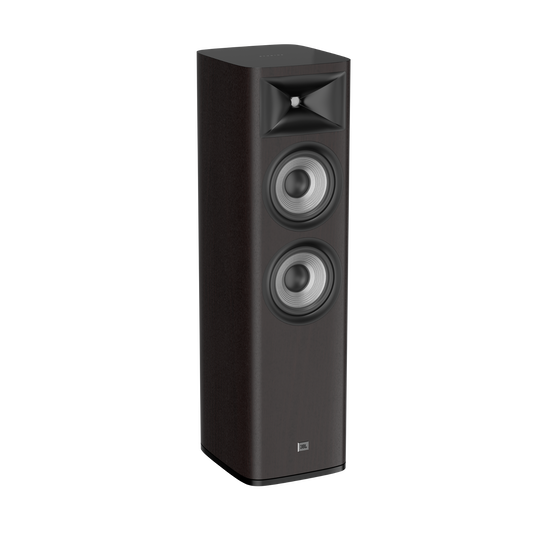

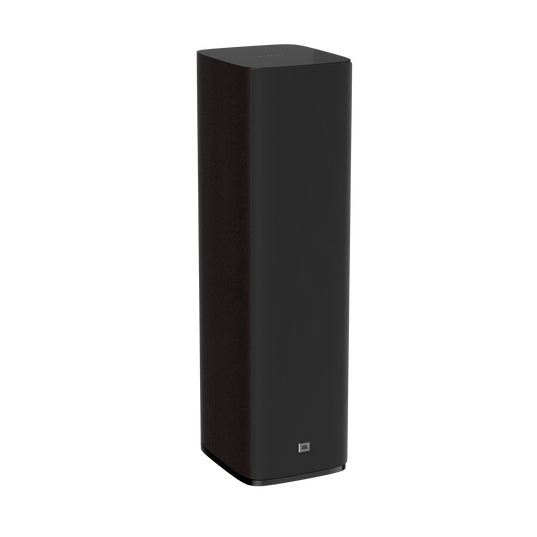

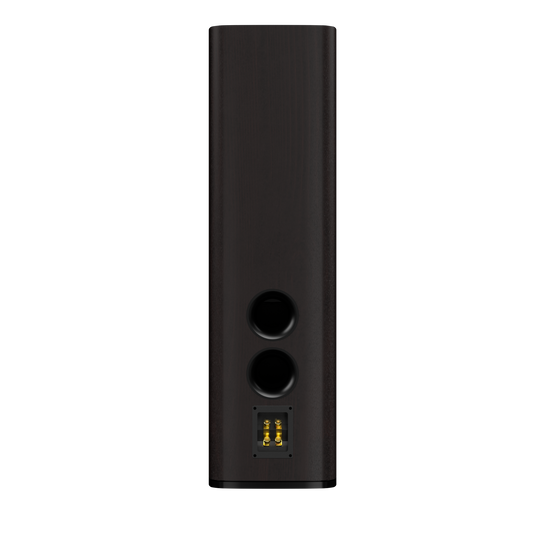

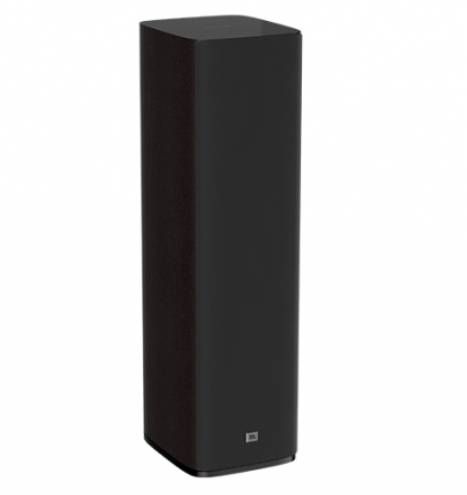

8" JBL Studio 690 2.5-way Floorstanding Loudspeaker - JBLS690DKW
The JBL Studio 690 is a high-performance floorstanding loudspeaker utilizing JBL's 2414H-1 1-inch compression driver mated to a High-Definition Imaging horn complemented with dual 8-inch PolyPlas cone woofers. The elegant cabinet design includes a magnitically attached grille and brings an element of sophistication to any room. The Studio 6 Series delivers big dynamics, detailed sound, and powerful bass for true high-fidelity sound.
High-definition imaging Waveguide with high-frequency compression driver
Studio 690
The new JBL Studio 6 speaker system is everything your inner audiophile was hoping for. Complete with advanced PolyPlas cones, powerful acoustics speaker drivers, and fitted with an all-new, high-definition imaging waveguide using a high-frequency compression driver, your home listening experience will never be quite the same.
Top-graded PolyPlass cones
High-quality sounding compression drivers
New, appealing form factor
What's in the box
- 1 x JBL Studio 690 Floor Standing Loudspeaker
- 1 x Owner’s Manual
- 1 x Warranty Card
- 4 x Carpet Spikes
- 4 x Feet Pads
| General Specifications | |
|---|---|
| Dual 8", 2.5-way compression driver floor standing loudspeaker | Yes |
| Dual 8" (203mm) PolyPlas Low-Frequency Woofer | Yes |
| High Definition Imaging (HDI) Waveguide with 1" (25mm) High Frequency Compression Driver | Yes |
| Recommended Amplifier Power | Max 250W |
| Frequency Response | 36Hz – 40kHz |
| Sensitivity | 90dB @ 1M, 2.83V |
| Nominal Impedance | 6 Ohms |
| Crossover Frequencies | 600 Hz, 1.7 kHz |
| Enclosure Type | Bass-Reflex via Rear-Firing Tuned Port |
| Dimensions (W x D x H) | 300 x 350 x 1058mm |
