8" JBL Studio 698 3-way Floorstanding Loudspeaker - JBLS698W (Each)
Up to 24 month financing

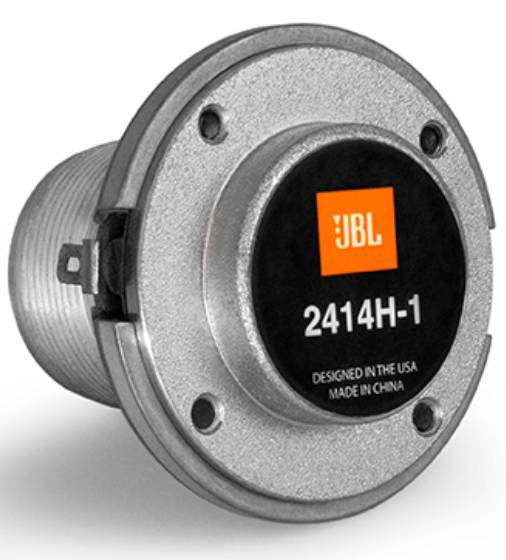

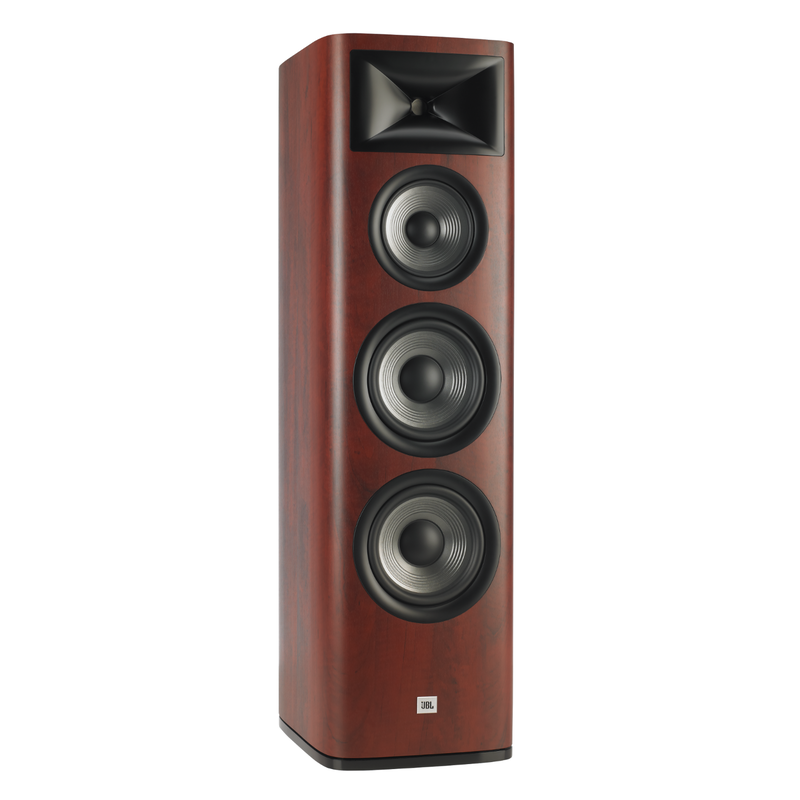

The JBL Studio 698 is a high-performance floorstanding loudspeaker utilizing JBL's 2414H-1 1-inch compression driver mated to a High-Definition Imaging horn complemented with a 6-inch midrange driver and dual 8-inch PolyPlas cone woofers. The elegant cabinet design includes a magnitically attached grille and brings an element of sophistication to any room. The Studio 6 Series delivers big dynamics, detailed sound, and powerful bass for true high-fidelity sound.
High-definition imaging Waveguide with high-frequency compression driver
Studio 698
The new JBL Studio 6 speaker system is everything your inner audiophile was hoping for. Complete with advanced PolyPlas cones, powerful acoustics speaker drivers, and fitted with an all-new, high-definition imaging waveguide using a high-frequency compression driver, your home listening experience will never be quite the same.
Top-graded PolyPlass cones
High-quality sounding compression drivers
New, appealing form factor
What's in the box?
- 1 x JBL Studio 698 Floor Standing Loudspeaker
- 4 x Carpet Spikes
- 4 x Feet Pads
- 1 x Owner’s Manual
- 1 x Warranty Card
| General Specifications | |
|---|---|
| Dual 8", 6" mid, 3-way compression driver floor standing loudspeaker | Yes |
| 6" (152mm) PolyPlas Mid-range Transducer | Yes |
| Dual 8" (203mm) PolyPlas cone Low-Frequency Transducer | Yes |
| High Definition Imaging (HDI) Waveguide with 1" (25mm) High Frequency Compression Driver | Yes |
| Recommended Amplifier Power | Max 250W |
| Frequency Response | 36Hz – 40kHz |
| Sensitivity | 90dB @ 1M, 2.83V |
| Nominal Impedance | 6 Ohms |
| Crossover Frequencies | 320 Hz, 1.8 kHz |

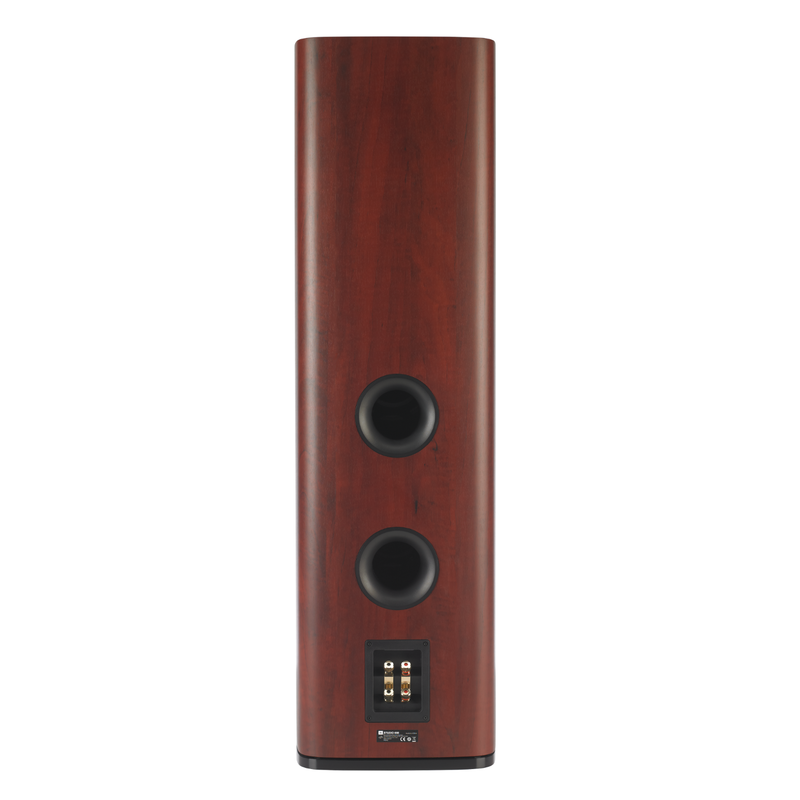

| Enclosure Type | Bass-Reflex via Rear-Firing Tuned Port |
| Dimensions (W x D x H) | 300 x 400 x 1058mm |
