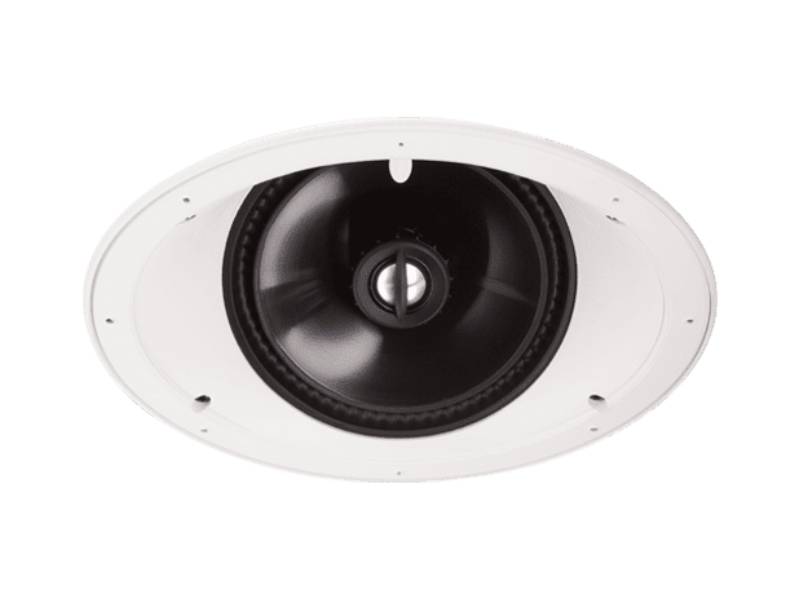

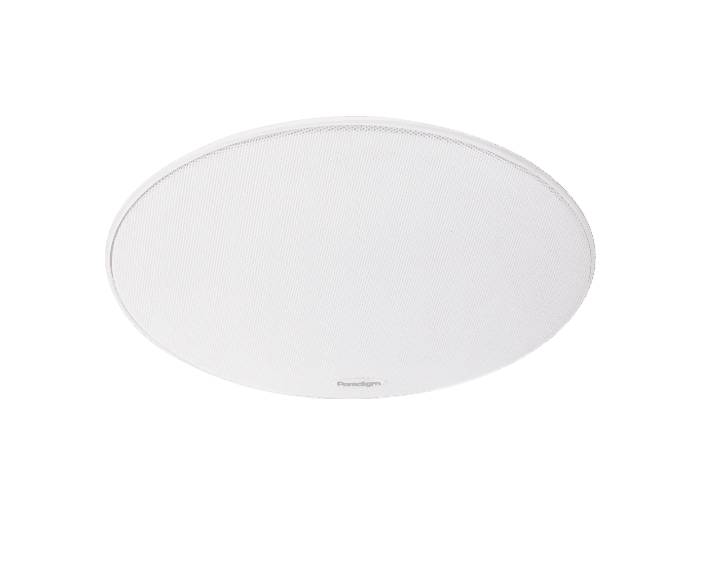

Paradigm 2 Driver 2 Way In Ceiling Speaker - AMS-150R-30
$299.99
Save $196.00
clearance
Literature
Guided Soundfield™ system, 2-driver, 2-way in-ceiling, drivers mounted at 30° relative to mounting surface, die-cast chassis / mounting bracket
| Specifications | |
|---|---|
| DESIGN | Guided Soundfield™ system, 2-driver, 2-way in-ceiling, drivers mounted at 30° relative to mounting surface, die-cast chassis / mounting bracket |
| CROSSOVER | 2nd-order electro-acoustic at 2.5 kHz |
| HIGH FREQUENCY DRIVER | 25-mm (1 in) S-PAL™ dome, die-cast heatsink |
| FREQUENCY RESPONSE ON-AXIS | ±2 dB from 60 Hz - 22 kHz |
| FREQUENCY RESPONSE | 30° OFF-AXIS±2 dB from 60 Hz - 16 kHz |
| MID/BASS FREQUENCY DRIVER | 210-mm (8 in) mineral-filled polypropylene cone |
| SENSITIVITY ROOM / ANECHOIC | 91 dB / 87 dB |
| LOW FREQUENCY EXTENSION | 45 Hz (DIN) |
| SUITABLE AMPLIFIER POWER RANGE | 15 - 110 watts |
| MAXIMUM INPUT POWER | 80 watts |
| IMPEDANCE | Compatible with 8 ohms |
| OVERALL DIMENSIONS | 11.625" (29.5cm) Diameter " (0.0cm) Depth |
| CUT-OUT DIMENSIONS | 10.625" (27.0cm) Diameter |
| MINIMUM INTERNAL VOLUME REQUIRED | 0.70 cu ft (20 L) |
| MINIMUM MOUNTING DEPTH (DEPTH REQUIRED IS THE DISTANCE BETWEEN 1/2" DRYWALL, OR SIMILAR MATERIAL.) | 5.625" (14.3cm) |
| WEIGHT | 5 lbs. (2.3 kg) |
| FINISHES | White, paintable |
