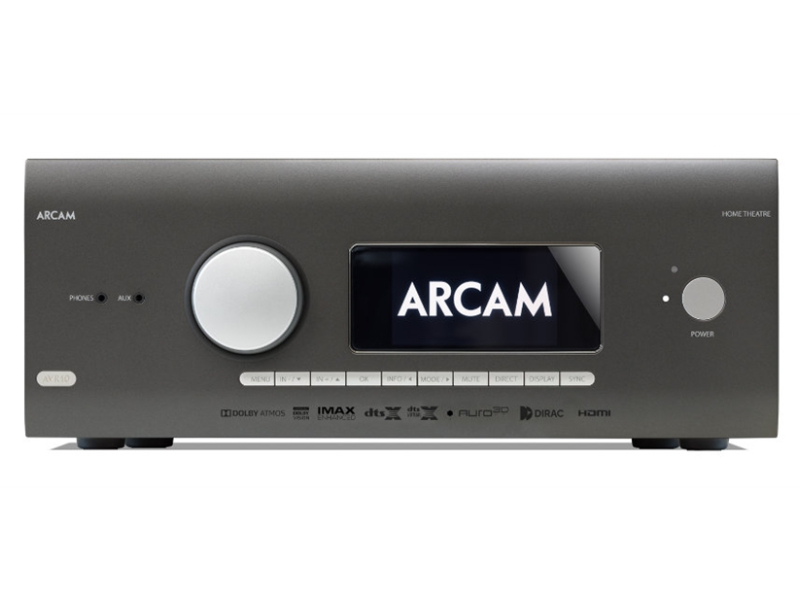

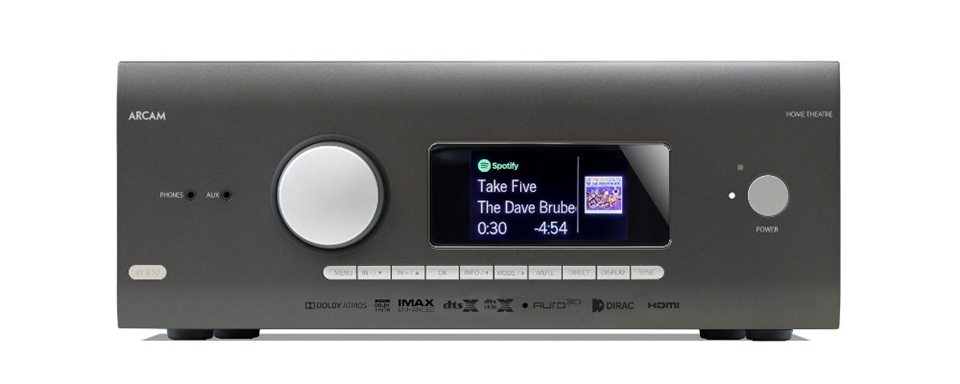

Arcam Class AB AV Receiver With Bluetooth - AVR10
Stunning Realism, Immersive Sound
The AVR10 is a high-performance audio/visual receiver that delivers stunning realism for the ultimate home cinema experience. With an impressive 12-channel surround solution and featuring all the latest CODECs from Dolby, DTS, Auro-3D and IMAX Enhanced, the AVR10 exemplifies sound quality and engineering excellence.
The AVR10 features the efficient class AB amplification for a level of transparency that delivers the most captivating sound. Audiophile listening experiences are optimised with full 12-channel Dirac calibration on board as well as simple streaming with a mobile device using the native app of choice via Apple AirPlay2 or Google Chromecast.
Dirac Live® Bass Control aggregates measurement and location data from each subwoofer as well as the main speakers to determine how a system’s bass is distributed throughout the room.
PRODUCT DETAILS
- Dolby Atmos , IMAX Enhanced, Auro-3D & DTS:X 7.1.4 decoding
- 4K (UHD) HDMI2.0b with HDCP2.2

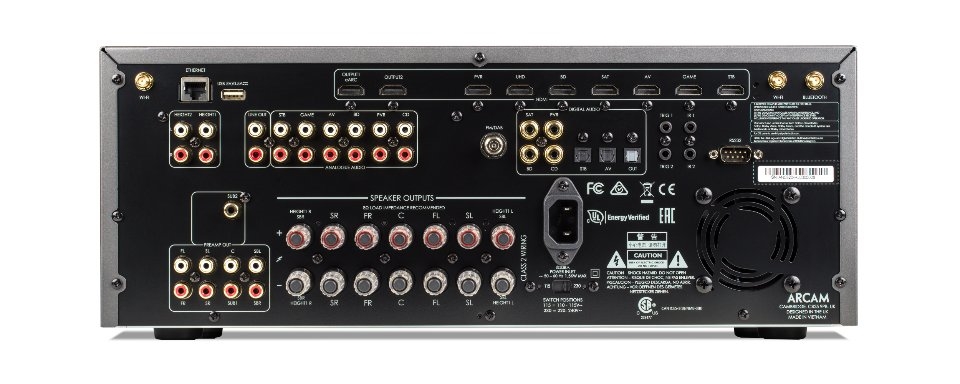

- 7 HDMI inputs, 2 HDMI outputs, eARC compatible
- Dirac Live® room correction
- ESS 9026PRO audiophile DAC
- Class AB power amplification -
- Uses frame-type transformer
- Wifi / Ethernet, RS232 and IR control
- Google Cast/UPnP capability for streaming audio
- Bluetooth
- Free MusicLife iOS and Android UPnP and control app
| Continuous power output, per channel, 8Ω/4Ω | |
|---|---|
| 2 channels driven, 20Hz - 20kHz, <0.02% THD | 80W/100W |
| 2 channels driven, 1kHz, 0.2% THD | 85W/120W |
| 7 channels driven, 1kHz, 0.2% THD | 60W/85W |
| Residual noise & hum (A-wtd) | <0.15mV |
| Stereo Line Inputs | |
| Maximum input | 4.5V rms |
| Nominal sensitivity | 1V, 2V, 4V (user adjustable) |
| Input impedance | 47kΩ |
| Signal/noise ratio (A-wtd ref 100W) normal/stereo direct | 100dB/110dB |
| Frequency response | 20Hz—20kHz ± 0.2dB |
| Preamplifier Outputs | |
| Nominal output level | 1V RMS (max. 5V RMS) |
| Output impedance | 560Ω |
| THD+N (20Hz—20kHz) | –100dB |
| Headphone Output | |
| Maximum output level into 32Ω | 5Vrms |
| Output impedance | <100Ω |
| General | |
| Mains voltage | 110–120V or 220–240V, 50–60Hz |
| Power consumption (maximum) | 1.5kW (Thermal dissipation approx. 5200 BTU/hour |
| Power consumption (idle, typical) | 90W (Thermal dissipation approx. 340 BTU/hour) |
| Power consumption (standby) | <0.5W |
| Dimensions W x D (including speaker terminals) x H (including feet) | 433 x 425 x 171mm |
| Weight (net) | 16.5kg |
| Weight (packed) | 19.8kg |
| Supplied accessories | Mains lead, Remote control with 2 x AAA batteries, Manual, DAB/FM aerial, 3 x WiFi/Bluetooth antennas, Calibration microphone, USB cable |
