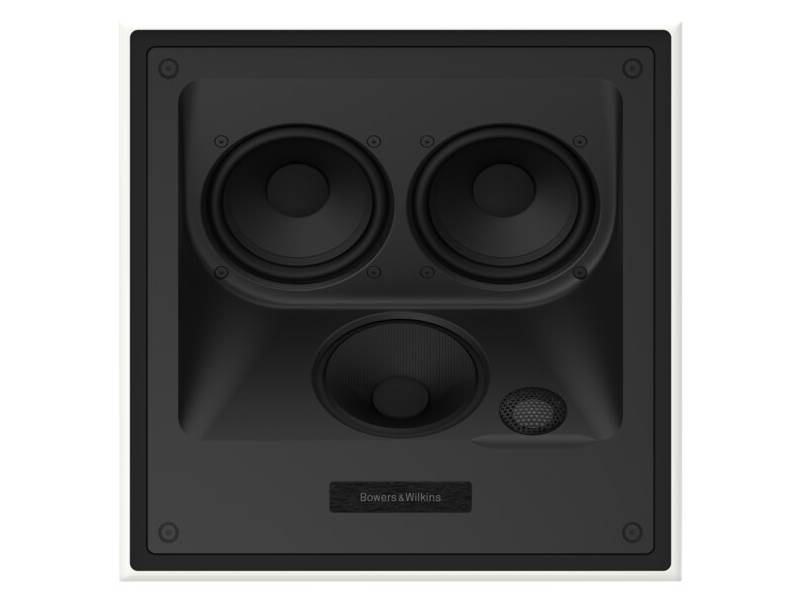

Bowers & Wilkins In-Ceiling Speakers - CCM7.3 S2 (Each)
$2,800.00
OR
$128.33/mo
+ taxes/fees
Up to 24 month financing
Up to 24 month financing
Literature
Drive Units
- 1 x 1” Carbon Dome tweeter
- 1 x 4” Continuum™ cone FST midrange
- 2 x 5” Aerofoil profile bass
| Specifications | |
|---|---|
| Technical features | Carbon Dome tweeter , Continuum cone FST midrange , Aerofoil profile bass cones |
| Description | 3-way in-ceiling system |
| Drive units | 1x ø25mm (1in) Carbon Dome high-frequency , 1x ø100mm (4in) Continuum cone FST midrange , 2x ø130mm (5in) Aerofoil profile bass |
| Frequency range (-6dB) | -6dB at 52Hz and 33kHz |
| Frequency Response | -3dB 55Hz - 28kHz ±3dB |
| Sensitivity | 90dB spl (2.83Vrms, 1m) |
| Harmonic distortion | 2nd and 3rd harmonics (90dB, 1m) , <1% 90Hz - 33kHz , <0.5% 120Hz - 33kHz |
| Nominal impedance | 8Ω (minimum 3.1Ω) |
| Recommended amplifier power | 25W - 200W into 8Ω on unclipped programme |
| Frame height | 355mm (14in) |
| Frame width | 355mm (14in) |
| Depth | 194.5mm (7.66in) |
| Cut-out height | 332mm (13.1in) |
| Cut-out width | 332mm (13.1in) |
| Cut-out height w/PMK | 335mm (13.2in) |
| Cut-out width w/PMK | 335mm (13.2in) |
| Protrusion | 8mm (0.3in) |
| PMK | 7C |
| Net weight | 9kg (19.84lb) Inc accessories |
| Finish | Back box: White , Grille: White |
