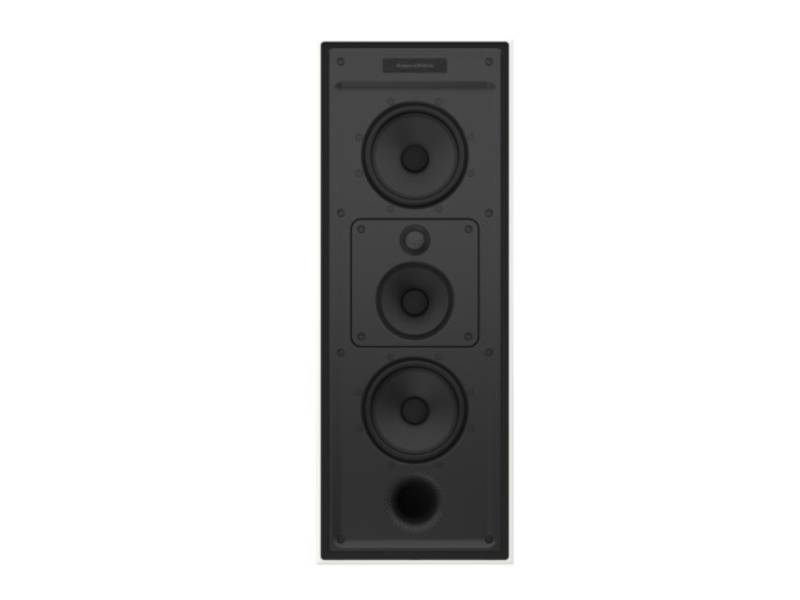

Bowers & Wilkins In-Wall Speakers - CWM7.3 S2 (Each)
$2,800.00
OR
$128.33/mo
+ taxes/fees
Up to 24 month financing
Up to 24 month financing
Literature
Drive Units
- 1 x 1” Carbon Dome tweeter
- 1 x 4 in Continuum™ cone FST midrange
- 2 x 6” Aerofoil profile bass
- Flowport
- Optional Air Reservoir included
Key Features
- High resolution, low distortion drive unit technology
- Integrated backbox for easy retrofit into drywall
- Landscape or portrait installation options
| Specifications | |
|---|---|
| Technical features | Carbon Dome tweeter , Continuum cone FST midrange , Aerofoil profile bass cones , Flowport™ |
| Description | 3-way in-wall system |
| Drive units | 1x ø25mm (1 in) Carbon Dome high-frequency 1x ø100mm (4 in) Continuum cone FST midrange 2x ø150mm (6 in) Aerofoil profile bass |
| Frequency range (-6dB) | -6dB at 43Hz and 33kHz |
| Frequency Response | -3dB 45Hz - 28kHz ±3dB |
| Sensitivity | 90dB spl (2.83Vrms, 1m) |
| Harmonic distortion | 2nd and 3rd harmonics (90dB, 1m) , <1% 80Hz - 33kHz , <0.5% 120Hz - 33kHz |
| Nominal impedance | 8Ω (minimum 3.1Ω) |
| Recommended amplifier power | 25W - 200W into 8Ω on unclipped programme |
| Frame height | 736mm (29in) |
| Frame width | 276mm (11in) |
| Depth (behind surface) | 102mm (4.02in) |
| Cut-out height | 711mm (28in) |
| Cut-out width | 251mm (9.9in) |
| Cut-out height w/PMK | 715mm (28.1in) |
| Cut-out width w/PMK | 256mm (10.1in) |
| Reservoir box height | 460mm (18.1in) |
| Reservoir box width | 220mm (8.7in) |
| Protrusion | 7mm (0.28in) |
| PMK | 7.3W |
| Net weight | 12.4kg (27.32lb) |
| Finishes | Back box: White , Grille: White |
