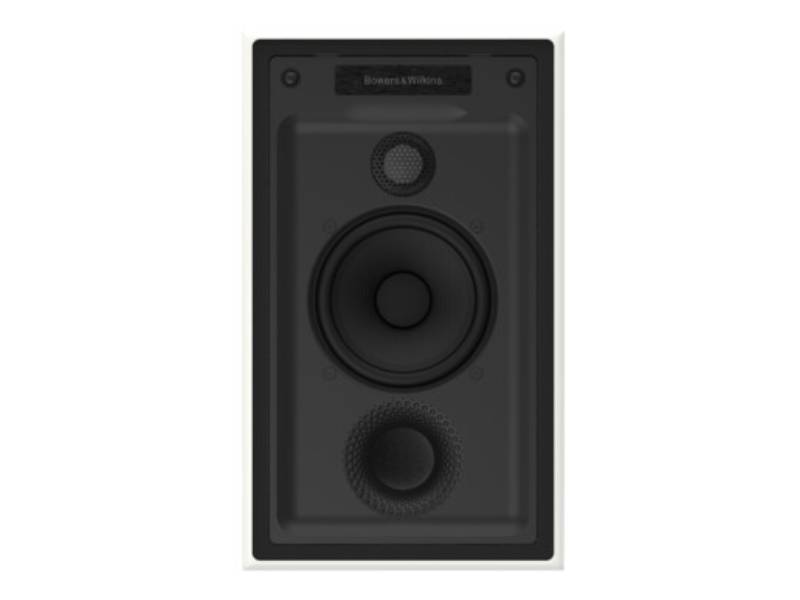

Bowers & Wilkins In-Wall Speakers - CWM7.5 S2 (Each)
$1,300.00
OR
$59.58/mo
+ taxes/fees
Up to 24 month financing
Up to 24 month financing
Literature
Drive Units
- 1 x 1” Carbon Dome tweeter
- 1 x 5“ Continuum™ cone mid/bass
- Flowport
- Optional Air Reservoir included
Key Features
- High resolution, low distortion drive unit technology
- Integrated backbox for easy retrofit into drywall
- Landscape or portrait installation options
| Specifications | |
|---|---|
| Technical features | Carbon Dome tweeter , Continuum mid/bass , Flowport™ |
| Description | 2-way in-wall system |
| Drive units | 1x ø25mm (1 in) Carbon Dome high-frequency , 1x ø130mm (5 in) Continuum cone mid/bass |
| Frequency range(-6dB) | -6dB at 43Hz and 33kHz |
| Frequency Response | -3dB 45Hz - 28kHz ±3dB |
| Sensitivity | 86dB spl (2.83Vrms, 1m) |
| Harmonic distortion | 2nd and 3rd harmonics (90dB, 1m) <1% 90Hz - 33kHz <0.5% 120Hz - 33kHz |
| Nominal impedance | 8Ω (minimum 3.8Ω) |
| Recommended amplifier power | 25W - 150W into 8Ω on unclipped programme |
| Frame height | 356mm (14in) |
| Frame width | 212mm (8.5in) |
| Depth (behind surface) | 102mm (4in) |
| Cut-out height | 331mm (13in) |
| Cut-out width | 187mm (7.4in) |
| Cut-out height w/PMK | 336mm (13.2in) |
| Cut-out width w/PMK | 192mm (7.6in) |
| Reservoir box height | 385mm (15.2in) |
| Reservoir box width | 181mm (7.1in) |
| Protrusion | 8mm (0.32in) |
| PMK | 7.5W |
| Net weight | 3.8kg (8.38 lb) |
| Finishes | Back box: White , Grille: White |
