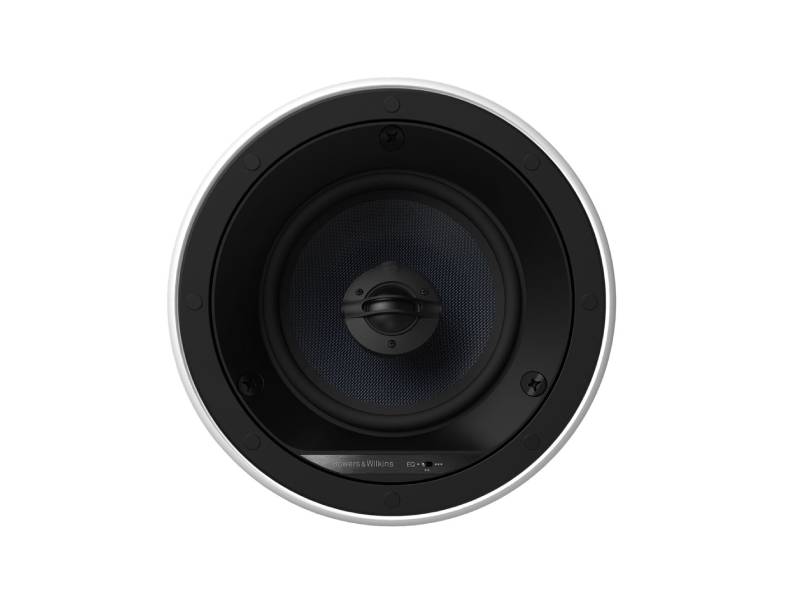

Bowers & Wilkins Reduced Depth Version of CCM663 In -Ceiling Speakers - CCM663RD (Each)
$600.00
OR
$27.50/mo
+ taxes/fees
Up to 24 month financing
Up to 24 month financing
Literature
Drive units
- 1x Ø25mm (1in) Nautilus™ swirl loaded aluminum dome tweeter
- 1x Ø150mm (6in) blue Aramid fibre cone bass/midrange
Key Features
- Low distortion, high- resolution drive unit technologies
- Adjustable EQ and tweeter directivity to optimise sound
- Reduced depth
| Specifications | |
|---|---|
| Description | 2-way in-ceiling system |
| Drive Units | 1x Ø25mm (1 in) Nautilus™, swirl loaded aluminium dome tweeter, 1x Ø150mm (6 in) blue Aramid Fibre, cone bass/midrange |
| Frequency range (-6dB) | 35Hz – 50kHz |
| Recommended Amplifier Power | 25W – 100W |
| Sensitivity | 86dB (2.83V, 1m) |
| Nominal Impedance | 8Ω (4.8Ω minimum) |
| Frame | Ø240mm (9.4 in) |
| Cut-out | Ø202mm (8 in) |
| Depth behind surface | 92mm (3.6 in) |
| Protrusion | 7mm (0.3 in) |
| Net weight | 2.3kg (5 lb) |
| Pre-mount Kit | PMK C6 |
| Back Box | BB6W or BB125C |
