Bowers & Wilkins Two-way, In-wall loudspeaker CCM8.5
Literature

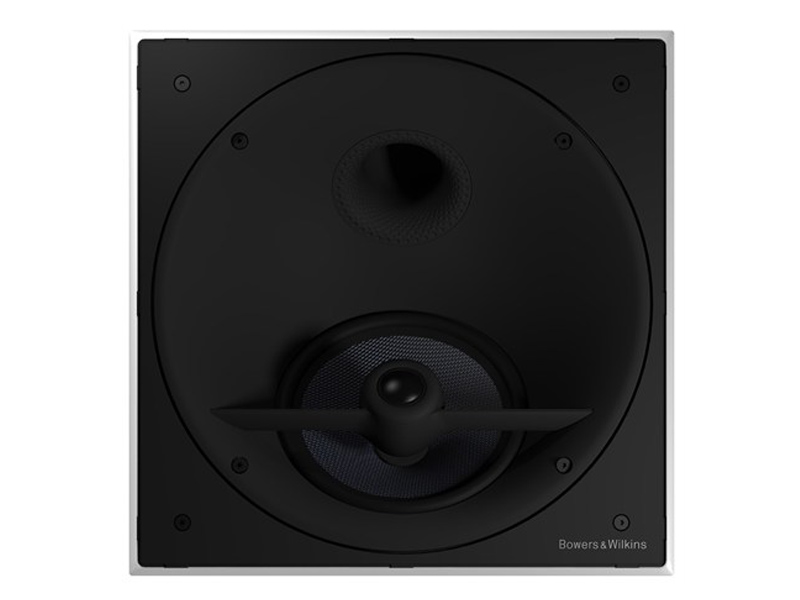

Bowers & Wilkins CCM 8.5 is a two-way in-ceiling loudspeaker. It features a Carbon Braced Tweeter and a single 7inch bass/mid Kevlar driver, with anti-resonance plug.
CCM 8.5 is a two-way in-ceiling loudspeaker, which offers high-quality acoustics in an incredibly discreet package. It features a Carbon Braced Tweeter and a single 7inch bass/mid Kevlar driver, with anti-resonance plug. All the drive units are located in a continuously rotatable mini baffle, which allows for the custom installation version of ‘toeing in' the loudspeaker.
| Specifications | |
|---|---|
| Model | CCM8.5 |
| Description | 2-way in ceiling loudspeaker |
| Technical features | Aluminium Tweeter ‘wing’ allows time alignment, Continuously rotatable aluminium mini-baffle allows “toe-in” Flowport™ |
| Drive units | 1x 25mm (1in) Aluminium Carbon Braced Tweeter with Nautilus Tube™, 1x 180mm (7in) woven blue Kevlar cone bass/midrange driver with anti-resonance plug |
| Frequency range | 35Hz - 40kHz |
| Power handling | 120W |
| Sensitivity | 88dB |
| Impedance | 8Ω(minimum 3.3Ω) |
| Frame outer | 351mm x 351mm (13.8 in x 13.8in) |
| Cut-out | 331mm x 331mm (13 in x 13in) |
| Cut-out allowance | 8mm (0.31in) |
| Protrusion | 8mm (0.31in) |
| Back box | 701mm x 343mm x 177mm, (27.6 in x 13.5 in x 6.9in) |
