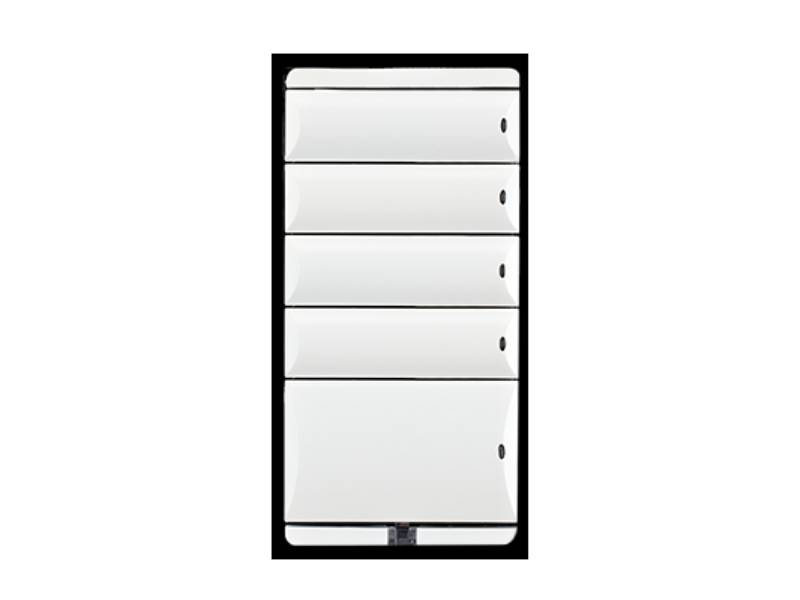

Control4 Wireless Fan Speed Controller - C4-4SF120-SW
Literature
Enjoy simplified, quiet fan speed control of standard paddle-type ceiling fans with four fan speed buttons and one off button, in a beautiful interface that adds to the aesthetics of your home.
FEATURES
- Incorporate your fans into climate control scheduling, energy management and other automated events.
- Includes four fan speed buttons and one off button.
- Continuously measures energy being used by the fan.
- Available in up to 9 stylish colors and finishes.
| Specifications | |
|---|---|
| Power Requirements | 120VAC +/-10%, 50/60Hz This device requires a neutral connection. |
| Power Consumption | 500mW |
| Load types and ratings | |
| Supported Load Types | Single, paddle-type ceiling fan |
| Maximum Load | 2A |
| Environmental | |
| Operational Temperature | 32˚ F - 104˚ F (0˚ C - 40˚ C) |
| Humidity | 5% to 95% non-condensing |
| Storage | -4˚ F - 158˚ F (-20˚ C - 70˚ C) |
| MISCELLANEOUS | |
| Control Communications | ZigBee, IEEE 802.15.4, 2.4 GHz, 15-channel spread spectrum radio |
| Wallbox Volume | 5.75 cubic inches |
| Weight | 0.12 lb. (0.05 kg) |
| Shipping Weight | 0.18 lb. (0.08 kg) |
