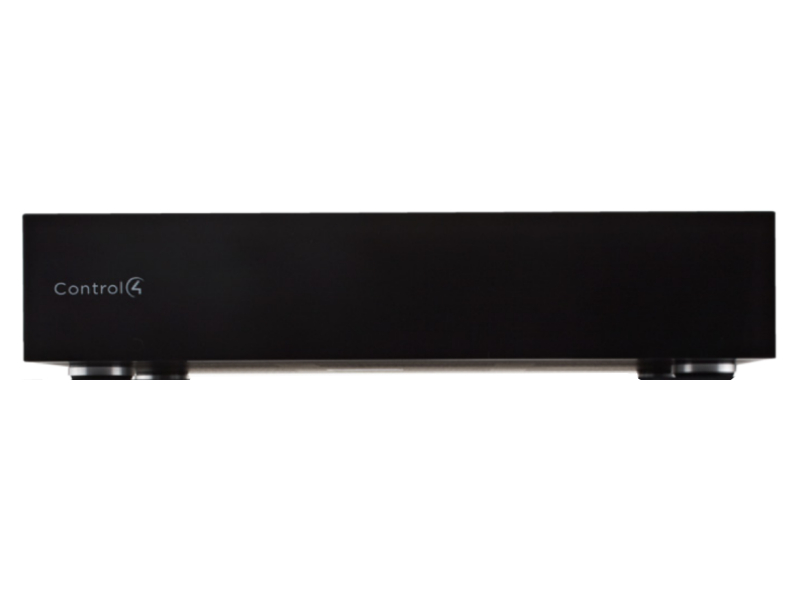

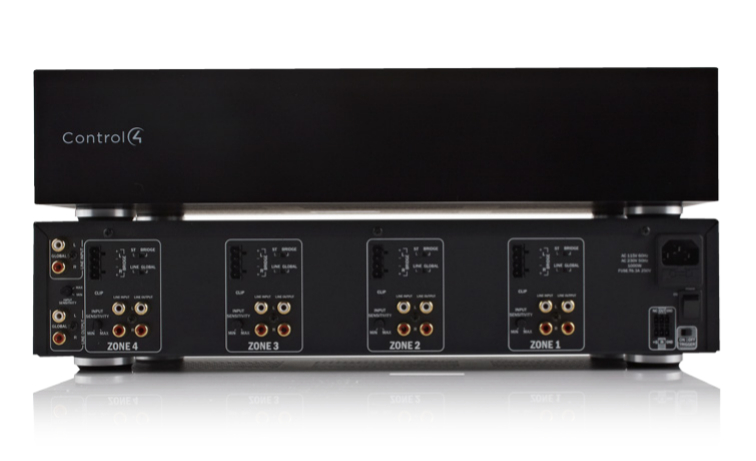

Control4 4-Zone Power Amplifier - AMP104
Control4® 100 Series Power Amplifiers deliver high-quality audio to four or eight stereo zones. Regardless of the size of your home or project, you’ll enjoy lots of power for your multi-room audio system.
- 4 and 8-Zone Power Amplifiers let you enjoy up to 55 watts of high-quality sound in each zone
- Bridgeable outputs provide up to 200 watts, delivering more power for larger speakers or outdoor zones
- Energy saving design allows the amplifier to go into standby when not in use
- Automatic fault detection and system reset protects the amplifier and connected speakers from damage
- Rack mount kit included (3U Rack Height)
| Specifications | |
|---|---|
| Zone Line Inputs | 4 Stereo, RCA Style |
| Zone Speaker Outputs | 4 Stereo, Phoenix Style |
| Zone Line Outputs | 4 Stereo, RCA Style |
| Global Line Input | 1 Stereo, RCA Style |
| Global Line Output | 1 Stereo, RCA Style |
| Rated Wattage Per Channel (Two Channels Driven) | 55W @ 8 Ohms, 100W @ 4 Ohms |
| Rated Wattage Per Channel (All Channels Driven) | 45W @ 8 Ohms, 60W @ 4 Ohms |
| Rated Wattage (Bridged) | 200W @ 8 Ohms |
| Frequency Response | 20Hz - 40kHz (+/- 3dB) |
| Signal-to-Noise Ratio | >-86dB A-Weighted |
| THD | <0.3% at 1 kHz |
| Zone Input Gain | Yes |
| Global Input Gain | Yes |
| Voltage Input Trigger | 5 - 30V AC or DC |
| Voltage Output Trigger | 5 - 30V AC or DC |
| Rack Mount Kit | Included—3U Vented |
| Power Requirements | 100-240VAC, 50-60 Hz |
| Environmental | |
| Operational Temperature | 32° F – 104° F (0° C – 40° C) |
| Humidity | 5% to 95% Non-Condensing |
| Storage | -4° F – 158° F (-20° C – 70° C) |
| MISCELLANEOUS | |
| Dimensions Without Rack Mount Kit (H×W×D) | 2U, 17.32” × 3.43” × 9.69” (440mm × 87mm × 246mm) |
| Dimensions With Rack Mount Kit (H×W×D) | 3U, 20.79” × 5.39” × 9.69” (528mm × 137mm × 246mm) |
| Weight | 11 lbs (4.99 kg) |
