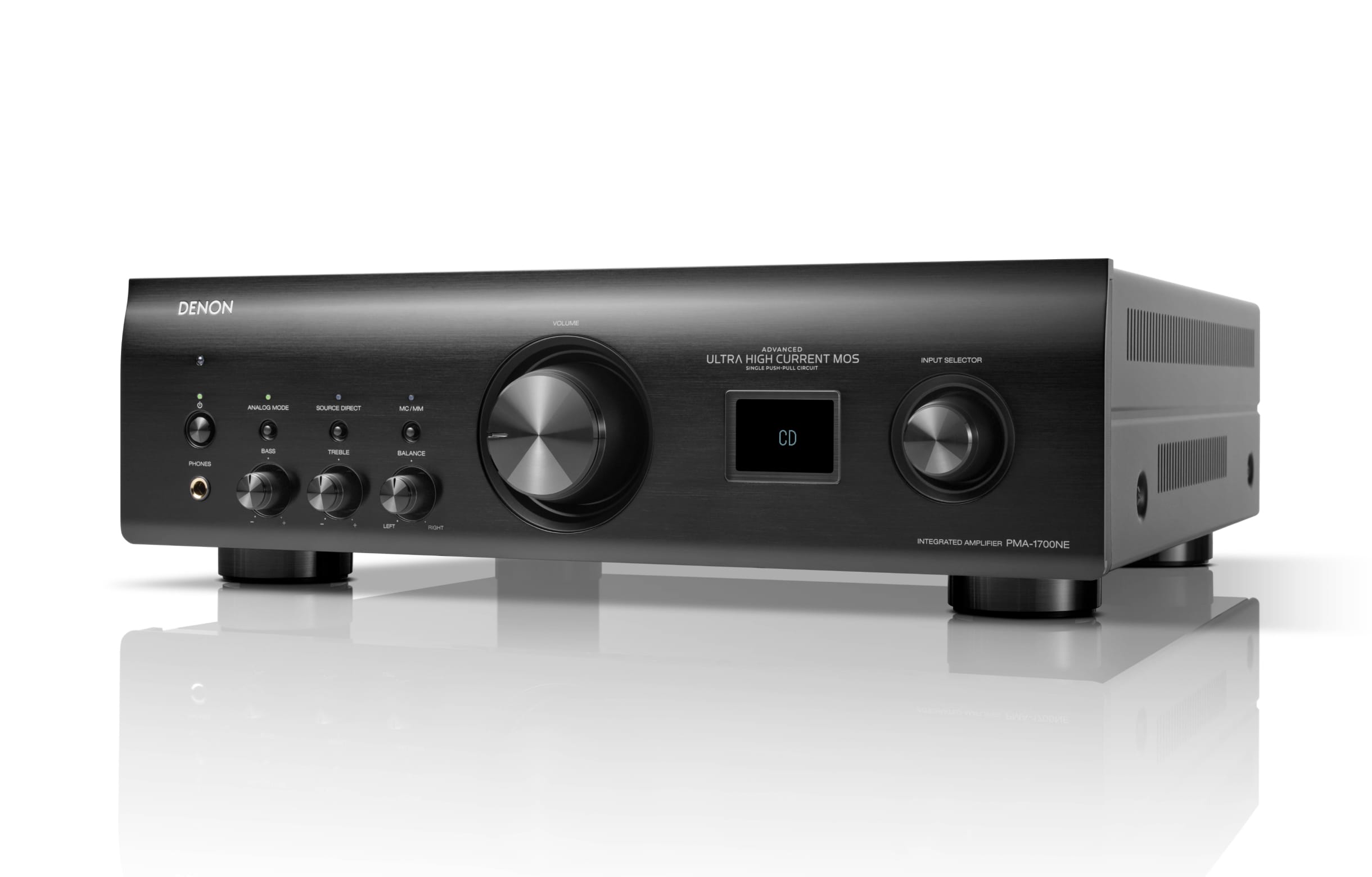

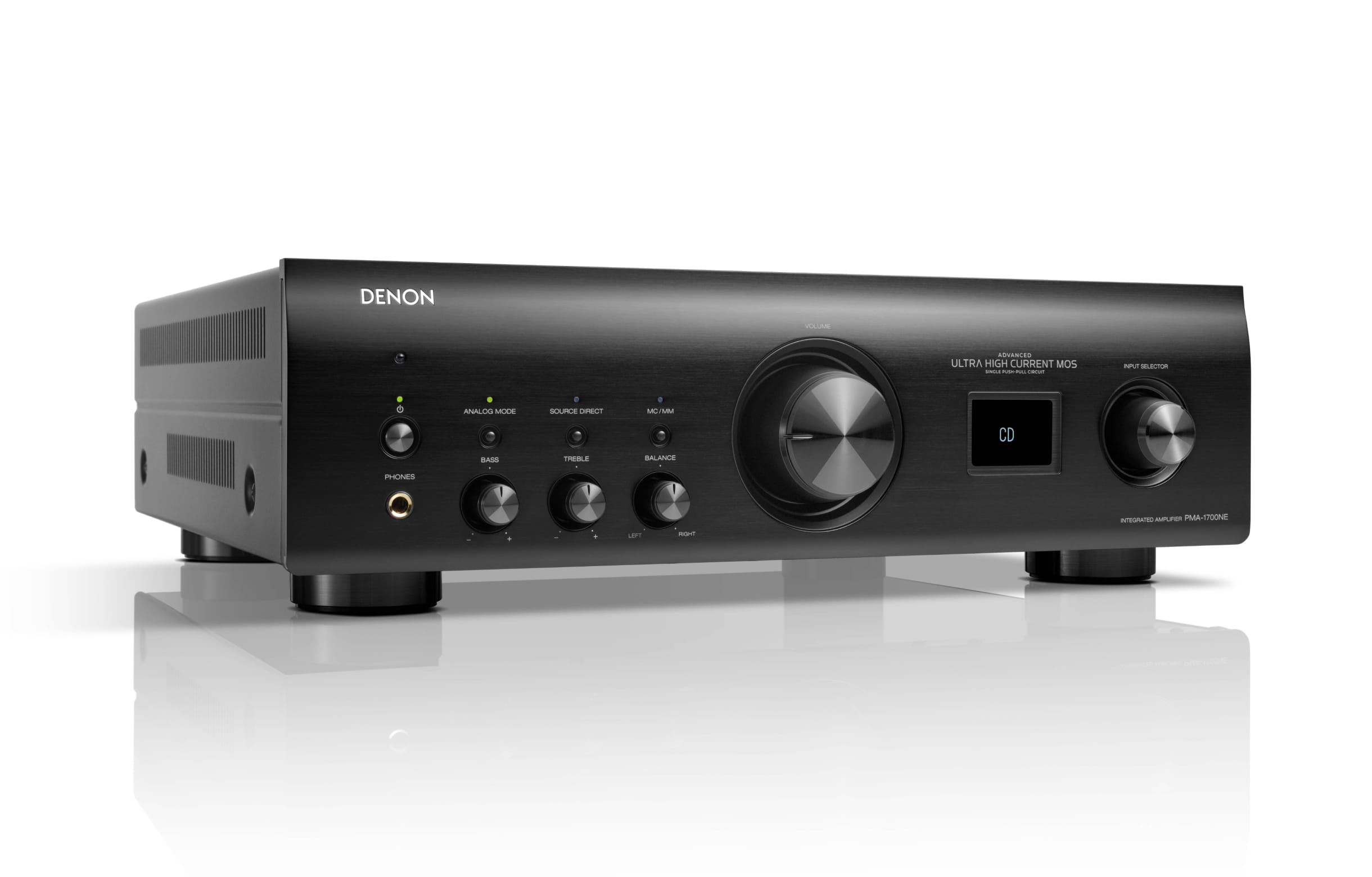

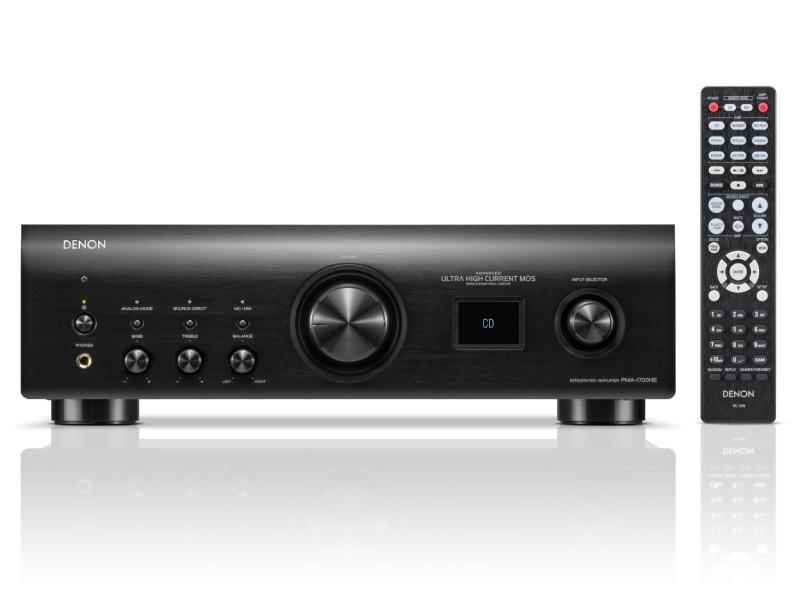

Denon Integrated Network Amplifier - PMA1700NE (Each)
Up to 24 month financing
Featuring advanced ultra-high current single push-pull circuit power, Advanced AL32 Processing, and MM/MC phono equalizer, the Denon PMA-1700NE integrated amplifier delivers extraordinary sound quality with precise detail.
Powerful sound from an integrated amplifier
Engineered with premium Denon technologies, this amplifier drives two channels at 140W.
Faithful audio reproduction
Advanced AL32 Processing Plus delivers the richly detailed sound the artist intended.

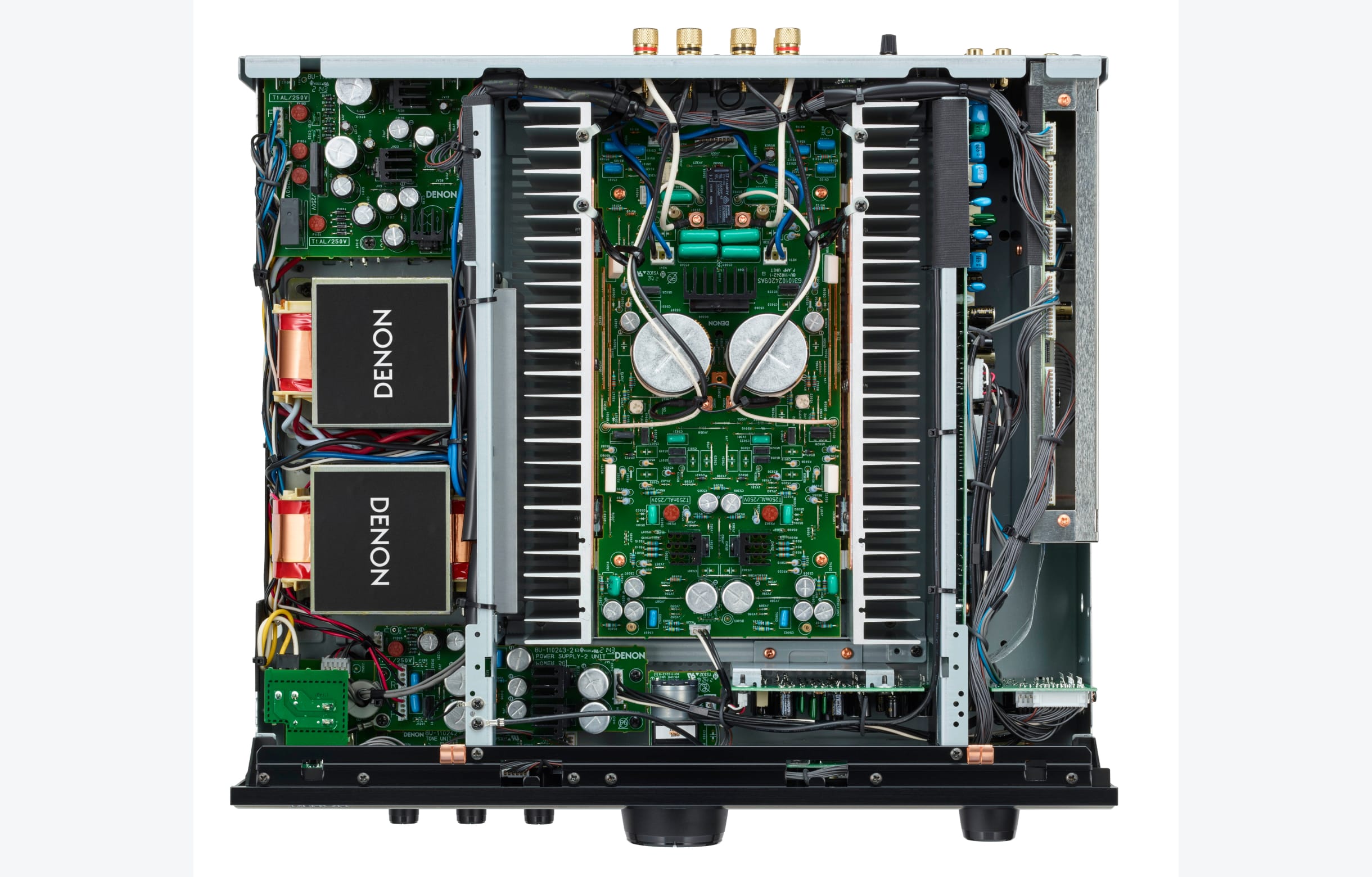

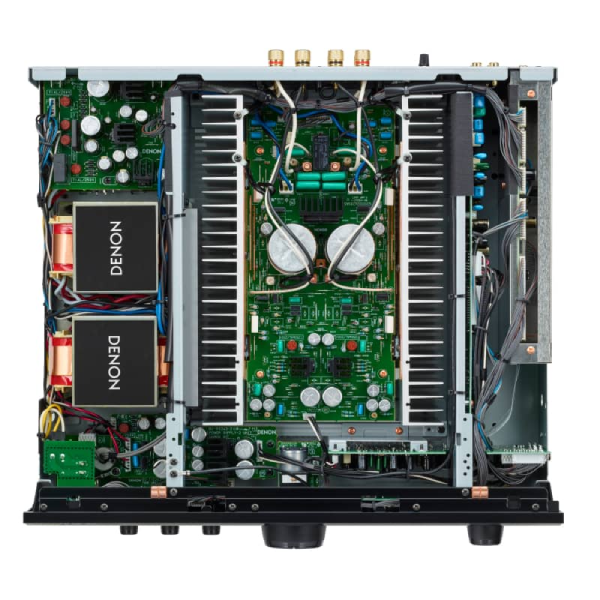

Build integrity with selected components
With more than 110 years of audio excellence, Denon products are built to last.
High-power 140W integrated amplifier
Drive your loudspeakers with 140 Watts of power- per-channel into 4 Ohms. This integrated amplifier offers compatibility with the widest range of 6 speaker types and impedances for operational stability.
Advanced AL32 Processing Plus
Advanced AL32 Processing Plus supports high-resolution 384 kHz/32-bit audio sources. The algorithms restore information that was lost during the digital recording to ensure detailed playback.
USB-DAC
To accurately synchronize digital circuits, the PMA- 1700NE provides USB-DAC functions that support high resolution up to 11.2-MHz DSD and 384- kHz/32-bit PCM input signals. Crafted with exceptional quality, the DAC suppresses jitter and ensures optimal precision in D/A conversion.

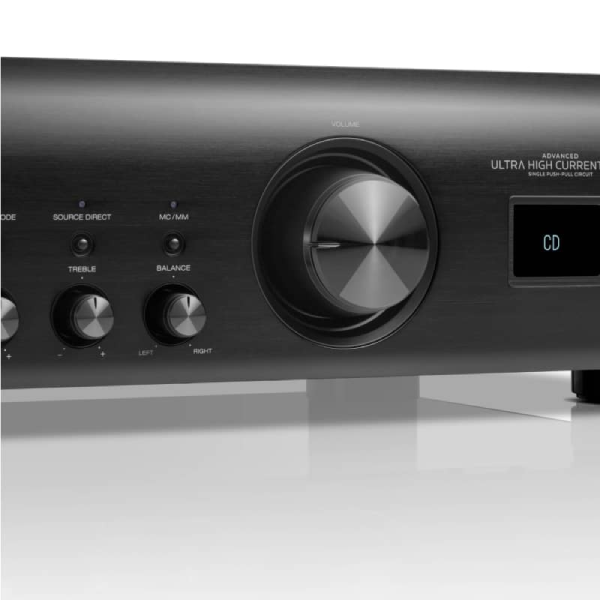

High-precision electrical controls
The PMA-1700NE embraces electrical volume, balance, and tone controls while preserving the analog feeling of operation. The unique mechanism offers smooth, linear control.
| General | |
|---|---|
| Unit (W x D x H) | 434 x 410 x 135mm, 17.1 x 16.1 x 5.3in |
| Cabinet Size (W x D x H) | 434 x 374 x 135mm, 17.1 x 14.7 x 5.3in |
| Net weight | 17.6kg, 38.8lb |
| Packaging Dimensions (W x D x H) | 548 x 520 x 249mm, 21.6 x 20.5 x 9.8in |
| Packaging gross weight | 20.4kg, 45lb |
| Carton Color | 2 Color |
| Cushion / Packing | 4 Separate / Sheet |
| Panel Color | SP / BK |
| Front (Center) Panel | Aluminum |
| Side cover | SECC with 4 straight emboss |
| Side screw | SP: Nickel / BK: Black |
| Rear Panel | SECC t1.0mm |
| Chassis Material | SECC t1.2mm |
| Bottom Layer | Single |
| Volume Knob | Aluminum |
| Input Selector | Aluminum |
| Bass/Treble/Balance/ Phono Sel knobs | Aluminum |
| Power button | Aluminum |
| Other knob/button (LOUDNESS, SOURCE DIRECT etc) | Mold (Source Direct,Analog Mode,MM/MC) |
| Foot | ABS resin with rigid rib w/Hot stamp (H : 20mm) |
| Heatsink for Power Amplifier | Extruded Aluminum |
| Specifications | |
| Rated Output Power | 70W + 70W (8ohm,20Hz-20kHz,THD0.07%) 140W + 140W (4ohm, 1kHz, THD0.7%) |
| Speaker Impedance | A or B : 4 ~ 16ohm A + B : 8 ~ 16ohm |
| Frequency Response | 5Hz - 100kHz (0~ -3dB) |
| Total Harmonic Distortion | 0.01 % (Rated output: –3 dB), 8 ohm/ohms, 1 kHz |
| Dumping Factor | 100 and over |
| Input Sensitivity: Phono input | MM: 2.5 mV / 47 kohm MC: 200 |
| RIAA Deviation | 20 Hz - 20 kHz ଐ.5 dB (MM/MC) |
| Phono Maximum Input | MM : 130mV / 1kHz MC : 10mV / 1kHz |
| Input Sensitivity: CD/LINE/RECORDER | 125 mV / 19 kohm |
| Input Sensitivity: Power Amp input | 0.85V / 47kohm (EXT. PRE) |
| Signal to Noise Ratio | PHONO (MM): (89dB) PHONO (MC): (74dB) CD: (107dB) |
| Tone Control | BASS : 100Hz ±8dB TREBLE : 10kHz ±8dB |
| Power Consumption | 295W |
| at Standby | 0.2W TV autoplay off 0.4W TV autoplay on |
| Audio Feature | |
| Power Amplifier Circuit | New UHC-MOS Single Push Pull (7) |
| Power Trans | Dual El Core |
| Pre Amplifier Circuit | Variable Gain Preamplifier (OP AMP) |
| Volume | Electric (MUSES 72323) |
| Bass / Treble / Mid / Balance Control | Yes / Yes / No / Yes |
| Type of Tone Control | Electric Controlled by Potentiometer |
| Headphone Circuit | Use Poweramplifier |
| Source Direct | Yes |
| Analog Amp Mode | Yes (button on front panel) |
| Other | 70 |
| DAC Circuit | PCM1795 |
| Digital Filter | Fixed |
| Digital Processing | Advanced AL32 Processing Plus |
| DAC Master Clock Design (Not Support Network Playback) | Yes |
| Asyncronous mode (for USB-B input) | yes |
| Isolator (for USB-B input) | Yes Full Isolation |

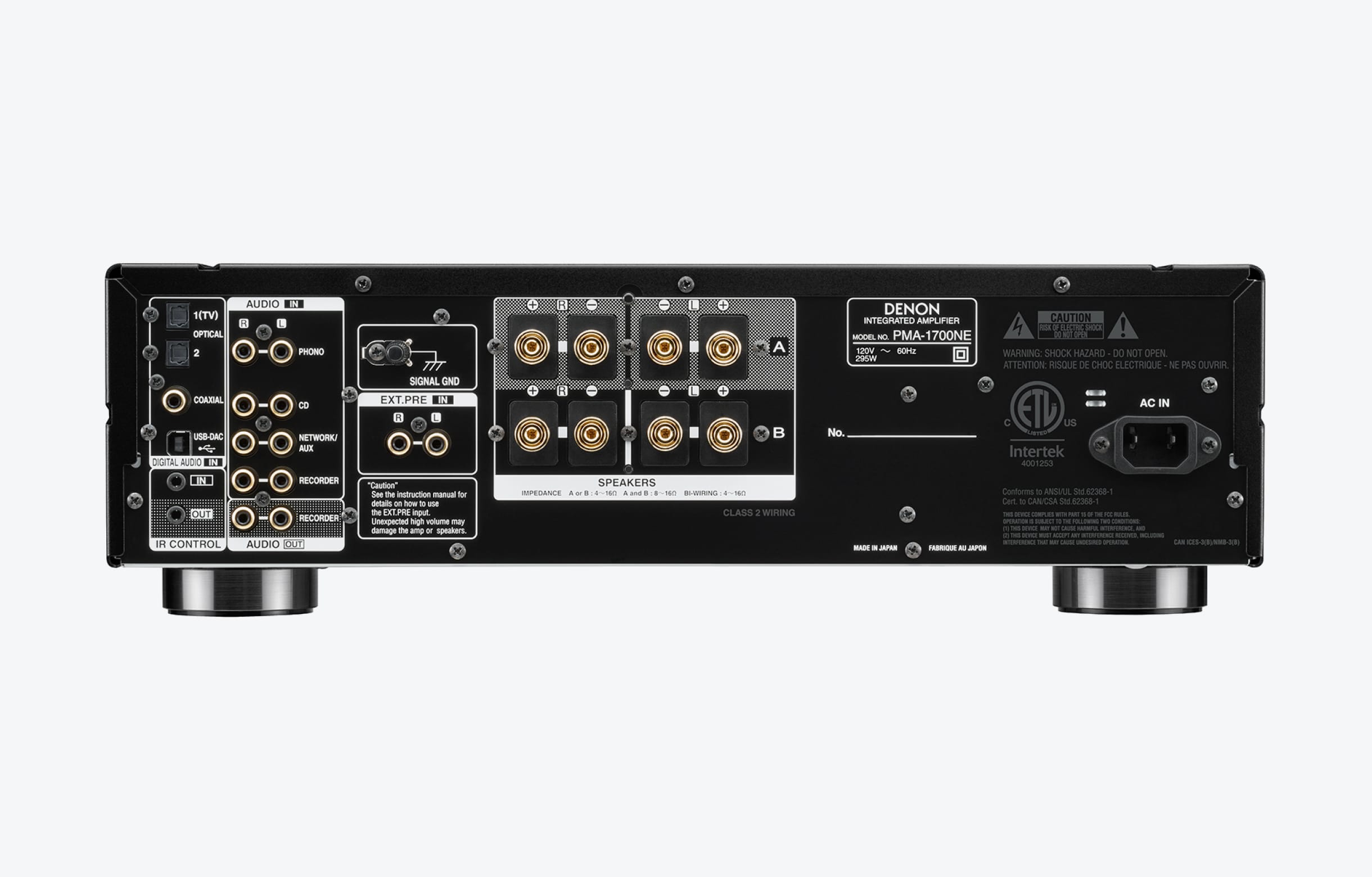

| Connectivity | |
| Phono Input | Yes (MM / MC) *default=MM |
| Analog Input (include Phono) / REC Out (RCA) | 4/1 (PHONO / CD / NETWORK ,AUX/ RECORDER) |
| Optical input / output (Maximum Support) | 2 / 0 (192kHz/24bit) |
| Coaxial input / output (Maximum Support) | 1 / 0 (192kHz/24bit) |
| Ext. Pre Input (Power Amp Direct) | Yes(Ext.Pre) |
| 2 sets of Speaker Output | Yes (Bi-wiring) |
| Speaker Terminal | Gold Plated |
| Headphone Output | 1 (Turn off the speaker when inserting headphone) |
| Remote Control Bus Terminal | Yes (mini) |
| AC Inlet | Yes |
| Wi-Fi | No |
| HEOS | No |
| USB B (USB DAC) | 1 (Rear) |
| Module or Main Device | New XMOS (XU210-256-TQ128 ) |
| PCM Sample Rate | ~384kHz/32bit |
| DSD Audio Streaming (DoP) | ~11.2MHz |
| Roon Certificaton | Yes(Roon Tested) TBD |
| Control | |
| Remote Controller | Yes |
| Unit control (Button) | Push Switch: 1 POWER Tact Switch : 3 ANALOG MODE, SOURCE DIRECT, MM / MC |
| Unit control (Knob) | 5 VOLUME, INPUT SELECTOR, BASS, TREBLE, BALANCE |
| LED | POWER: 1 Red / Green ANALOG MODE: 1 Green SOURCE DIRECT: 1 Green MM / MC :1 Green |
| Front Panel Display | Yes (OLED 128 x 100 dot) MXS4036-A |
| Display Language | Alphabetical |
| Dimmer for Front Display | Bright / Dim / Dark / Off |
| Control with App via Network Player (Use Remote Control Bus) | Yes |
| TV Auto-play (Opt/Coax digital-in detecter) | Yes |
| Last Function Memory | Yes |
| Auto Standby Mode | Yes |
| Owner's Manual | Web Manual E2: (English, German, French, Italian, Dutch, Spanish, Swedish, Polish, Russian) E3: (English, French, Spanish) E1C: (Simplified Chinese) JP: (Japanese) Paper JP: (Japanese) |
| Quick Start Guide | Paper E2: (English, German, French, Italian, Dutch, Spanish, Swedish, Polish, Russian) E3: (English, French, Spanish) E1C: (Simplified Chinese) JP: (Japanese) |
| Remote Controller | Yes |
| Battery | Yes (AAA x2) |
| Power Cord | Yes |
