Product Overview

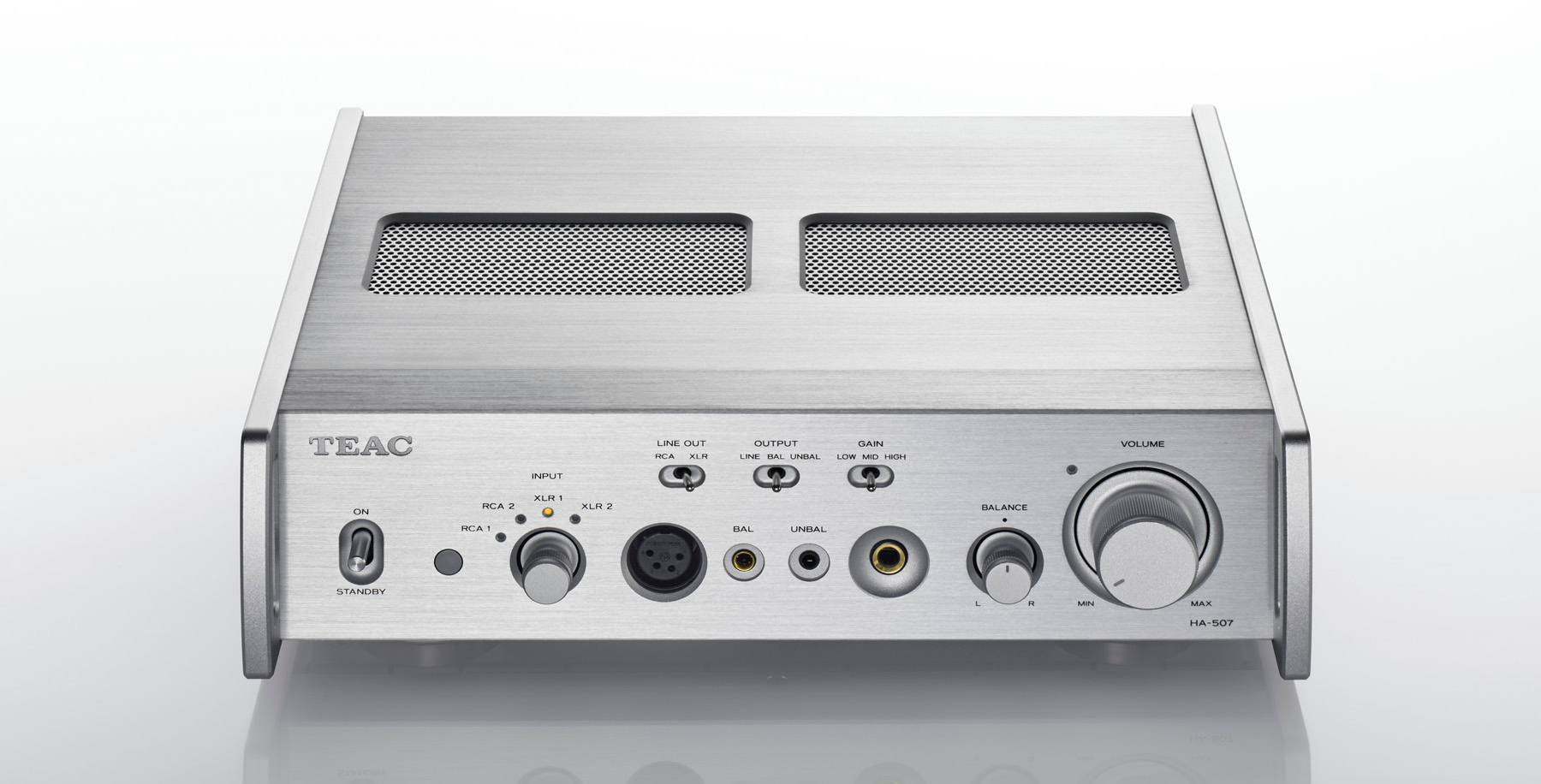

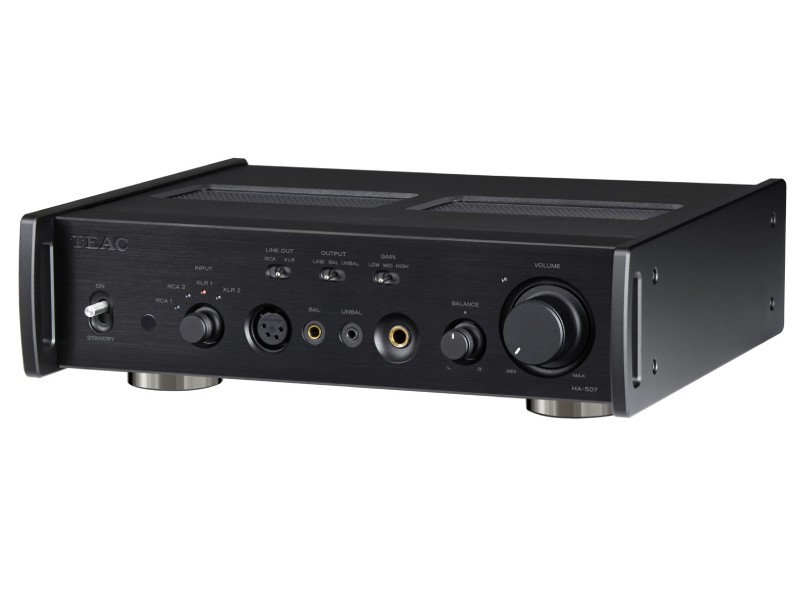

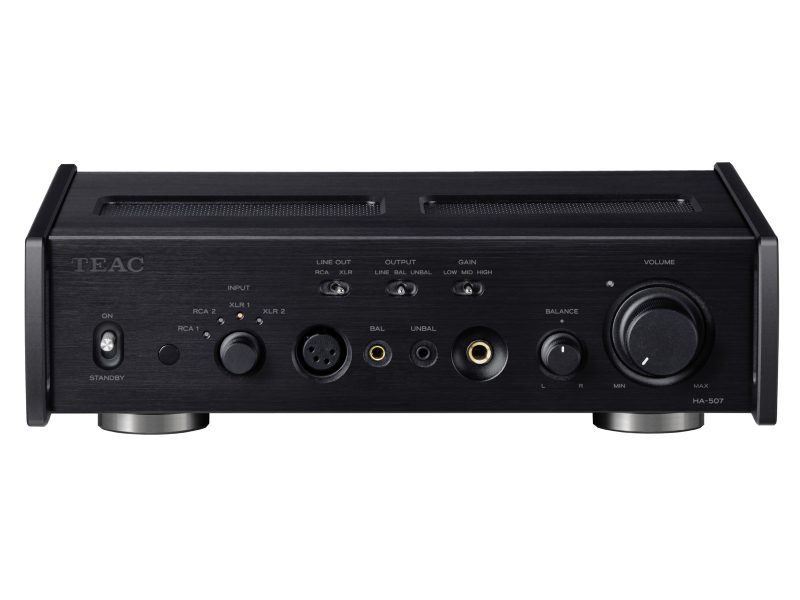

The HA-507 is a pure analog headphone amplifier/preamplifier that incorporates TEAC's premium audio technologies to achieve the highest level of sound quality.
Equipped with an extensive power supply circuit, the HA-507 has exceptional headphone driving power and an extremely wide frequency response that cannot be imagined from its compact appearance. When connected to the TRDD 5 discrete DAC, model UD-507, you can create a special headphone playback system with separate digital and analog sections.

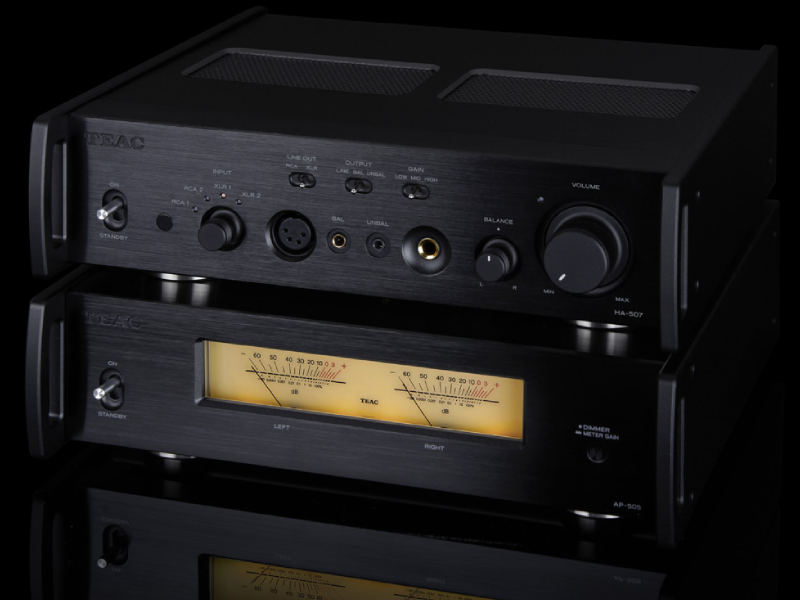

The HA-507 is a no-compromise headphone amplifier that can also be used as a pure analog preamplifier. When paired with a Reference 500 Series power amplifier, you can create a compact yet full-featured separate amplifier system that further enhances the quality of your loudspeaker listening experience.

Key Features

 Headphone Amplifier section

• High power, wide range, low distortion Class AB amplifier
• Fully balanced/dual mono configuration with extremely powerful/musical amplifier elements
• Exceptional headphone drive capability of 6,700mW + 6,700mW (32Ω) at balanced output
• Preamp pass-through function for use as a separate power amplifier for headphones
• Two balanced outputs: XLR 4-pin × 1, 4.4mm Pentaconn × 1
• Unbalanced outputs: 6.3mm × 1, 3.5mm × 1
• Switchable headphone output gain (high/mid/low)

 Preamplifier section

• Premium compact preamplifier built on TEAC's unparalleled excellence in audio design
• Fully balanced/dual mono configuration
• “TEAC-QVCS Advanced” with new super high precision, ladder resistor network
• Smooth, precise volume control in 0.25dB increments
• Lossless, long life FET input switching system without mechanical contacts
• “TEAC-HCLD 2 (High Current Line Driver 2)” provides fast and powerful external amplifier drive capability.

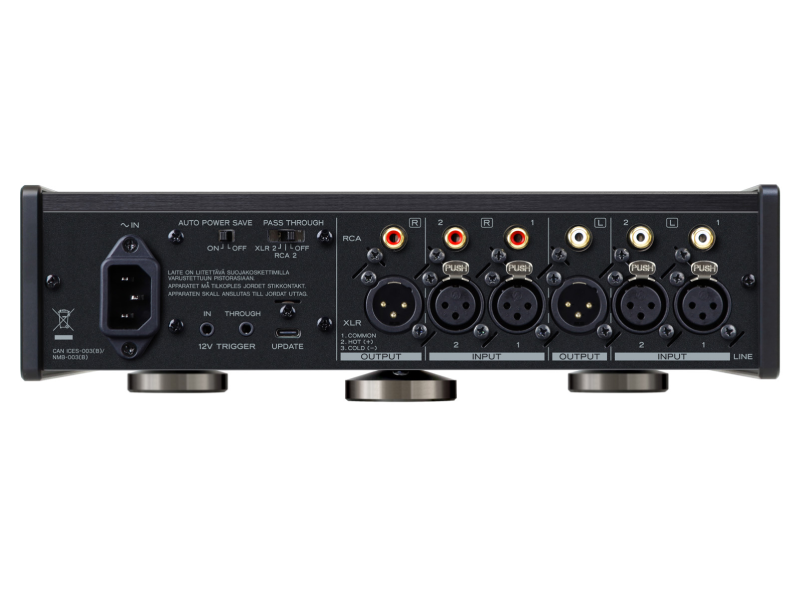

• Inputs: XLR × 2, RCA × 2
• Outputs: XLR × 1, RCA × 1

 Power Supply section

• Two independent power supplies (one for audio circuits and one for control circuits)
• Large toroidal power transformers with separate left and right windings exclusive for audio circuits
• 18,800μF per channel dual-mono configuration for dynamic, responsive sound
• High-quality power components, high-speed Schottky barrier diodes.
• Low-feedback, discrete regulated power supply circuit for excellent dynamics and imaging

 Mechanical Design, Additional Features

• Compact yet rugged A4-size aluminum chassis suitable for both audio rack and desktop applications
• Semi-floating 2.8mm thick aluminum top plate
• Stressless metal feet with three-point support for precise imaging and natural sound characteristics
• Fanless, highly efficient heat dissipation design
• Preamp pass-through for AV surround systems
• Trigger in/through terminals
• High grade aluminum knobs with patent-pending mechanism to prevent off-axis shaft movement

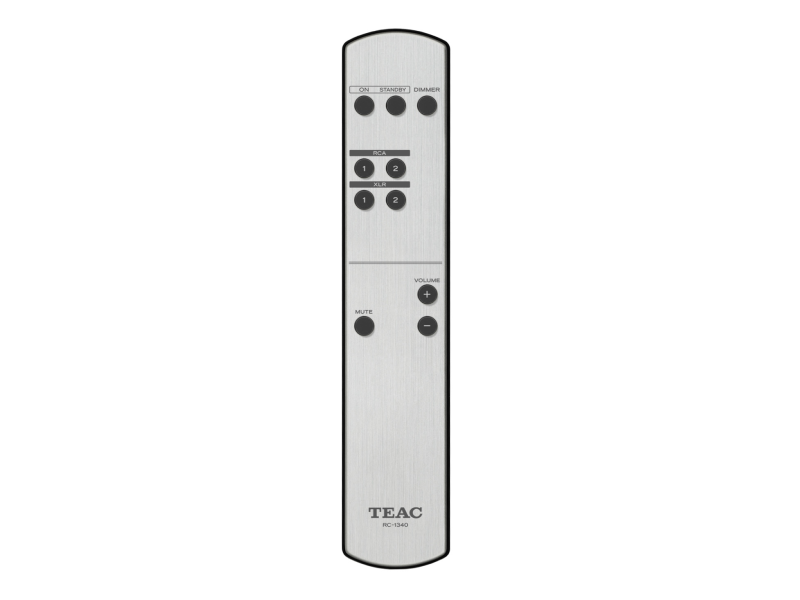

• RC-1340 dedicated remote control (AAA x 2), motorized volume control
• Available in two colors: silver and black
