15" JBL - S4700 3-way Floorstanding Loudspeaker - S4700
15-inch (380mm) 3-way Floorstanding Loudspeaker

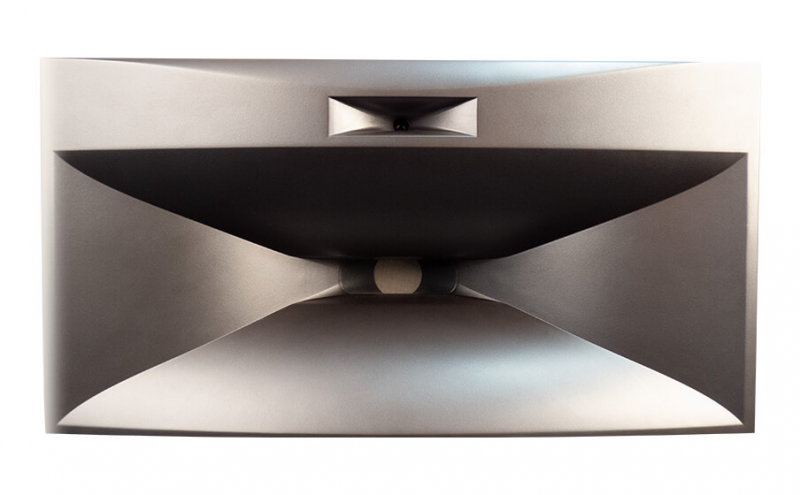

1.75-inch (45mm) Titanium diaphragm compression driver mated to a patented Bi-Radial horn.

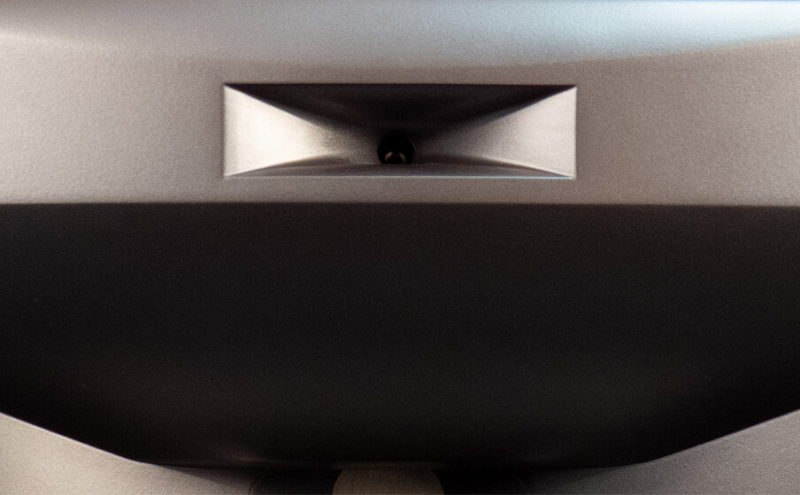

0.75-inch (19mm) Titanium diaphragm ultra high-frequency driver.

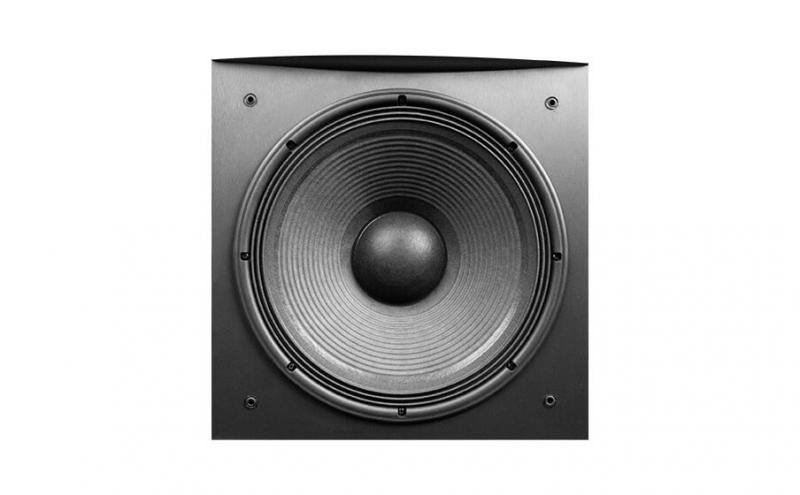

15-inch (380mm) pure-pulp cone woofer.
Furniture-grade cherry wood veneer enclosure.
Advanced crossover network.
Separate low-frequency and high-frequency rear-input terminals.

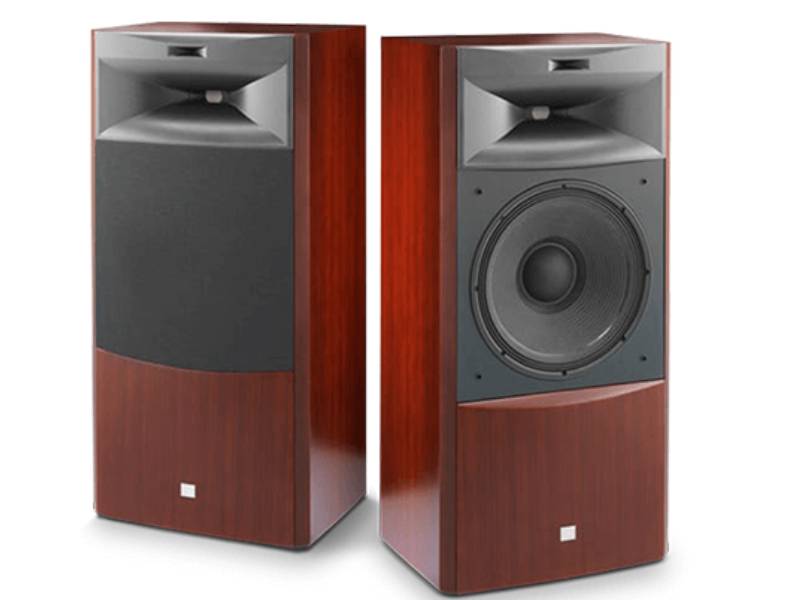

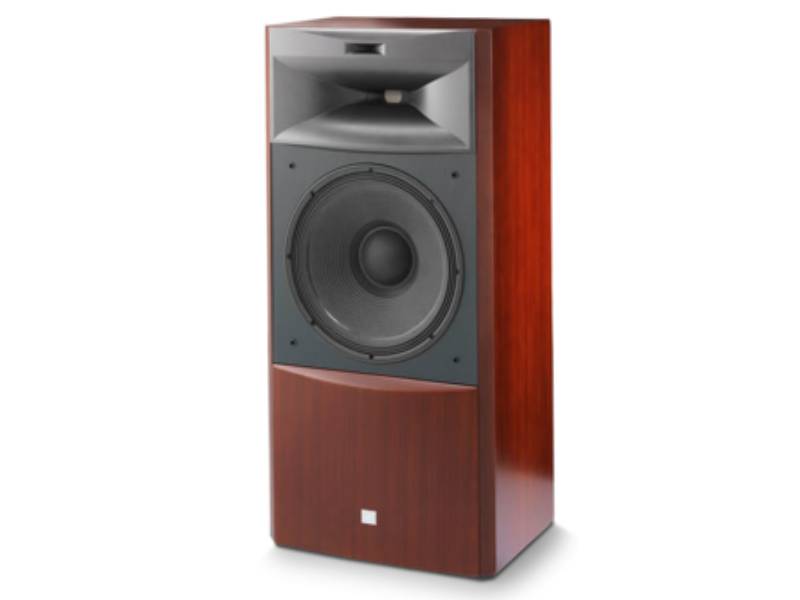

JBL S4700
The S4700 is a floorstanding 3-way high-performance loudspeaker built upon the same professional-grade technology used in the acclaimed Project K2 S9900, one of the most advanced and sophisticated loudspeakers in the world today. At its foundation, the S4700 uses a cast-frame 15-inch (380mm) woofer, a 1.75-inch (45mm) titanium compression driver and a 0.75-inch (20mm) titanium compression driver for lifelike dynamics and startling realism.
| General Specifications | |
|---|---|
| Description | 3-way Floorstanding Loudspeaker |
| Frequency Response | 38Hz - 40kHz (-6db) |
| Power Handling | 300W RMS |
| Sensitivity (2.83V @ 1m) | 94dB |
| Nominal Impedance | 6 Ohms |
| Crossover Frequencies | 80Hz, 12kHz |
| Dimensions (H x W x D) | 42.1" x 19.7" x 14.6" (106.8 x 50.0 x 37.1cm) |
| Net Weight | 120 lb (54.5kg) |
