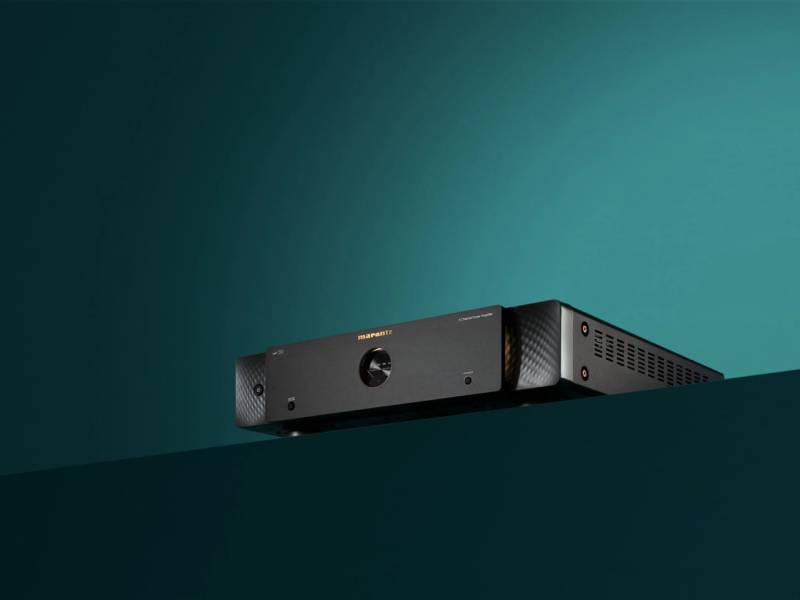

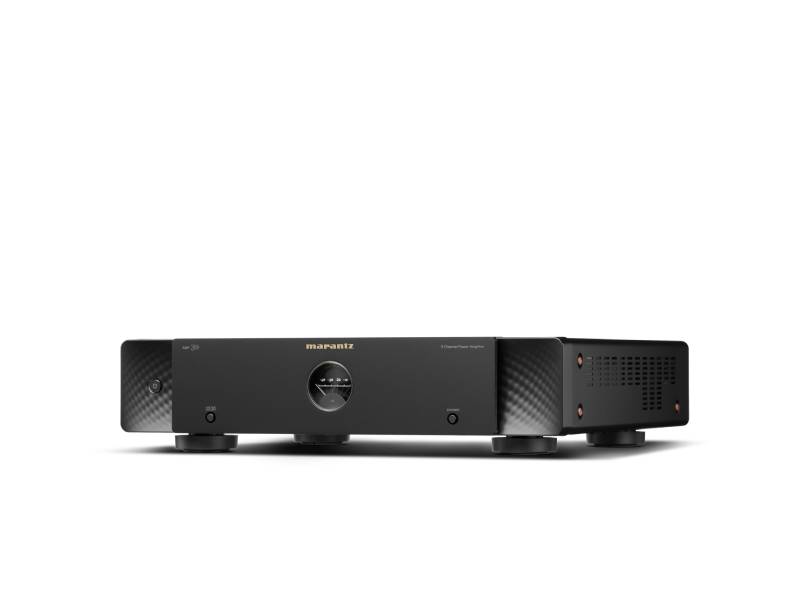

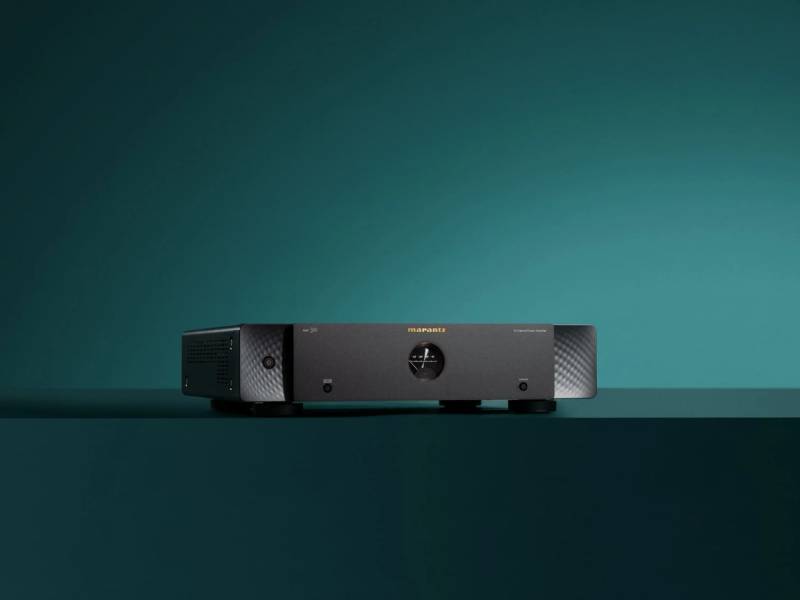

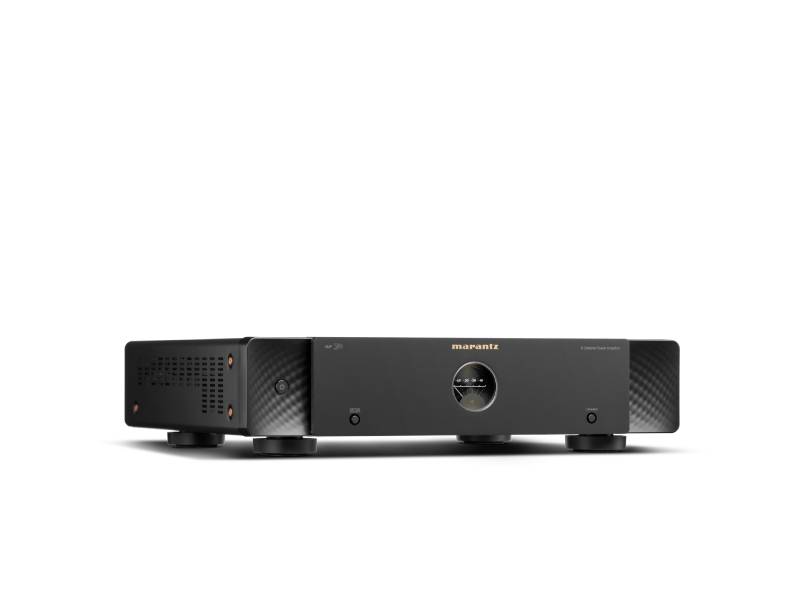

Marantz 6-Channel Power Amplifier with 200 Watts and Exclusive HDAM - AMP 30
AMP 30 is a remarkably powerful, slimline 6-channel amplifier that can be paired with an AV preamplifier for an outstanding home theater system. AMP 30 is rated at 200 watts per channel into 8 ohms and 400 watts per channel into 4 ohms, and is built on Marantz’s exclusive HDAM and high-efficiency low-distortion Class D amplification. Combine with additional AMP 30, AMP 20 or AMP 10 power amplifiers to drive more complex speaker configurations.
- Crafted in Shirakawa, Japan
- 6 Channels
- 200 Watts per Channel
- Exclusive HDAM
- Class D Amplification
- Selectable Output Modes
Flexible Power for Expanding Systems

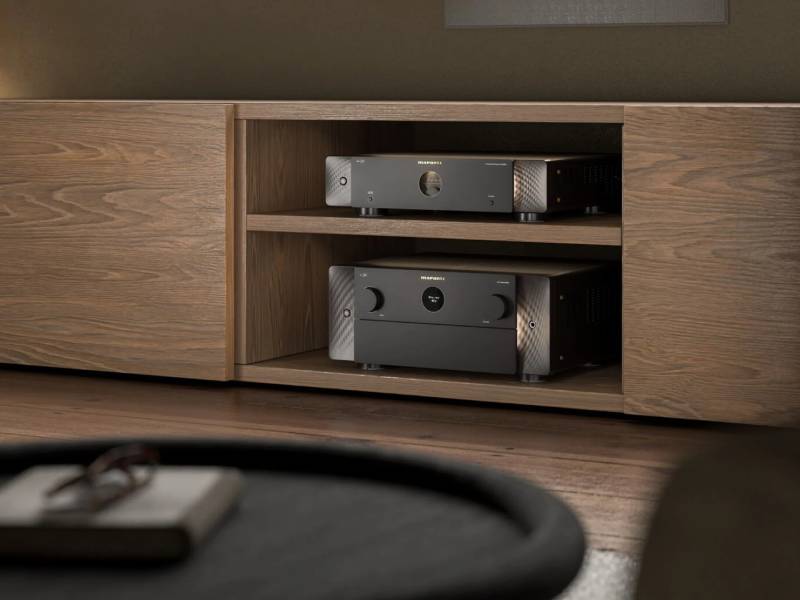

AMP 30 offers flexible system-building, pairing effortlessly with the AV 30, Marantz AV receivers, or additional AMP models to support larger, more immersive speaker configurations. It’s the ideal foundation for expanding your home theater with consistent power and signature Marantz performance.
Exceptional Performance

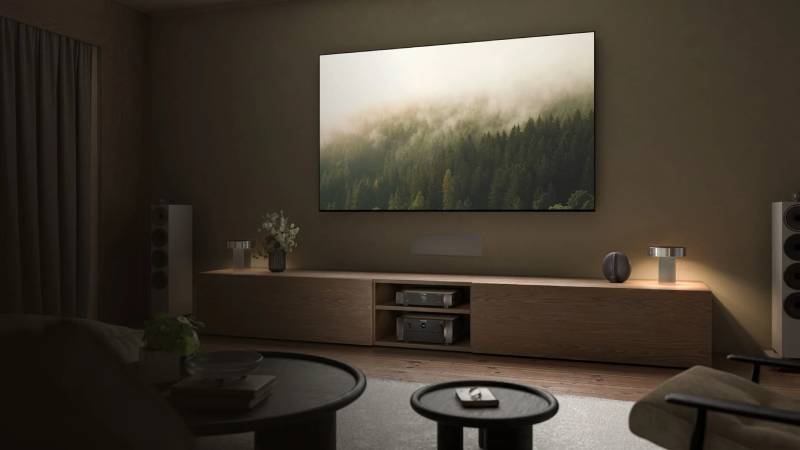

AMP 30 delivers a thrilling movie experience, with immersive spaciousness, extraordinary detail, and lifelike dynamics.
Easy Operation
When paired with a Marantz AV Separate via the included link cable, AMP 30 can be controlled using the preamplifier. Power and illumination settings sync seamlessly for a unified experience.
Technology Leader
AMP 30 is engineered using best-in-class technologies to enable extraordinary power output, slimline form factor, and the dynamic, rich, warm sound for which Marantz is renowned.
Elegant Design

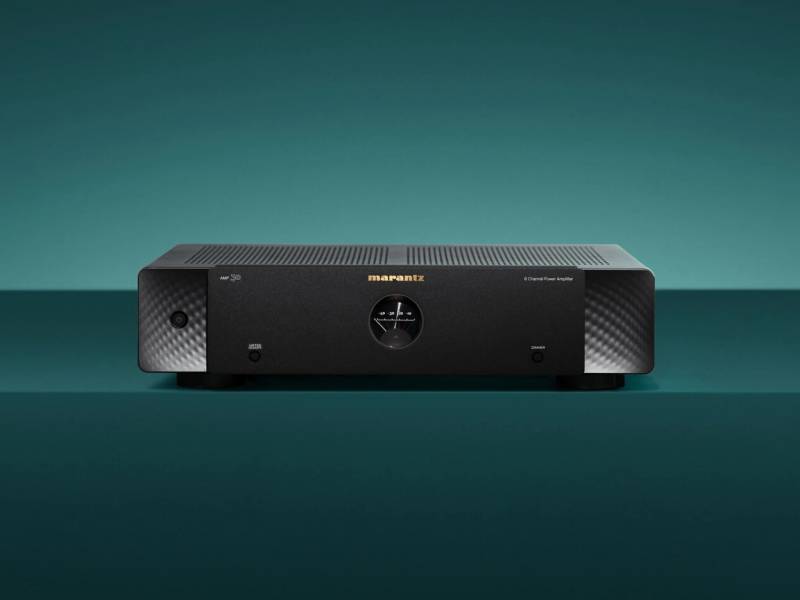

A modern expression of timeless design principles, AMP 30 features the iconic Marantz porthole level meter, premium materials, and subtle sidelights that illuminate the front panel.

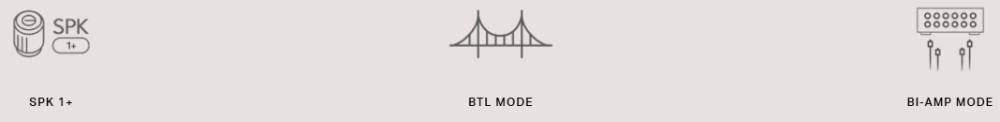

Key Technologies

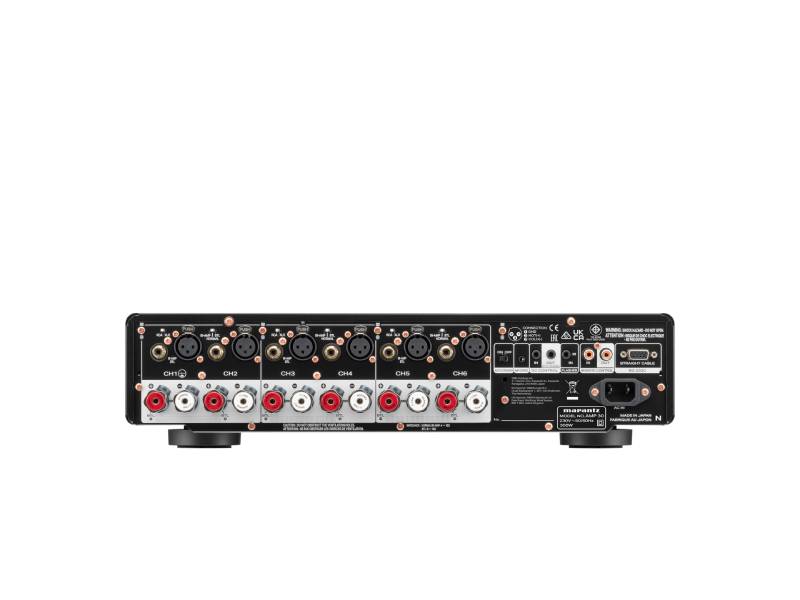

| Inputs Outputs | |
|---|---|
| Main Amplifier in | Balanced & Unbalanced: 6ch (Exclusive use by a selector switch.) |
| Speaker Terminal | SPKT-1+ |
| Number of Speaker Terminals | 6 |
| Bi-Amp Drive /BTL Drive | Yes / Yes |
| Level Meter | Yes |
| Multi-room CI | |
| RS232 Control | Yes |
| IR Flasher In | Yes |
| Marantz Remote Bus | Yes |
| DC Trigger Input/ Output | 1 / 1 |
| Specifications | |
| Number of Power Amps | 6 |
| Power Output (8 ohm, 1 kHz, 0.05% 2ch Drive) Normal / BTL | 200W / 400W |
| Power Output (4 ohm, 1 kHz, 0.7% 2ch Drive) Normal | 400W |
| Power Output (8 ohm, 1 kHz, 0.7% 5ch Drive) Normal | 200W |
| General | |
| Front Display | Level Meter |
| Auto Power Off | Yes |
| Metal Front Panel | Yes |
| Power Consumption | 300W |
| Power Consumption, No-Sound (ECO On / Off) | 70W |
| Standby Consumption | 0.2W |
| Maximum Dimensions (W × D × H) | 17.4 × 17.4 × 4.4 in. |
| Weight | 22.0 lbs |
| What's in the box | Main unit, quick start guide, AC cord, Amp control cable, Remote control cable |
| UPC code | 747192145699 |
| Limited Warranty (United States and Canada) | 5-year |
