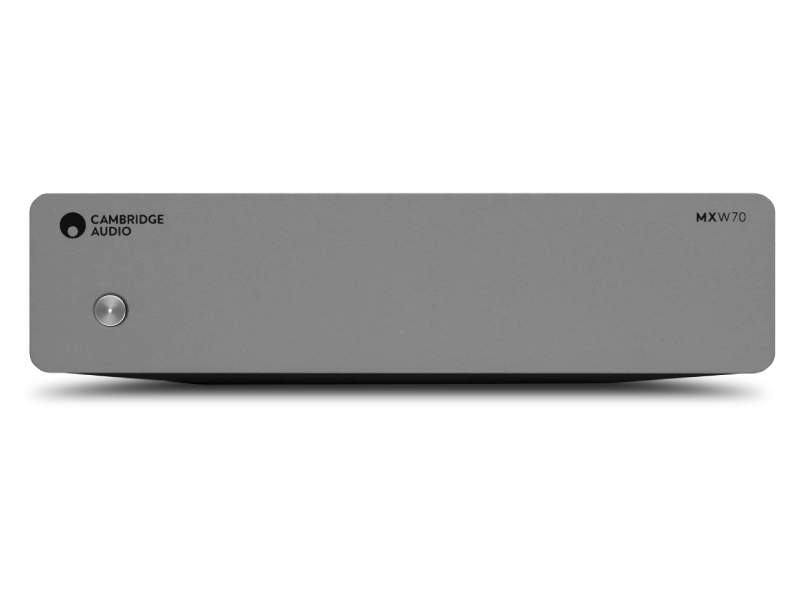

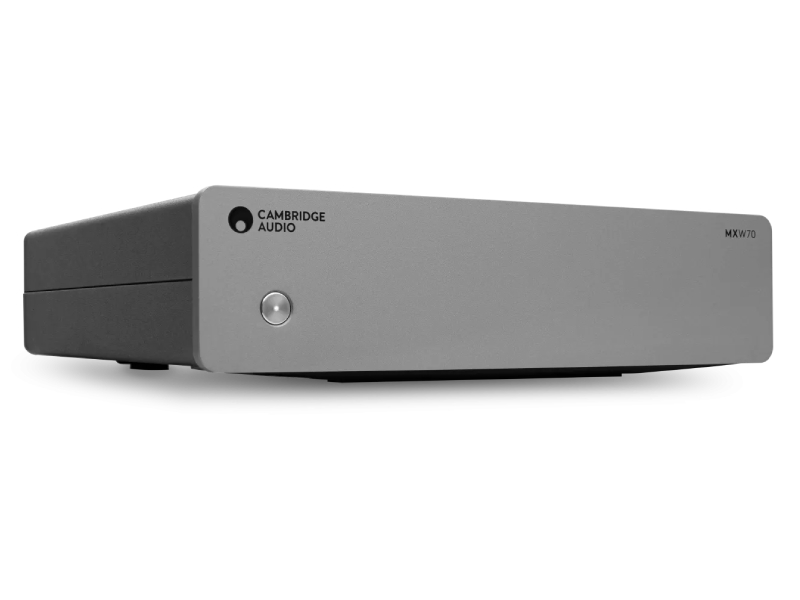

Cambridge Audio Compact Power Amplifier - MXW70
Musical muscle, compact footprint. MXW70 adds power and refinement to any setup, driving even difficult speakers without the bulk of other power amplifiers. It’s the perfect partner for our MXN10 Music Streamer, combining to form a half-width, high-performance streaming system.
Power aplenty
Don’t let its size fool you, MXW70 offers 70 Watts per channel of refined stereo power, bridgeable into mono mode for an impressive 250 Watts.

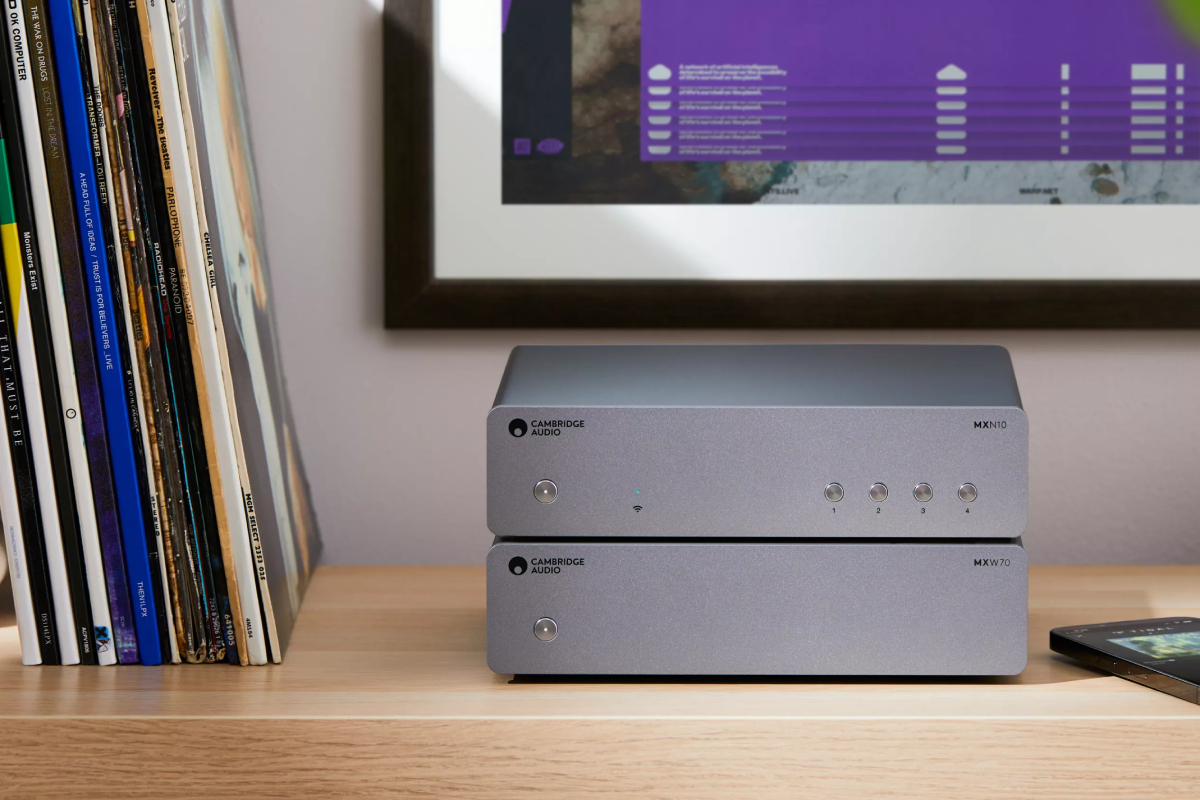

Super-compact system

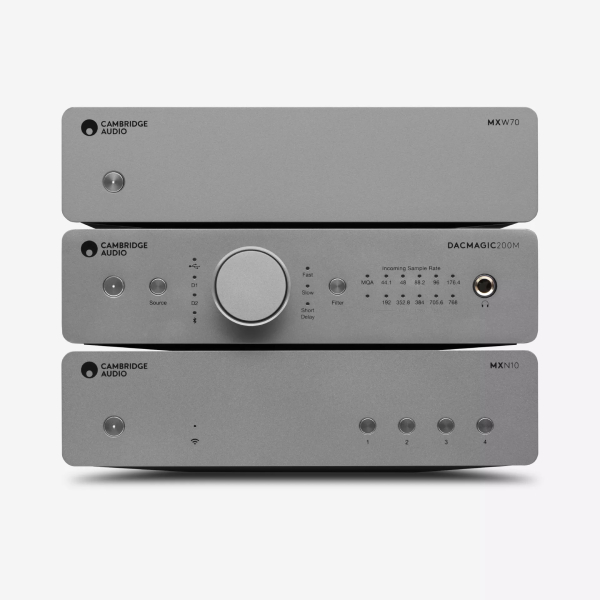

Combine the MXW70 with our award-winning MXN10 Music Streamer to form a complete compact streaming hi-fi stack. Add the DacMagic 200M DAC for further digital clarity and a hi-res headphone output.
Small yet mighty
Designed in London, MXW70 has been meticulously engineered to deliver outstanding high-fidelity amplification from a compact case that can fit into an existing setup or form the basis for a minuscule modern system.
Streaming simplicity, hi-fi sound
Hypex NCore Class D Amplification
MXW70’s efficient Class D amplification delivers smooth, dynamic, and powerful audio, easily driving a range of speakers.

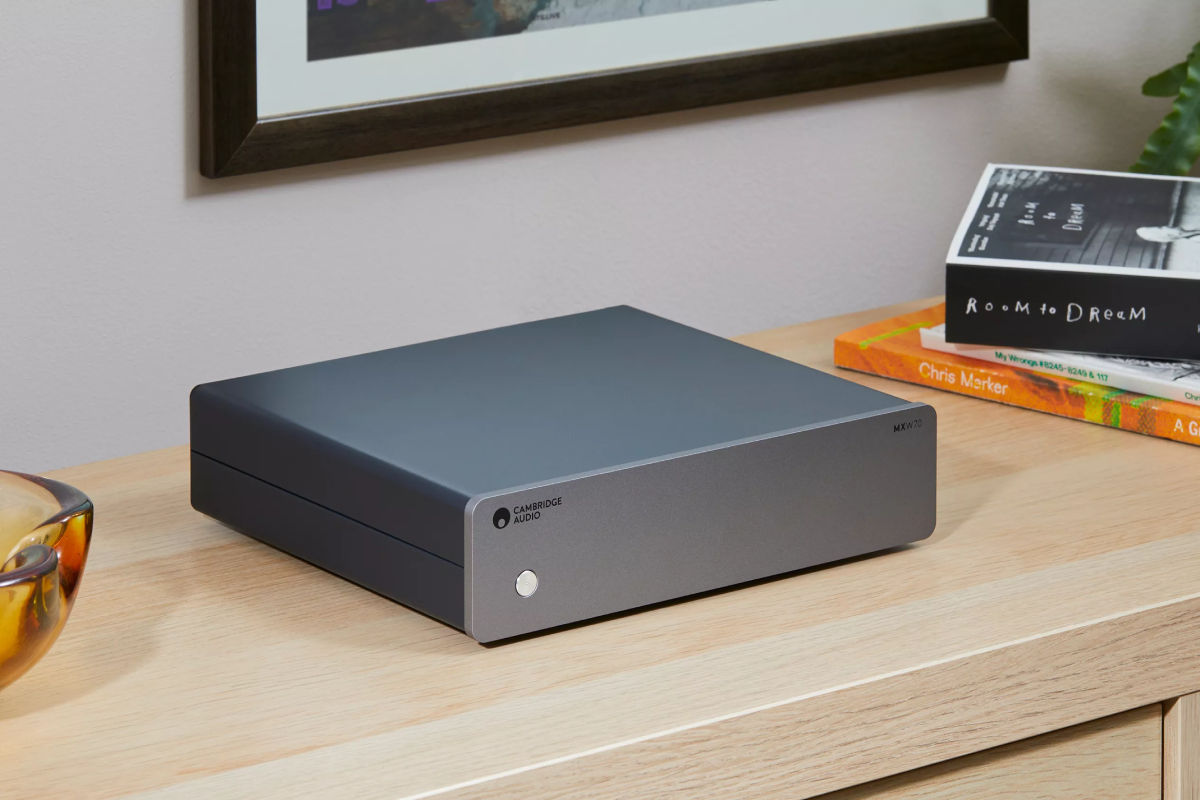

Compact footprint
At just 215mm wide, MXW70 conveniently fits wherever you need it, whether on a desk, in an entertainment unit or tucked away in a cupboard.

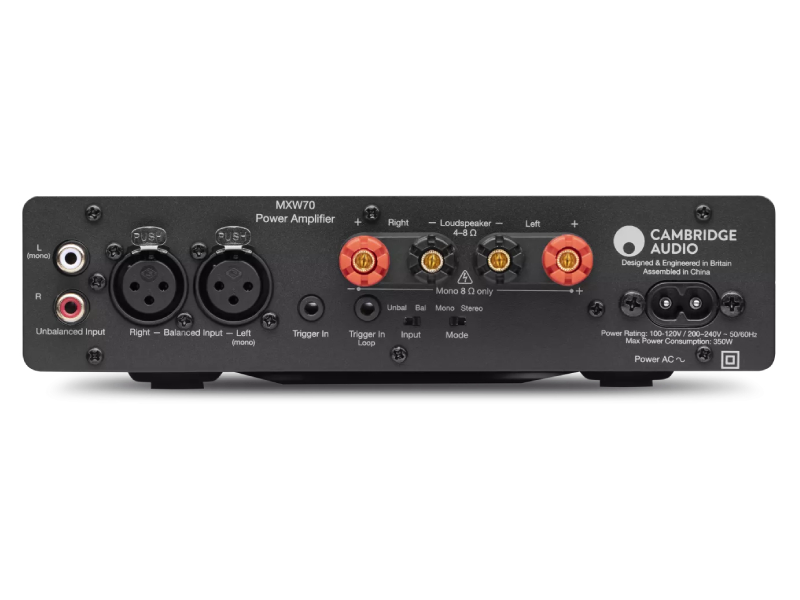

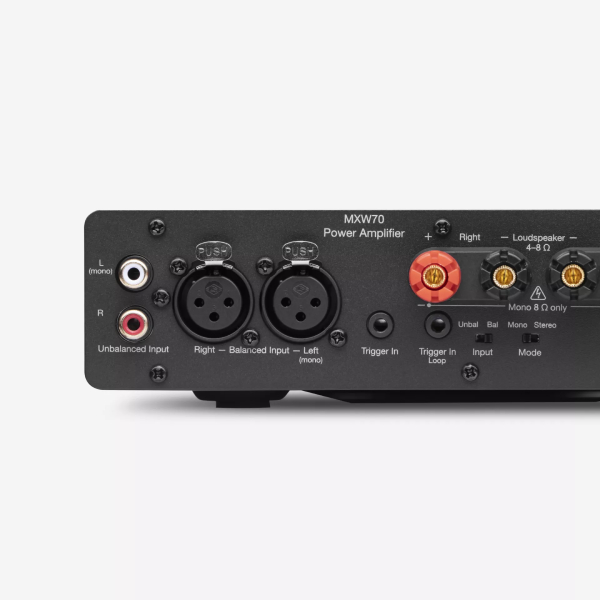

Wired for sound
As well as high-quality speaker outputs and stereo RCA inputs, MXW70 offers premium XLR inputs for noise-free, studio-grade signal transmission.

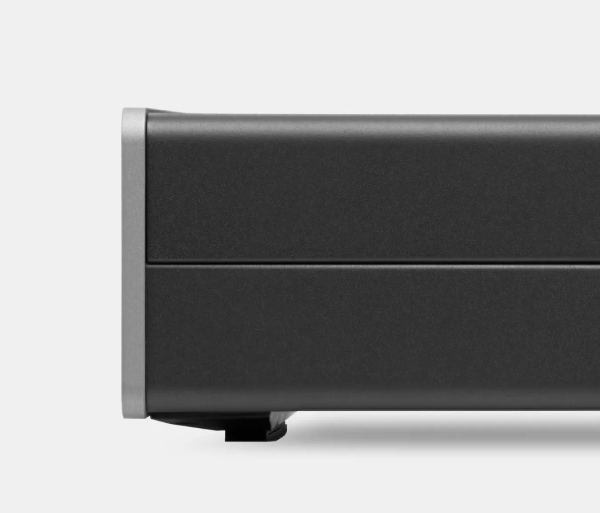

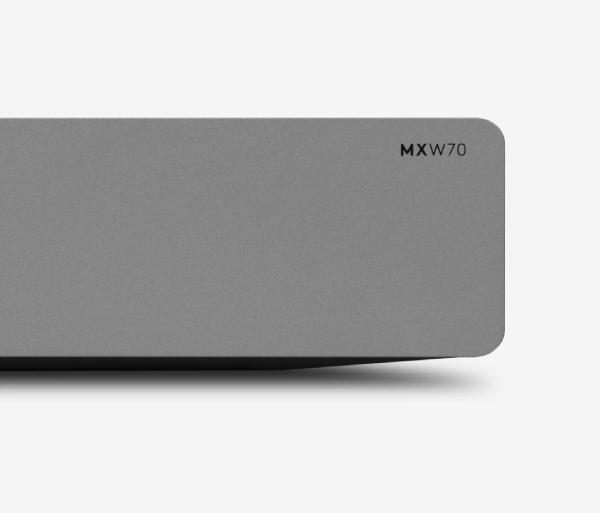

Full metal jacket
No compromises have been made in the build of our half-width champions. MXW70 features premium all-metal casework with a minimalist timeless design, flawlessly finished in our trademark Lunar Grey.
| Specifications | |
|---|---|
| Power output | 2x70W (8ohm stereo), 2x 125W (4ohm stereo), 250W (8ohm mono) |
| Speaker outputs | 1 set |
| Other outputs | 12v Trigger pass-through |
| Thd+n (unweighted) | <0.015% @ 5W/8ohm |
| S/n ratio (ref 1w - 20k bw) | >92dB (XLR), >89dB (RCA) |
| Crosstalk @1khz | <-82dB |
| Gain | 22.2dB (XLR), 28.8dB (RCA) |
| Input sensitivity | 3.6V (mono XLR), 1.65V (mono RCA), 0.9V (stereo RCA), 1.9V (stereo XLR) |
| Input impedances | 22kohm (RCA), 35kohm (XLR) |
| Power amp damping factor | >180 @ 1kHz 8ohm |
| Max power consumption | 300w |
| Standby power consumption | <0.5W |
| Dimensions (h x w x d) | 57 x 215 x 215mm |
| Weight | 1.65kg |
| In the box | Power cords, Welcome letter, Registration Card, Safety guide |
