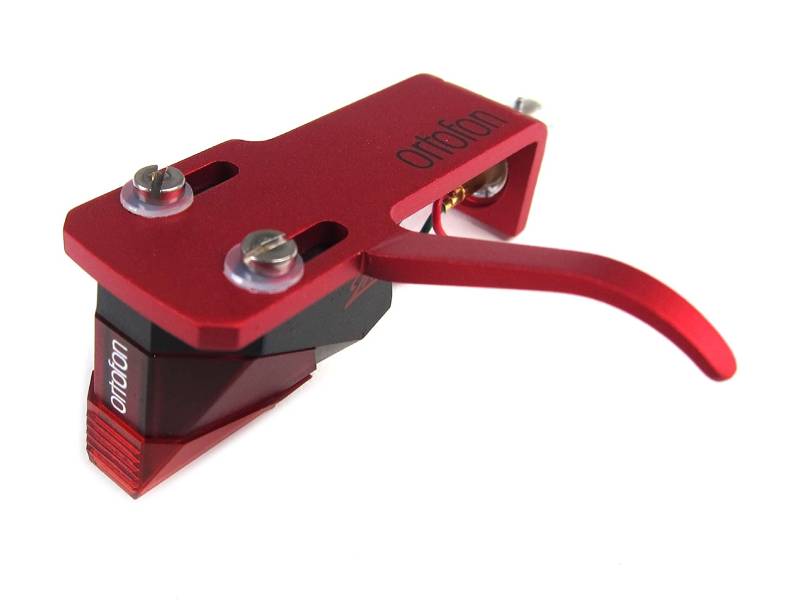

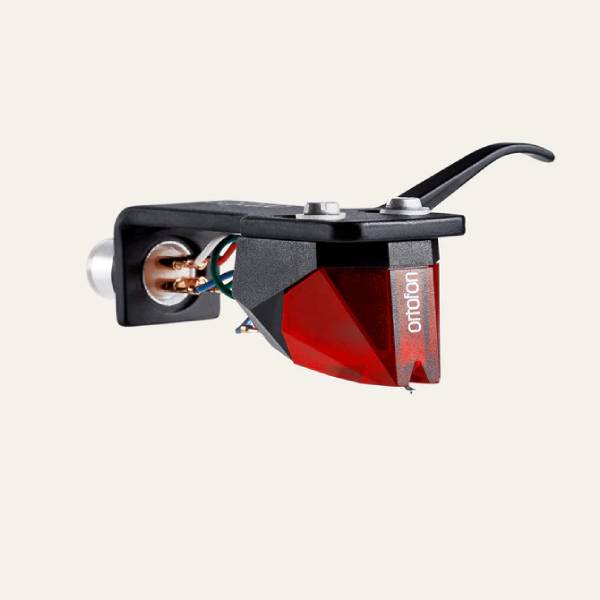

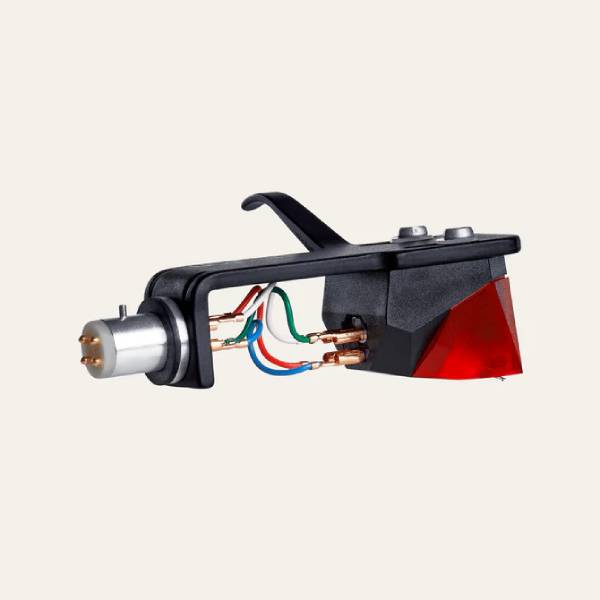

Ortofon 2M Red Premounted on Headshell - 2M Red on SH-4 Red

SKU : 2M Red on SH-4 Red

$215.00
Scheduled Delivery
Contact Us For Availability, Limited Quantities May Be Available
Contact Us

Literature

With the 2M Red Premounted, you will hear the music come to life on its own terms. It is like taking a step into music itself. This is our entry-level cartridge in the series, but what an entry.



Taking a step into music itself

Accuracy level

With the 2M Red Premounted, you will hear the music come to life on its own terms. It is like taking a step into the music itself. This is our entry-level cartridge in the series, but what an entry. The 2M Red delivers an open, dynamic sound with a slight touch of warmth..



It's never been easier to experience

Compatibility

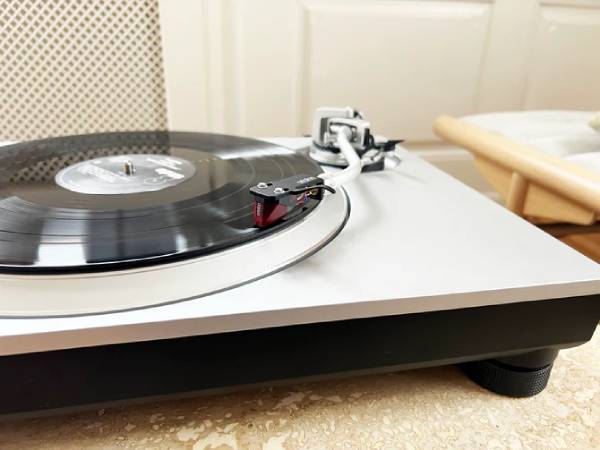

Experience the convenience of the 2M Red Premounted – a smart and refined choice for those seeking straightforward installation and effortless replacement on their S-shaped tonearm. The SH-4 headshell's resilience and stability are enhanced by its slender and refined design. A robust yet lightweight construction, coupled with an ergonomic, extended finger lift, ensures easy handling and pickup.



Split pole pin technology

The 2M Red features Ortofon’s very own invention: the split pole pins with a copper wire that gives you a sound reproduction so precise only your heart dares skip a beat.

The engine provides an increased output of 5.5 mV and an optimized sound reproduction and a high level of sonic accuracy. With the 2M Red, you will hear the music come to life on its own terms. It is like taking a step into the music itself. This is our entry-level cartridge in the series, but what an entry.


Specifications
Channel balance at 1 kHz1.5 dB
Output voltage at 1 kHz, 5cm/sec5.5 mV
Channel seperation at 1 kHz22 dB
Channel seperation at 15 kHz15 dB
Frequency response 20 Hz - 10 kHz3 / - 1 dB
Tracking ability at 315Hz at recommended tracking force70 µm
Compliance, dynamic, lateral20 µm/mN
Stylus typeElliptical
Stylus tip radiusr/R 8/18 µm
Tracking force range1.6-2.0 g (16-20 mN)
Tracking force, recommended1.8 g (18 mN)
Tracking angle20°
Internal impedance, DC resistance1.3 kOhm
Cartridge colourBlack/Red
Cartridge weight7.2 g
Premounted cartridge weight16.7 g
Reccomended load resistance47 kOhm
Internal inductance700 mH
Recommended load capacitance150-300 pF
