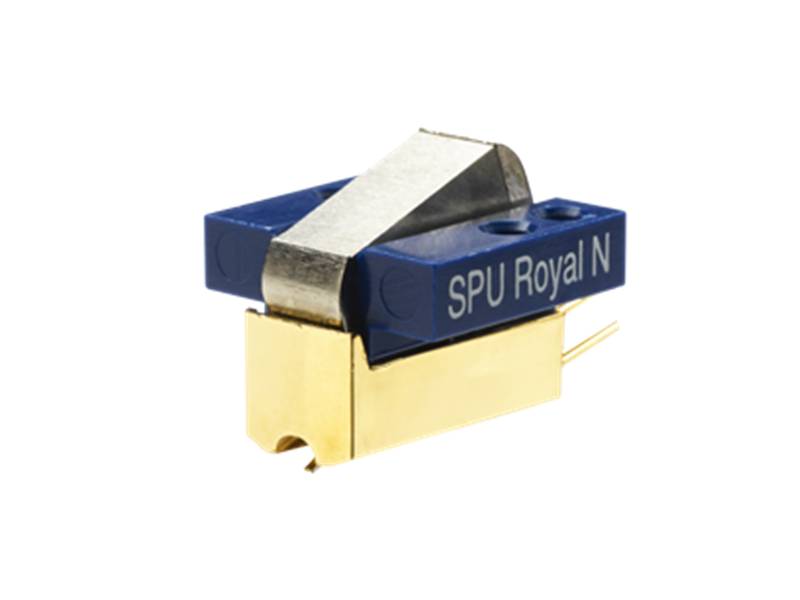

Ortofon Moving Coil Cartridge (Blue) - SPU Royal N
$3,769.00
OR
$172.75/mo
+ taxes/fees
Up to 24 month financing
Up to 24 month financing
Literature
The addition of Ortofon’s unique Replicant 100 stylus and reduced tip mass ensures open and detailed sound reproduction for a purely exquisite listening experience.
Electrum coils, consisting of a gold and silver alloy, provides uncolored and precise transmission of armature movements while the slightly modified damping system makes it possible to reduce VTF and achieves a higher level of linearity.
High purity 6-nines copper wiring ensures impeccable signal transmission and preservation of the finest of microdynamic detail.
| Specifications | |
|---|---|
| Output voltage at 1000 Hz, 5cm/sec. | 0.2 mV |
| Channel balance at 1 kHz | < 1 dB |
| Channel separation at 1 kHz | > 25 dB |
| Channel separation at 15 kHz | > 20 dB |
| Frequency response | 20-20.000 Hz + 1,5/- 0 dB |
| Tracking ability at 315Hz at recommended tracking force *) | > 70 µm |
| Compliance, dynamic, lateral | 8 µm/mN |
| Stylus type | Nude Ortofon Replicant 100 |
| Stylus tip radius | r/R 5/100 µm |
| Tracking force range | 2.5-3.5 g (25-35 mN) |
| Tracking force, recommended | 3.0 g (30 mN) |
| Tracking angle | 20° |
| Internal impedance, DC resistance | 6 ohm |
| Recommended load impedance | > 100 ohm |
| Coilwire material | Electrum |
| Cartridge colour | Black |
| Cartridge weight | 13 g |
