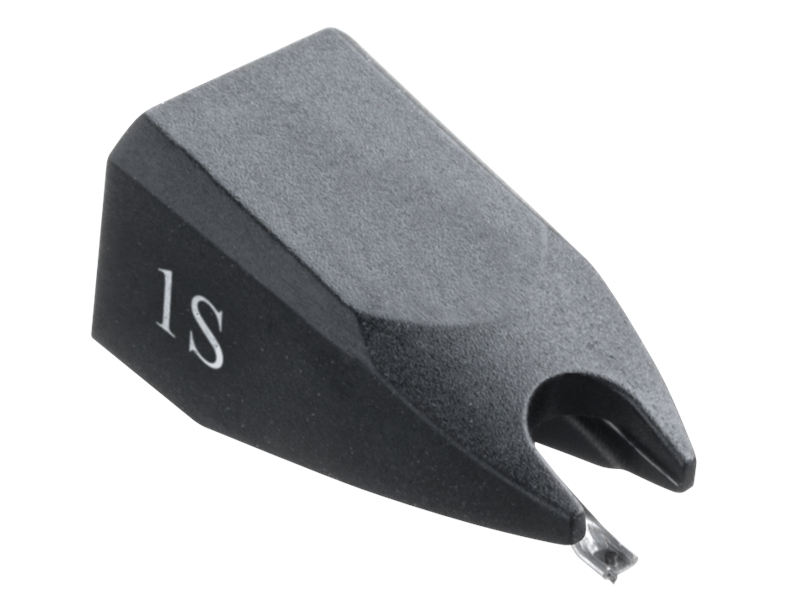

Ortofon Replacement Stylus For OM 1S - Stylus 1s
$57.00
Literature
Ortofon Replacement Stylus For OM 1S - Stylus 1s
| Specifications | |
|---|---|
| Frequency range at -3dB | 20-20.000 Hz |
| Frequency response | 20-22.000 Hz |
| Tracking ability at 315Hz at recommended tracking force *) | 60 µm |
| Compliance, dynamic, lateral | 20 µm/mN |
| Stylus type | Spherical |
| Stylus tip radius | R 18 µm |
| Tracking force range | 1.5-2.0 g (15-20 mN) |
| Tracking force, recommended | 1.75 g (17,5 mN) |
| Tracking angle | 20° |
| Stylus colour | Black |
| Recommended for | OM 1S |
