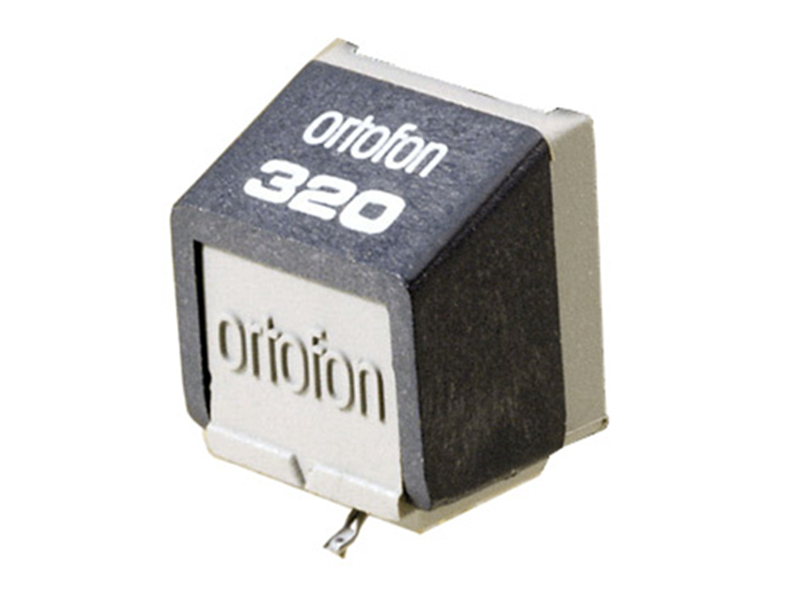

Ortofon Replacement Stylus For Series 320 Universal - Stylus 320
$123.00
Literature
Ortofon Replacement Stylus For Series 320 Universal - Stylus 320
| Specifications | |
|---|---|
| Frequency response | 20-22.000 Hz |
| Tracking ability at 315Hz at recommended tracking force *) | 70 µm |
| Compliance, dynamic, lateral | 25 µm/mN |
| Stylus type | Elliptical Fine Line |
| Stylus tip radius | r/R 8/40 µm |
| Equivalent stylus tip mass - | 0.5 mg |
| Tracking force range | 1.25-17.5 g (12.5-17.5 mN) |
| Tracking force, recommended | 1.5 g (15 mN) |
| Tracking angle | 20° |
| Stylus colour | Grey |
| Recommended for | Series 300 |
