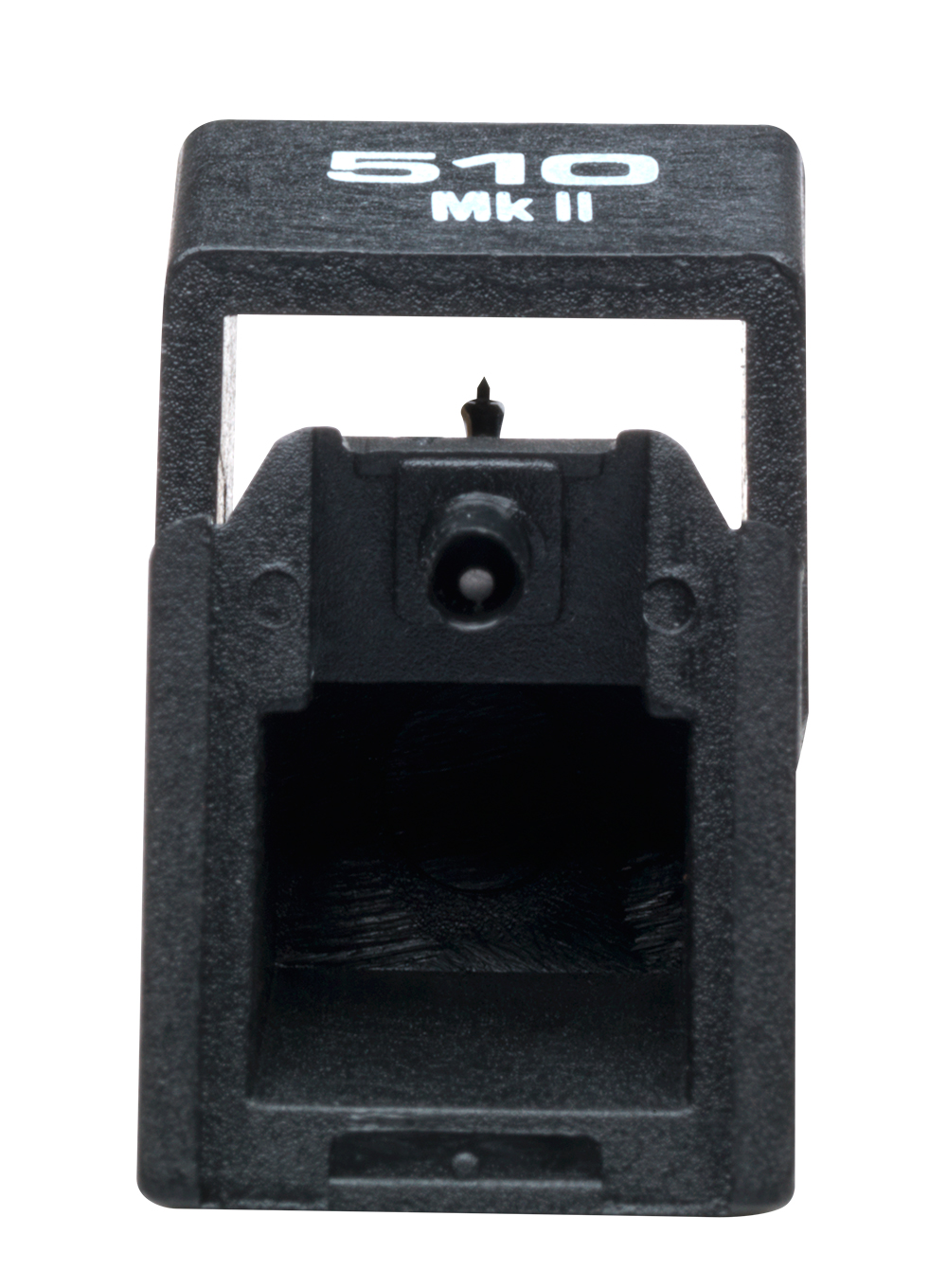

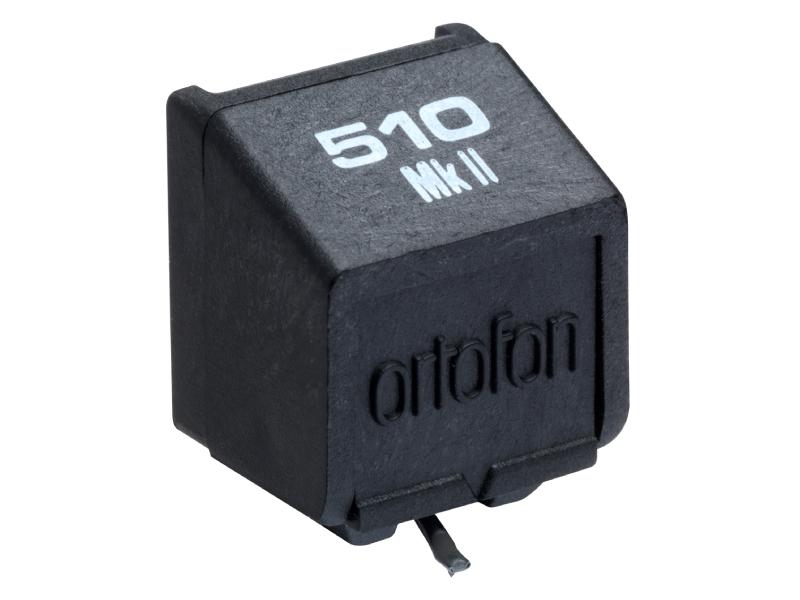

Ortofon Replacement Stylus - Stylus 510 MKII
$144.00
Literature
Ortofon Replacement Stylus - Stylus 510 MKII
| Specifications | |
|---|---|
| Frequency response | 20-23.000 Hz |
| Tracking ability at 315Hz at recommended tracking force *) | 70 µm |
| Compliance, dynamic, lateral | 25 µm/mN |
| Stylus type | Elliptical |
| Stylus tip radius | r/R 8/18 µm |
| Equivalent stylus tip mass | 0.3 mg |
| Tracking force range | 1.25-1.75 g (12.5-17.5 mN) |
| Tracking force, recommended | 1.5 g (15 mN) |
| Tracking angle | 20° |
| Stylus colour | Black |
| Recommended for | Series 500 Mkll, 510, 510 P, Alfa |
