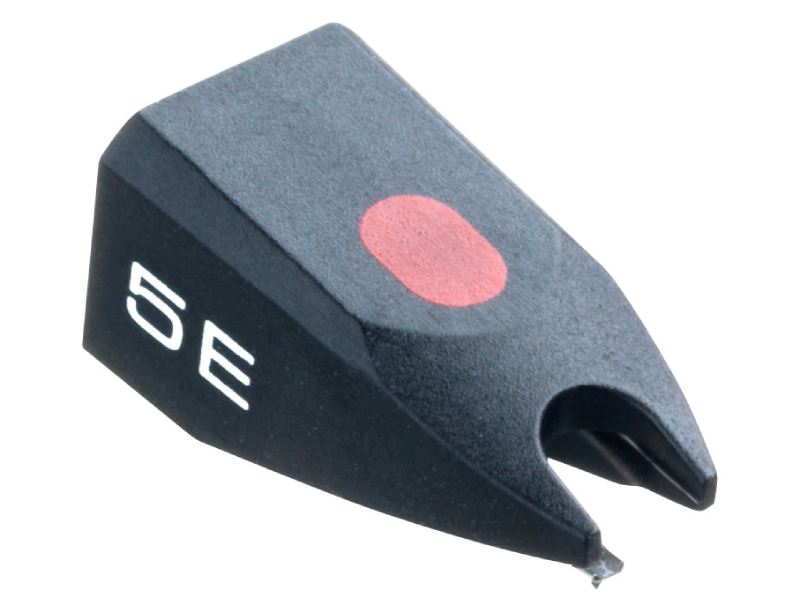

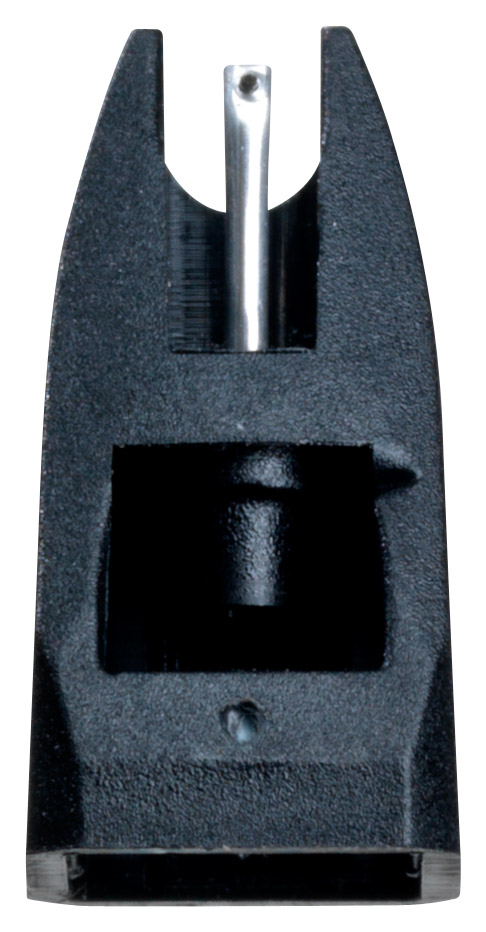

Ortofon Replacement Stylus For OM-5e - Stylus 5e
$87.00
Literature
Ortofon Replacement Stylus For OM-5e - Stylus 5e
| Specifications | |
|---|---|
| Frequency range | 20-25.000 Hz |
| Frequency response | 20-25.000 Hz |
| Tracking ability at 315Hz at recommended tracking force *) | 65 µm |
| Compliance, dynamic, lateral | 20 µm/mN |
| Stylus type | Elliptical |
| Stylus tip radius | r/R 8/18 µm |
| Equivalent stylus tip mass | 0.5 mg |
| Tracking force range | 1.5-2.0 g (15-20 mN) |
| Tracking force, recommended | 1.75 g (17.5 mN) |
| Tracking angle | 20° |
| Stylus colour | Black |
| Recommended for | OM 5E, Super OM 5, OMP 5E, OMB 5E, OMT 5E |
