Ortofon Replacement Stylus In Black - Stylus 78
$129.00
Literature

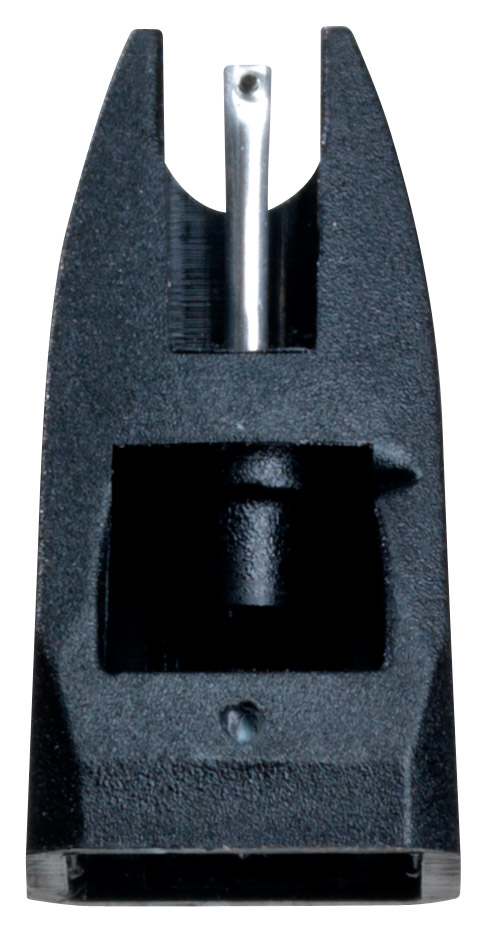

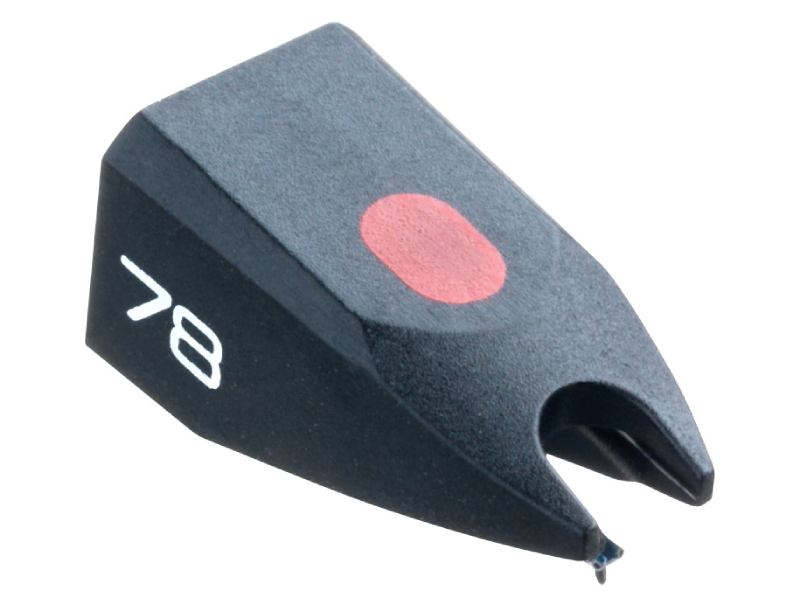

Ortofon Replacement Stylus In Black - Stylus 78
| Specifications | |
|---|---|
| Frequency range | 20-15.000 Hz |
| Frequency response | 20-12.000 Hz + 2 / - 3 dB |
| Tracking ability at 315Hz at recommended tracking force *) | 60 µm |
| Compliance, dynamic, lateral | 15 µm/mN |
| Stylus type | Spherical |
| Stylus tip radius | 65µm |
| Equivalent stylus tip mass | 0,5 mg |
| Tracking force range | 1.75-2.25 g (17.5-22.5 mN) |
| Tracking force, recommended | 2.0 g (20 mN) |
| Tracking angle | 20° |
| Stylus colour | Black |
| Recommended for following cartridges | all Super OM, OM, OMB, OMP, TM, Concorde STD cartridges for playing 78 r.p.m. records |
