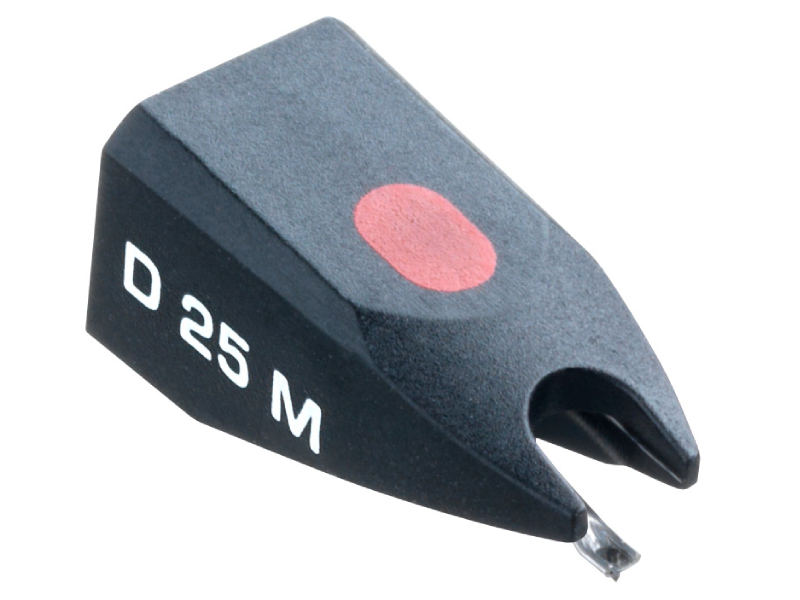

Ortofon Replacement Stylus In Black - Stylus D25M
$129.00
Literature
Ortofon Replacement Stylus In Black - Stylus D25M
| Specifications | |
|---|---|
| Frequency range | 20-20.000 Hz |
| Frequency response | 20-18.000 Hz + 2 / - 3 dB |
| Tracking ability at 315Hz at recommended tracking force *) | 70 µm |
| Compliance, dynamic, lateral | 7 µm/mN |
| Stylus type | Spherical |
| Stylus tip radius | R 25µm |
| Equivalent stylus tip mass | 0.5 mg |
| Tracking force range | 2.0-3.0 g (20-30 mN) |
| Tracking force, recommended | 2.5 g (25 mN) |
| Tracking angle | 20° |
| Stylus colour | Black |
| Recommended for following cartridges | all Super OM, OM, OMP, TM, Concorde cartridges for playing micro-groove records. |
