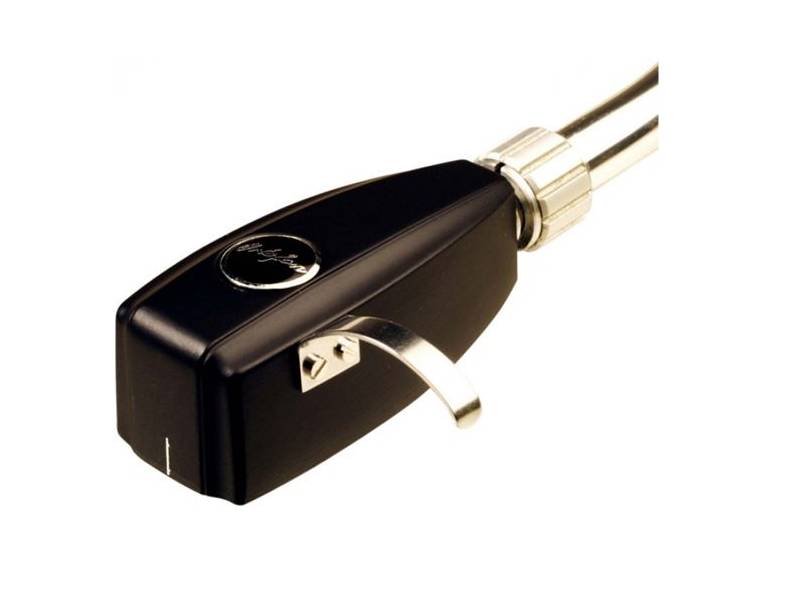

Ortofon SPU Style Moving Coil Cartridge - Mono CG 65 DI MKII
$1,710.00
OR
$78.38/mo
+ taxes/fees
Up to 24 month financing
Up to 24 month financing
Literature
The SPU Mono CG 65 Di MkII for the playback of early 65 µm mono and 78 rpm recordings
The Mono CG 65 Di MkII is an SPU-style Moving Coil cartridge with a spherical stylus profile. The CG 65 Di MkII provides an authentic method of playing back these early recordings with a remarkable level of sonic accuracy, regardless of the materials used to manufacture these discs.
This cartridge features a 1.5mV output, which makes it suitable for use with a variety of medium-gain moving coil transformers. Ortofon ST-M25 moving coil transformer is designed exclusively for the SPU Mono CG 25 Di MkII and SPU Mono CG 65 Di MkII.
| Specifications | |
|---|---|
| Output voltage at 1000 Hz, 5cm/sec. | 1.5 mV |
| Frequency response | 20-15.000 Hz + 3/- 1 dB |
| Tracking ability at 315Hz at recommended tracking force *) | > 60 µm |
| Compliance, dynamic, lateral | 7 µm/mN |
| Stylus type | Spherical |
| Stylus tip radius | R 65 µm |
| Tracking force range | 4.0-5.0 g (40-50 mN) |
| Tracking force, recommended | 4.5 g (45 mN) |
| Tracking angle | 20° |
| Internal impedance, DC resistance | 6 ohm |
| Recommended load impedance | > 100 ohm |
| Cartridge body material | Ground wood and resin composite |
| Coilwire material | High Purity Copper (OFC) |
| Cartridge colour | Black matte |
| Cartridge weight | 37 g |
