Project Audio Measure it S2 Stylus Force Gauge with Digital Display - PJ07689488

SKU : PJ07689488

$149.99
Scheduled Delivery
Contact Us For Availability, Limited Quantities May Be Available
Contact Us

Literature

Electronic stylus balance

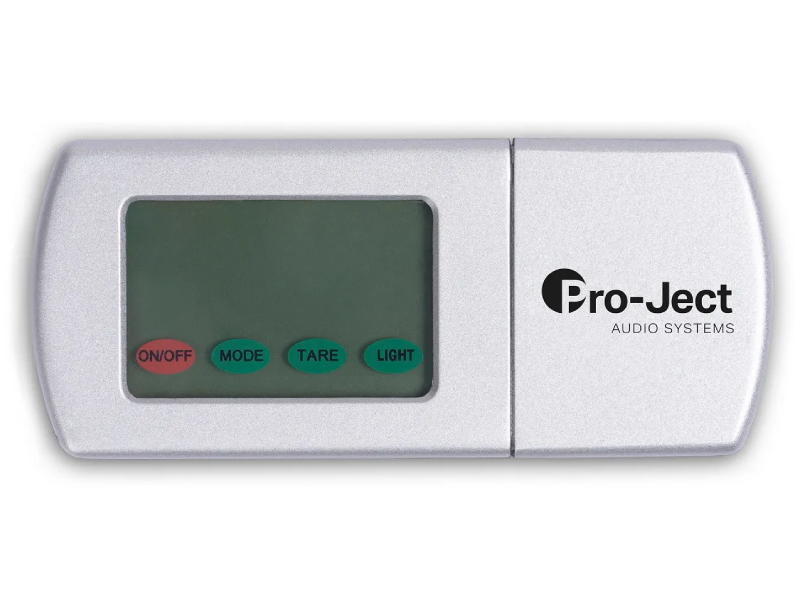

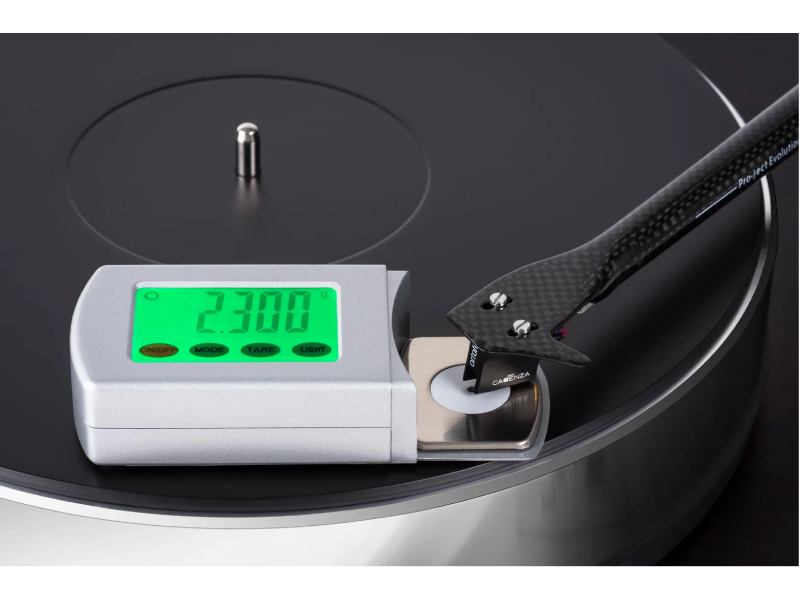

The Measure it S2 Stylus Tracking Force Gauge is a highly accurate electronic balance that is designed for measuring stylus trackingforces up to 5.0 grams in 0.001 gram increments. Each Measure it S2 can easily be calibrated with the included calibration weight. The Measure it S2 has a solid aluminum housing with a 4-digit LCD backlit display. Whenever in doubt about the actual amount of pressure on the diamond tip the 4 digit display of this smart tool will help. Armed with precise information about tracking force, your stylus tip wear can be significantly reduced.

Scope of delivery:

  • stylus balance
  • calibration weight
  • screwdriver
  • 2x AAA batteries
  • protection case for the meter
  • user guide

Features

  • 4 digit LCD-Display with backlight
  • Capacity 0 - 5g
  • Variance ±0,001g
  • Auto calibration function
  • Auto off after 60 seconds
  • Replacement batteries supplied
Technical Specifications
Capacity0 - 5g
Variance±0,001g
Weighting modesgram (1g = 10mN), ounce (oz), pennyweight (dwt) and carat (ct)
Display4 digit LCD with backlight
CalibrationAuto calibration using a 5g weight
Auto off60 seconds off
Replacement battery2 x AAA cells, 1,5V
Operating temperature+10 - +30°C (50 - 86 degrees Fahrenheit)
Dimensions (W x H x D)122 x 27 x 55mm
Weight170g
