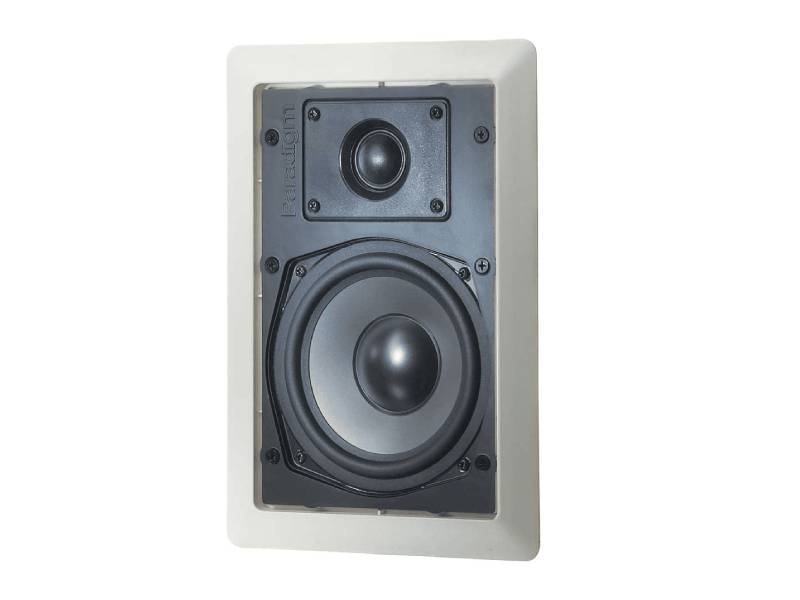

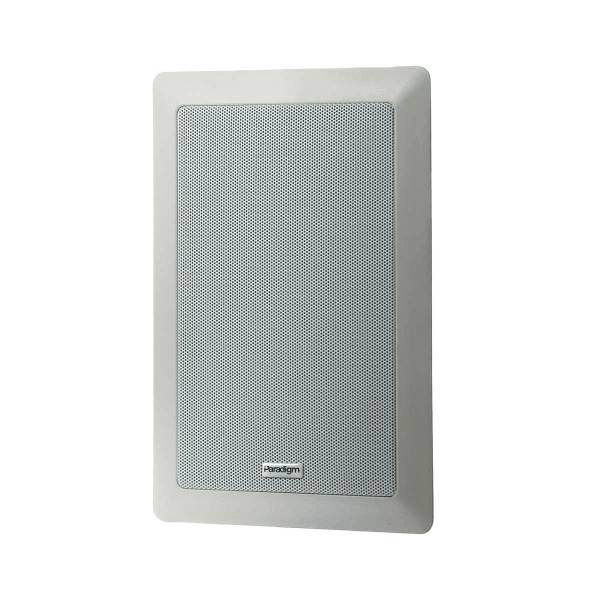

Paradigm 2 Driver 2 Way In Wall Speaker - PV-150

SKU : PV-150
$299.99
Save $200.00
clearance
Scheduled Delivery
Contact Us For Availability, Limited Quantities May Be Available
Contact Us
Delivery and Installation Available

Literature

2-driver, 2-way in-wall / in-ceiling, IRP™ chassis / spring clamps

Specifications
DESIGN2-driver, 2-way in-wall / in-ceiling, IRP™ chassis / spring clamps
CROSSOVER2nd-order electro-acoustic at 2.5 kHz
HIGH FREQUENCY DRIVER25-mm (1 in) silk dome
FREQUENCY RESPONSE ON-AXIS±2 dB from 75 Hz - 20 kHz
FREQUENCY RESPONSE 30° OFF-AXIS±2 dB from 75 Hz - 18 kHz
MID/BASS FREQUENCY DRIVER140-mm (5-1/2 in) mineral-filled polypropylene cone
SENSITIVITY ROOM / ANECHOIC88 dB / 84 dB
LOW FREQUENCY EXTENSION60 Hz (DIN)
SUITABLE AMPLIFIER POWER RANGE15 - 70 watts
MAXIMUM INPUT POWER40 watts
IMPEDANCECompatible with 8 ohms
OVERALL DIMENSIONS10.5" (26.7cm) Height 7.375" (18.7cm) Width " (0.0cm) Depth
CUT-OUT DIMENSIONS9.1875" (23.3cm) Height 6" (15.2cm) Width
MINIMUM INTERNAL VOLUME REQUIRED0.22 cu ft (6 L)
MINIMUM MOUNTING DEPTH (DEPTH REQUIRED IS THE DISTANCE BETWEEN 1/2" DRYWALL, OR SIMILAR MATERIAL.)2.3125" (5.9cm)
WEIGHT3.7 lbs. (1.7 kg)
FINISHESWhite, paintable
