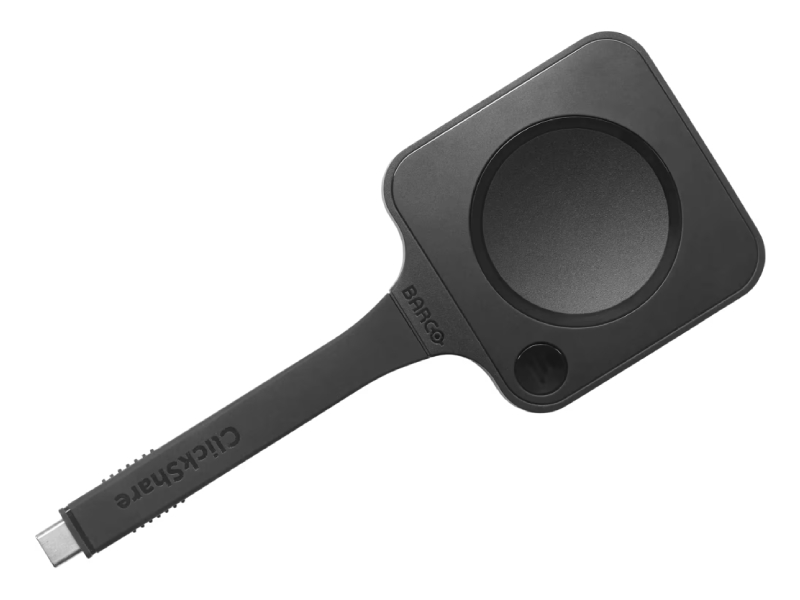

Barco Next‑Gen ClickShare Button - R9861700D01C
The iconic ClickShare Button experience, now with next-gen performance
- 4K content sharing for highly visual, impactful meeting experiences
- Better internet speed with Wi-Fi 6E for smooth collaboration
- Guest-friendly, one-click sharing via USB-C DisplayPort™; no software or driver downloads needed
- Secure and stable connection for uninterrupted meetings
- Compatible with all major operating systems
The enhanced ClickShare Button 5th gen brings you the same simplicity you know — now powered with smarter technology and sharper performance. Just plug it into your laptop to instantly share ultra-high-definition content or join video calls wirelessly. With a focus on ease, speed, and visual impact, it’s designed to boost every meeting experience and enable crystal-clear presentations with zero friction.
Expected to be available end of 2025.
Smarter connectivity. Greater control.
- ClickShare Button 5th gen features Wi-Fi 6E, delivering faster speeds, lower latency, and reduced interference for a more stable, reliable connection.
- Supports USB-C DisplayPort™, enabling easy connection and sharing without needing to install any software or driver.
- Enhanced control with a deliberate press required to start sharing, preventing accidental content display and protecting your privacy.
- Broad compatibility with all major operating systems (Linux, Windows, MacOS, Chrome, etc.) and high-security environments ensures seamless integration in any meeting space.
Part of the ClickShare Hub experience
The 5th gen Button is a key component of ClickShare Hub wireless video conferencing room system. It delivers the iconic one-click sharing experience with next-generation performance, enabling wireless 4K content sharing for highly visual, impactful meeting experiences.
Whether integrated with the modular flexibility of Hub Core or the dual-display power of Hub Pro, the new 5th gen Button completes the experience, bringing simplicity, speed, and security to every hybrid meeting
- Hub Core is equipped with 1 next-gen Button for secure, modular video conferencing with 4K content sharing
- Hub Pro includes 2 next-gen Buttons and brings dual display support for even more immersive collaboration
| Specifications | |
|---|---|
| Video outputs | Up to 4K (3840x2160) 30fps |
| Connectors | USB Type-C 3.1 Gen1, supports USB-C DisplayPort™ Mode |
| Authentication protocol | WPA3-SAE in stand alone mode |
| Wireless transmission protocol | IEEE 802.11 a/b/g/n/ac/ax |
| Reach | Max. 30m (100ft) between ClickShare Button and ClickShare Base Unit |
| Frequency band | 2.4GHz, 5GHz and 6GHz |
| Temperature range | Operating: 0°C + 40°C (+32°F to +104°F) Storage: -20°C to +60°C (-4°F to + 140°F) |
| Humidity | Storage: 0 to 95% relative humidity, non-condensing Operation: 0 to 85% relative humidity, non-condensing |
| Dimensions (HxWxD) | 16 x 63 x 161.3 (mm) |
| Power consumption | Powered over USB 5V DC 600mA Typical 900mA Maximum |
| Weight | 88gr |
