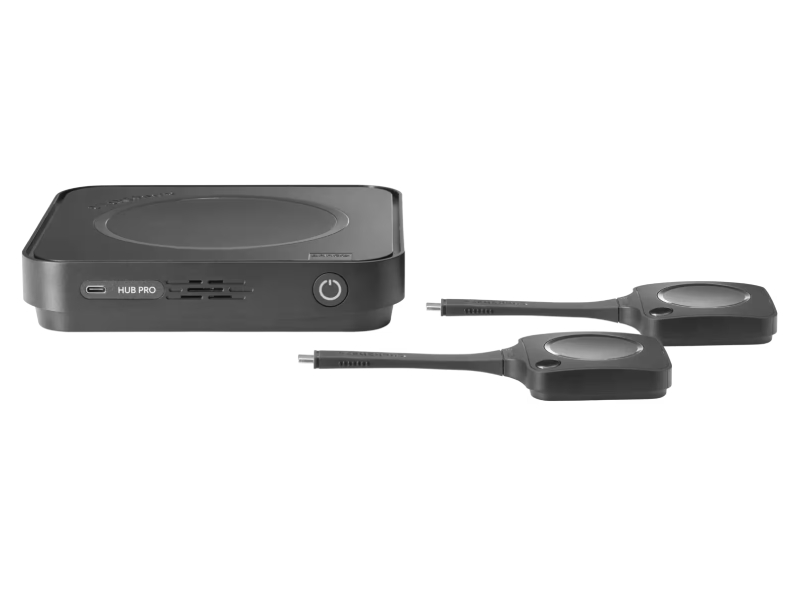

Barco ClickShare Hub Pro EU with 2 Buttons - R9861710EUB2
Premium modular video conferencing room system for enhanced hybrid meetings
- Wireless presentation: 4K content sharing with 2 next-gen ClickShare Buttons with USB-C DisplayPort™
- Dual display support
- Secure by design, cloud-managed, and built on the Microsoft Device Ecosystem platform (MDEP)
- Sustainable product with Barco Eco label A+
ClickShare Hub Pro* is a premium, modular wireless video conferencing system for enhanced hybrid meetings.
The Hub Pro works either with the ClickShare Control Panel** or a touch screen of your choice, and it enables participants to start their meeting with a simple tap. Sharing 4K content is just as easy with two next-gen ClickShare Buttons. Paired with dual display support, the Hub enhances engagement and collaboration.
For IT managers and integrators, ClickShare Hub Pro offers a customizable solution for all room types. Built on the Microsoft Device Ecosystem Platform (MDEP), it guarantees enterprise-grade security and compliance.
*Expected to be available end of 2025.
**The Control Panel is not included in the current package.

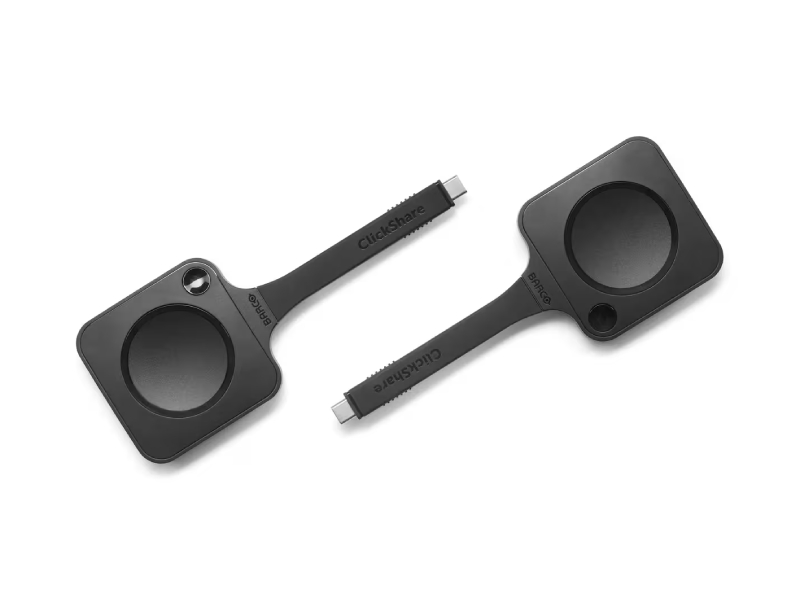

Next-gen ClickShare Button
The ClickShare Button 5th gen, featuring Wi-Fi 6E, offers faster speeds and more reliable connectivity for smooth, uninterrupted collaboration.
Featuring USB-C DisplayPort™, it enables guest-friendly, plug-and-play sharing — no software or drivers needed.
For added privacy and control, the ClickShare Button requires a deliberate press, preventing accidental sharing.
- Works seamlessly across all major OS in high-security environments
- Built-in security and user control
| Specifications | |
|---|---|
| Operating system | Windows 10 or higher macOS 14 (Sonoma) and 15 (Sequoia) |
| System requirements | Minimum: Intel Core i3 or AMD Ryzen 5, 8GB RAM, Windows 10 20HS; Intel Core i3 or Apple Silicon M1, 8GB RAM, macOS 11 Big Sur Recommended: Intel Core i5/Ultra 5 or AMD Ryzen 7, 8GB RAM, Windows 11 latest build; Apple Silicon M3, 8GB RAM, macOS latest build |
| Video outputs | HDMI-1: UW5K WUHD (5120*2160) @30Hz HDMI 2.0 HDMI-2: 4K UHD (3840*2160) @30Hz HDMI 2.0 eDP (Control Panel): HD (1280*800) @60Hz DP 1.4 |
| Video inputs | 4K UHD (3840*2160) @30Hz HDMI 2.0 |
| Audio output | USB-A 2.0/3.0 USB-C 2.0/3.0 HDMI 2.0 |
| ClickShare Buttons | 2 * ClickShare Button 5th Generation |
| ClickShare App | Desktop |
| Maximum sources simultaneously on screen | 1 |
| Noise Level | Maximum 25 dBA @ <30°C Maximum 30 dBA @ >30°C |
| Wireless transmission protocol | IEEE 802.11 a/b/g/n/ac/ax/be and IEEE 802.15.1 BT 5.3 |
| Reach | Max. 30m (100ft) between ClickShare Button and ClickShare Base Unit |
| Frequency band | 2.4GHZ, 5GHz and 6GHz DBS/HBS (DFS channels supported in select number of countries) |

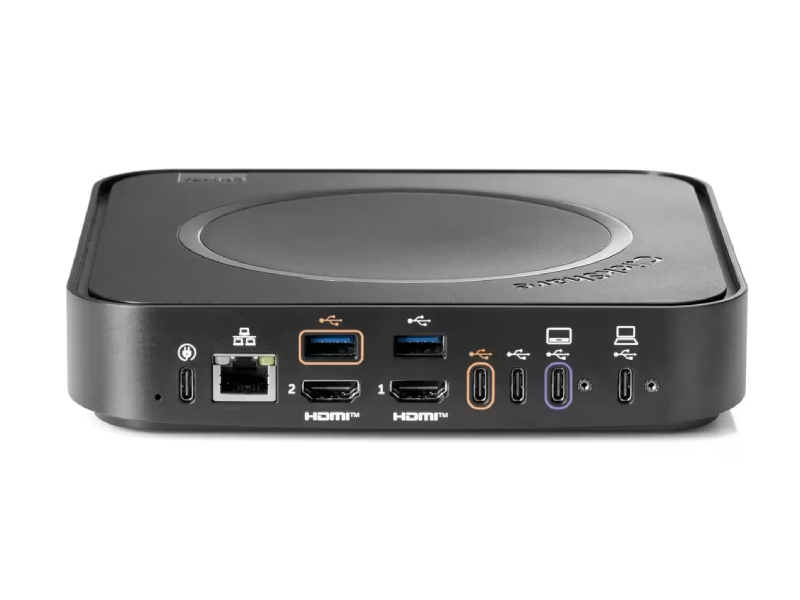

| Connections | Back: 1x Ethernet LAN 1Gbit 1x USB-C Power delivery 3.1 EPR (for power adapter) 2x HDMI 2.0 output 2x USB-C 2.0/3.0 1x USB-A 2.0/3.0 1x USB-C 2.0/3.0 Device + USB-C DisplayPort™ output 1x USB-C 2.0 + USB-C DisplayPort™ output Front: 1x USB-C 2.0/3.0 |
| Temperature range | Operating: 0°C + 40°C (+32°F to +104°F) Max 35°C (95°F) at 3000m Storage: -20°C to +60°C (-4°F to + 140°F) |
| Humidity | Storage: 0 to 90% relative humidity, non-condensing Operation: 0 to 85% relative humidity, non-condensing |
| Anti-theft system | Kensington lock |
| Certifications | FCC/CE |
| Network connection | LAN |
| Management and reporting | Yes, XMS Cloud |
| Warranty | 3 years standard |
| Dimensions (HxWxD) | 37 * 180 * 180 (mm) |
| Power consumption | Operational: 160W (max) Standby: |
| Power supply | External USB-C charger 100W (PD3.0 SPR), 180W (PD3.1 EPR) |
| Weight | 720gr |
| Box content | ClickShare Hub Pro Base Unit, 2 ClickShare Hub Button 5th Gen, Mounting disc, Safety manual, Quick setup guide |
