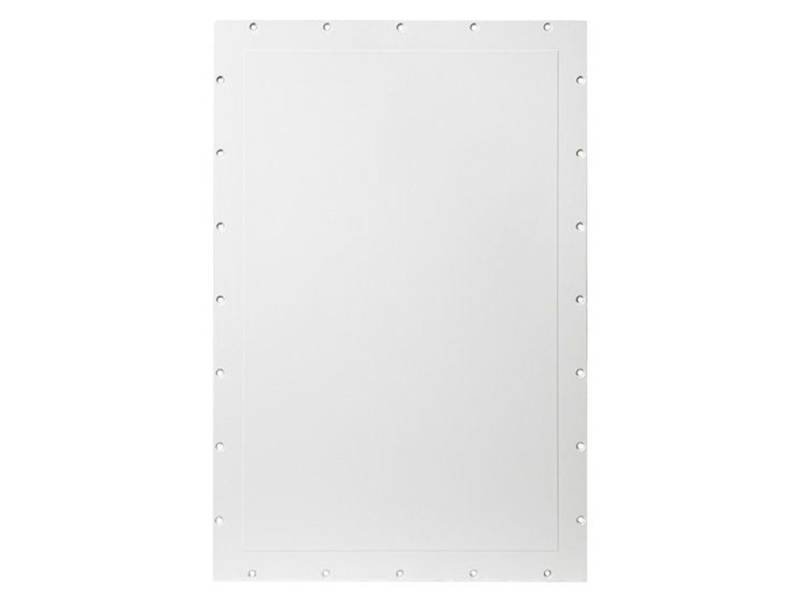

Sonance Invisible Series In-Wall Speaker - ISW
Invisible Series
- The benchmark for performance and installation flexibility for invisible speakers.
- Fully concealed within walls or ceilings for a totally invisible result.
- Speaker surface can be finished with up to 1/8" (3mm) of lightweight flexible material including finishing compound and paint, venetian plaster, wallpaper or wood veneer.

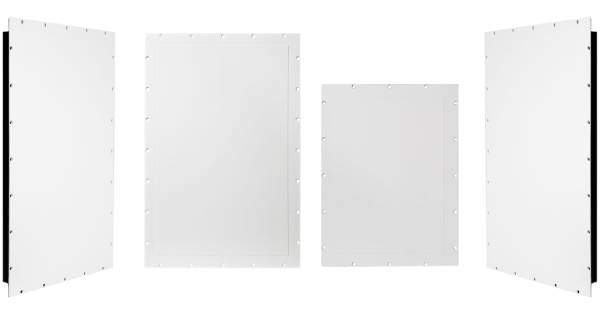

- Available in four models to accommodate any install or budget.
- Optional enclosure to reduce sound transfer to adjacent rooms.
| Specifications | |
|---|---|
| Tweeter | — |
| Midrange | — |
| Woofer | 170 sq. in (1098 sq. cm) planar diaphragm, driven by two 2"" (50mm) voice coils |
| Frequency Response | 35Hz - 150Hz ±3dB |
| Impedance | 8 ohms nominal; 6 ohms minimum |
| Power Handling | 100 watts RMS |
| Sensitivity | 90dB SPL (1 watt/1 meter) |
| Dispersion | 170º hemispherical up to 10kHz |
| Finish | Paper surface ready for up to 1/8" (3mm) flexible material* and paint *Pliable, elastic material such as joint compound, plaster or wallpaper. |
| Overload Protection | Self-resetting gel switch |
| Environment Temperature | 0º - 125º F (-17.7º - 51.7º C) |
| Speaker Depth | 2" (51mm) 3 13/16" (97mm) with optional Enclosure |
| Shipping Weight | 13 lbs (5.85kg) each |
| UL Rating | — |
| Cut-Out Dimensions (W x H) | 16 1/8" x 24 1/8" (409mm x 613mm) |
| Transformer | — |
