Sonance Patio Series Omni6T Omnidirectional Outdoor Speaker - Patio Series Omni6T
Literature
OMNI-6T

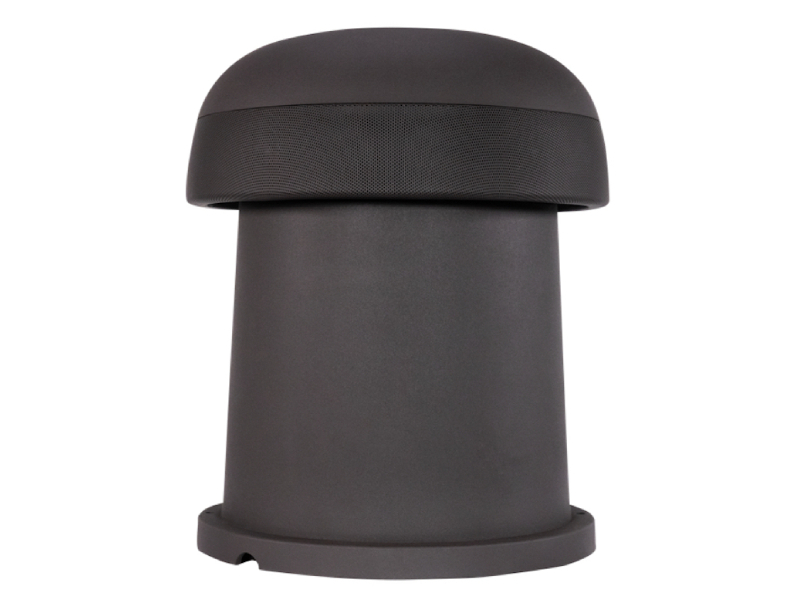

The Sonance OMNI-6T is an Omnidirectional 70V/100V/8 Ohm loudspeaker, designed to deliver 360-degree coverage in applications such as resort gardens, hotel pool areas, theme parks and outdoor shopping malls.
The OMNI-6T features a unique 2-way design, consisting of one high-excursion 6.5" woofer and four 1.25" wide band drivers, providing best-in-class frequency response.
The Sonance Laminated Core Transformer delivers un-compromised fidelity in 70V/100V.
The textured dark brown enclosure is designed to blend into ground cover, garden beds and foliage.
| Specifications | |
|---|---|
| Frequency Range (-10dB) | 38Hz – 25khz |
| Frequency Range (-3dB) | 60Hz – 20kHz |
| Power Capacity | 120 Watts Continuous Program Power, 60 Watts Continuous Pink Noise |
| Nominal Sensitivity | 88 dB |
| Nominal Coverage Angle | 360 degrees horizontal, 160 degrees vertical |
| Directivity Factor (Q) | 2.2 |
| Directivity (DI) | 3.4dB |
| Rated Maximum SPL | 107dB @ 1 meter (3.3 feet) average, 113dB peak |
| Rated Impedance | 8 ohms nominal, 6 ohms minimum |
| Transformer Taps | 80W, 40W, 20W and (10W @70V) |
| Crossover Point | 500Hz |
| LF Driver | 6.5" (165mm) Polypropylene Cone, Santoprene Rubber Surround |
| Wide Band Driver | Four 1.25" (32mm) EPDM dome, Ferrofluid cooled |
| Input Connectors | Flying Leads |
| Environmental | Conforms to Mil Spec 810 for humidity, salt spray, temperature and UV, IEC 529, IP-66 waterproof rating |
| Included Accessories | Silicone filled wire nuts |
| Overall Dimension HxDia | 14.5”x 12" (368mm x 305mm) |
| Net Weight | 14.60 lbs (6.62kg) each |
| Shipping Weight | 23.25 lbs (10.55kg) each |

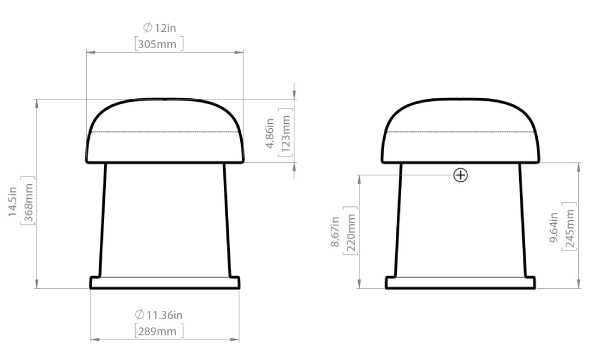

| Shared Specifications | |
| Top Diameter | 12" (305mm) |
| Base Diameter | 11.36" (289mm) |
| Height | 14.5" (368mm) |
