Sonance Professional Series 6.5 Inch Low Profile Speaker With White Grille - PS-C63RTLP WHITE (Pair)
Up to 24 month financing

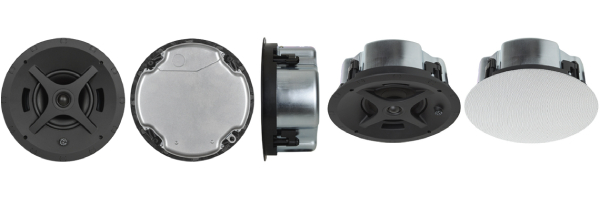

6.5" Low Profile In-Ceiling Speaker
Sonance Professional Series PS-C63RTLP is a 70V/100V/8 Ohm selectable In-Ceiling Speaker that features a shallow 4.37” (111mm) construction for installations in restricted spaces such as beneath HVAC ducting. It also features a one-piece bezel-less grille that is magnetically secured and allows for a one-step painting process to simplify installation and minimize visual distraction.

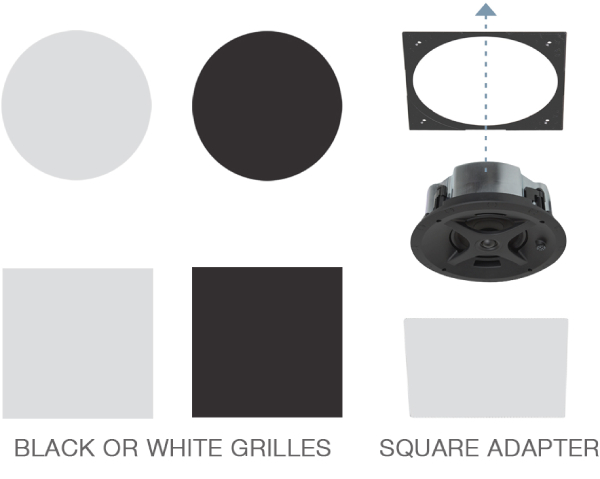

The optional Square Grille Adapter allows speakers to match the aesthetic of square downlights and HVAC grilles to achieve continual sight lines.
A high-excursion 6.5” polypropylene woofer delivers effortless low bass extension, even at high volumes, while the pivoting chambered 1” soft dome tweeter can be directed to ensure accurate coverage, when speaker positioning is compromised.
The PS-C63RTLP features a sealed metal enclosure with back and side knock-outs, removable Euroblock connector with loop-through, and seismic attachment. Additionally, the Sonance PS-C63RTLP is certified for UL 1480 and UL 2043.
| Specification | |
|---|---|
| Frequency Range (-10dB | 49Hz - 25kHz |
| Frequency Range (-3dB) | 65Hz - 20kHz |
| Power Capacity | 120 Watts Continuous Program Power | 60 Watts Continuous Pink Noise |
| Nominal Sensitivity | 91dB |
| Nominal Coverage Angle | 120 degrees conical coverage |
| Directivity Factor (Q) | 6.5 |
| Directivity (DI) | 7.9dB |
| Rated Maximum SPL | 108dB @ 1 meter (3.3 feet) average, 116dB peak |
| Rated Impedance | 8 Ohms nominal, 6 Ohms minimum |
| Transformer Taps | 60W, 30W, 15W (7.5W 70V) |
| Crossover Point | 2750Hz |
| Overall Dimension | 11.06” Diameter x 4.37” Depth (281mm x 111mm) |
| Cut Out Dimension | 10.125” Diameter (257mm) |
| Net Weight | 10.00lbs (4.53kg) each (Preliminary spec - may vary) |
| Shipping Weight | 38.00lbs (17.23kg) pair (Preliminary spec - may vary) |
| Unit of Measure | Pair (Single units upon request) |
| Grille | Supplied with bezel-less white grille. Optional black grille, or square adapter with black or white grille |
| LF Driver | 6.5” (165mm) Polypropylene Cone, Butyl Rubber Surroun |
| HF Driver | 1” (25mm) Cloth Dome, Pivoting, Ferrofluid cooled |
| Input Connector | Four pin Euroblock with loop output connections |
| Knockout | One back-mounted, one side-mounted .75" (19mm) |
| Safety Agency | UL 1480, UL 2043, NFPA 90A, NFPA 70 |
| Maximum Ceiling Thickness | 1.732” (44mm) |
| Suspension Points | One, on top surface |
