Sonance Professional Series Dual 10 Inch Bandpass Subwoofer - PS-S210SUBT (Each)

SKU : PS-S210SUBT

$2,818.77
OR
$129.19/mo
+ taxes/fees
Up to 24 month financing
Scheduled Delivery
Contact Us For Availability, Limited Quantities May Be Available
Contact Us

Literature

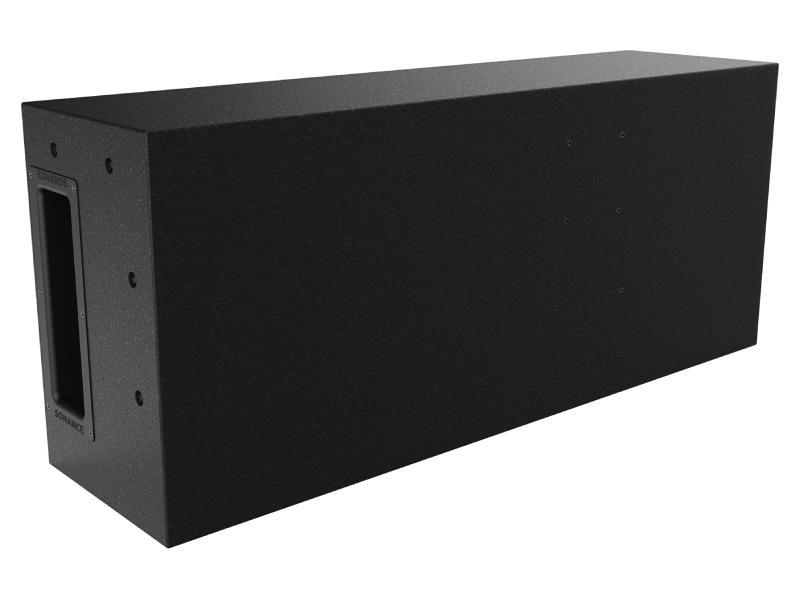

Dual 10" Bandpass Subwoofer

The PS-S210SUBT utilizes all-new 2 x 10” (254mm) low profile, high excursion drivers, that were specifically engineered in-house by Sonance for this product. The polyurethane-coated, laminated-plywood enclosure features an extremely shallow design which allows it to be used in a wide range of specialty applications such as under restaurant booths or banquettes (using the included feet), or mounted onto the side of rafters, on walls or under ceilings (with the optional C-bracket).

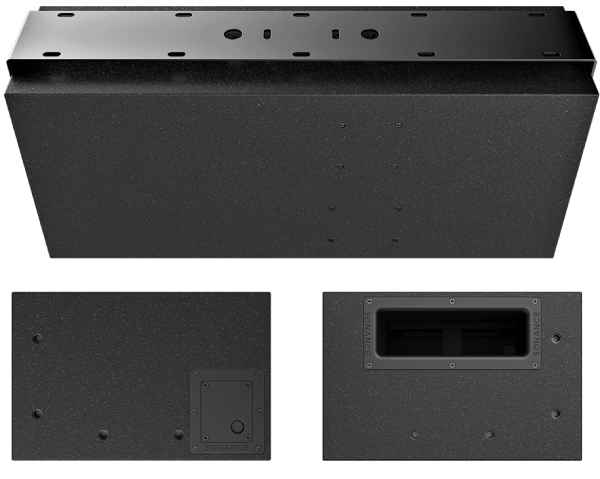

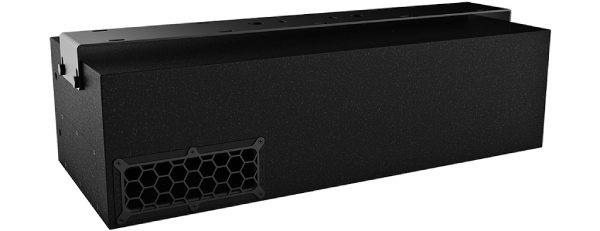

One of the most unique and versatile features of the PS-S210SUBT is the ability to port either from the front or the side of the enclosure. The installer simply unscrews the port from the front of the cabinet, and then unscrews a blanking plate from the side, and swaps them. This will allow the product to be used in a variety of installation locations, while always ensuring the optimum sonic performance is achieved.

The PS-S210SUBT features Sonance’s Laminated Core Technology transformer (SLCT), delivering full-fidelity performance in either 70V or 100V mode. This, combined with the built-in low pass filter, allows the subwoofer to be driven on the same feed as the other full-range loudspeakers in a system, negating the need for additional amplifier channels and DSP.

Specifications
Frequency Range (-10dB)34Hz - 155Hz
Frequency Range (-3dB)44Hz - 132 Hz
Power Capacity500 Watts Continuous Program Power | 300 Watts Pink Noise
Nominal Sensitivity94dB
Nominal Coverage180 degrees conical coverage
Directivity Factor (Q)N/A
Directivity DIN/A
Rated Maximum SPL121dB @ 1 meter (3.3 feet), 127dB peak
Rated Impedence4 Ohms nominal, 3.7 Ohms minimum
Transformer Taps300W, 150W, (75W 70V)
Crossover Point150Hz
Overall Dimension9" Height x 33" Width x 13.78" Depth (228mmx 838mm x 350mm)
Net Weight61 lbs (27.7kgs)
Shipping Weight75.8lbs (33 kgs)
Unit of MeasureSingle
LF DriverDual 10" (254mm) woven glass fiber cones with Butyl rubber surrounds
Input ConnectorFour pin, Euroblock with loop output connections
Safety AgencyNone
Suspension Points4 x M10 on two sides
CabinetLaminated plywood
Optional AccessoryC-Bracket with 4 x M10 mounting bolts
