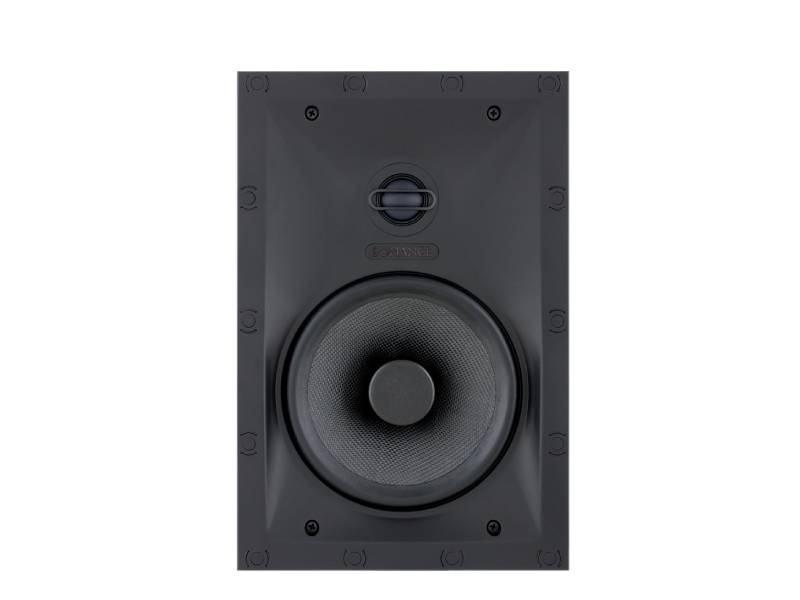

Sonance Visual Performance ThinLine Series Rectangle In-Wall Speaker - VP66 TL
ThinLine
- 34% shallower than standard-depth Visual Performance Series models.
- Pivoting tweeter.*
- Perfect for restricted mounting depths or obstructions found during installation where a conventional speaker is too deep.
- Identical size cutout and grille for a perfect aesthetic match to other Visual Performance Series speakers.
| Specifications | |
|---|---|
| Tweeter | 1" (25mm) powder coated aluminum dome, Ferrofluid-cooled, pivoting, in acoustic back chamber |
| Woofer | 6 1/2" (165mm) Kevlar/Nomex laminated cone with a rubber surround |
| Frequency Response | 43Hz - 20kHz ±3dB |
| Impedance | 8 ohms nominal; 6 ohms minimum |
| Power Handling | 5 watts minimum; 140 watts maximum |
| Sensitivity | 90dB SPL (2.83V/1 meter) |
| Speaker Depth | 2 1/2" (64mm) |
| Dimensions | 8 3/8" x 12 1/4" (213mm x 311mm) |
| Cut-Out Dimensions | 6 15/16" x 10 3/4" (176mm x 273mm) |
| Grille Material | Perforated steel |
| Shipping Weight | 9 lbs (4.1kg) pair |
