Kaleidescape Strato C Movie Player - Strato C
$5,595.00
OR
$256.44/mo
+ taxes/fees
Up to 24 month financing
Up to 24 month financing

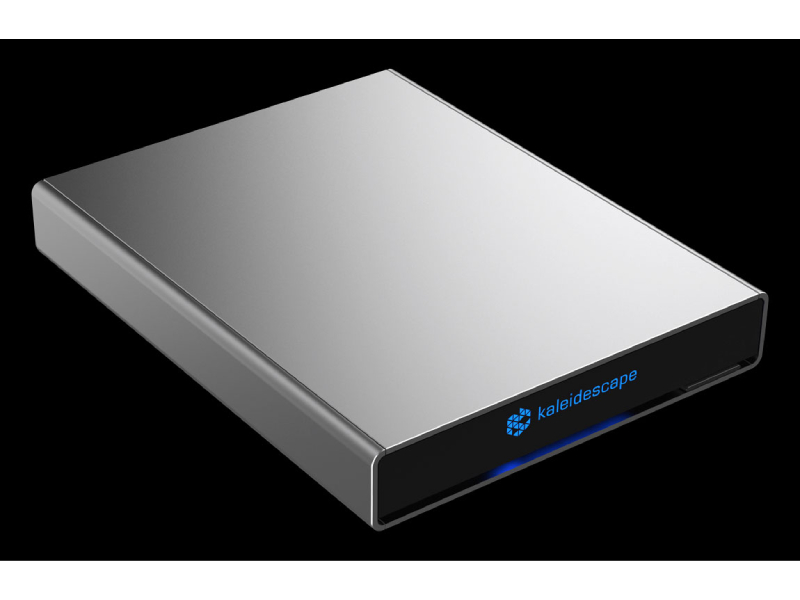

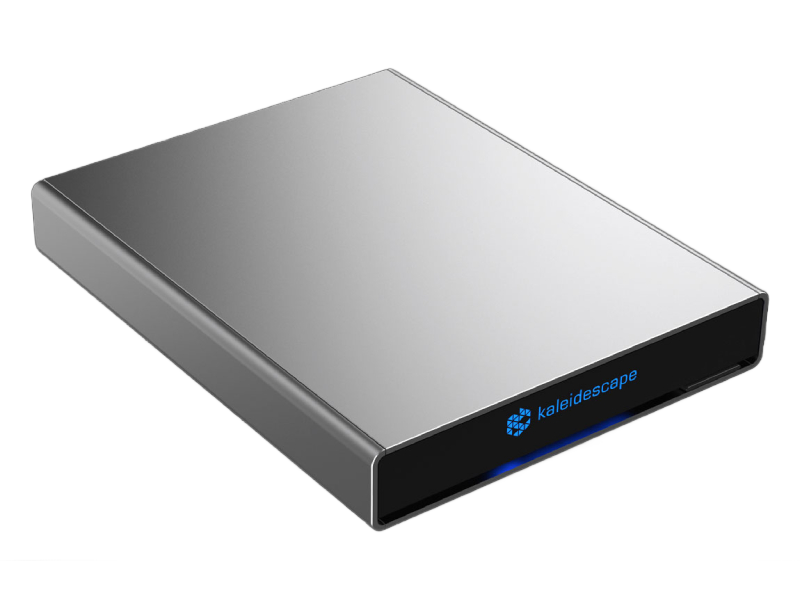

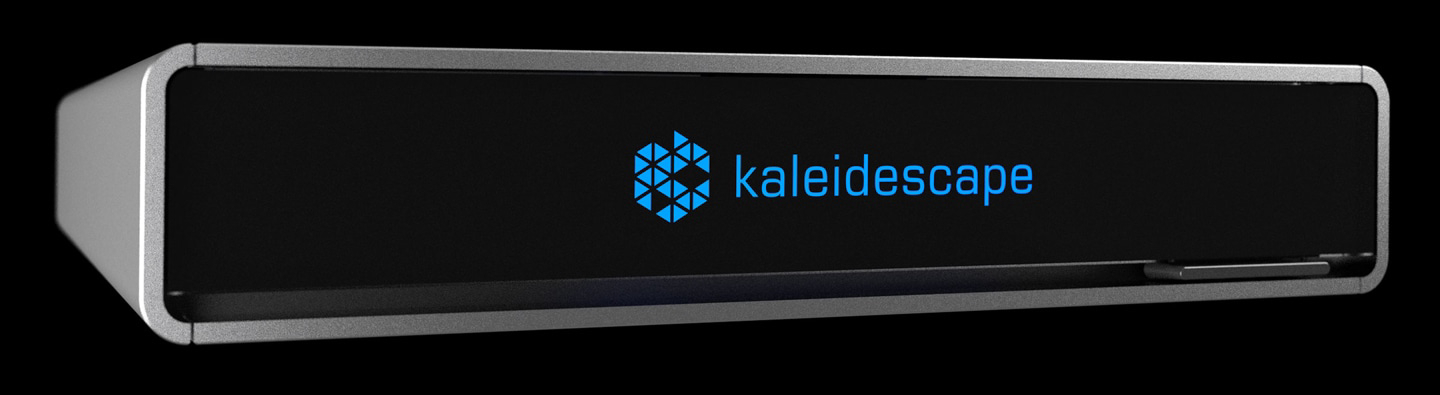

Strato C Movie Player
Strato C is a 4K Ultra HD movie player that supports high dynamic range (HDR) and lossless multichannel audio including Dolby Atmos, Dolby TrueHD, DTS:X, and DTS-HD Master Audio.
- Requires server. Plays movies from Terra movie servers.
- Reference 4K video. Supports 4K Ultra HD, SDR, and HDR10 formats.
- Lossless audio. Clear dialog and immersive sound effects.
- Scalable. Add more players for whole-house entertainment.
- Separate HDMI audio out. Includes separate HDMI 1.4 audio output.
| Specifications | |
|---|---|
| DIMENSIONS | 7.87in x 1.52in x 10.0in (W x H x D) (20.0cm x 3.9cm x 25.4cm) |
| WEIGHT | 4.2lb (1.91kg) |
| POWER | Max consumption: 20W Typical: 17W High power standby: 12W Lower power standby: 0.5W External power adapter with detachable line cord: 100-240VAC to 12VDC @ 5A, 60W, isolated ground |
| NETWORK | Gigabit Ethernet (1000 Base-T) |
| OTHER CONNECTION | USB (for disc cataloging) |
| CONTROL | Front-panel IR receiver window IR input (1/8in mini plug) Kaleidescape control protocol over Ethernet (supported by Josh.ai, Crestron, AMX, Control4, Savant, the Kaleidescape apps, and other apps & control systems) Lutron RA3 and HomeWorks control over Ethernet |
| ENVIRONMENT | Operating: 41 to 95°F (5 to 35°C) Storage: -4 to 140°F (-20 to 60°C) Relative humidity: 20 to 80% (operation) 5 to 90% (storage) Maximum operating altitude: 10,000ft (3,048m) Heat output: 68 BTU/hr (20W) max Airflow: 3.5 CFM (8.4 m3/hr) max |
| VENTILATION | Minimum 1in (2.5cm) space at the front Minimum 2in (5cm) space at the rear |
| MOUNTS (sold separately) | Rack shelf with faceplates is available for mounting 1 or 2 (centered or side-by-side) Strato V players in a 19in rack, 1U space Wall mount available for mounting behind TV displays |
| CERTIFICATIONS | CSA 62368-1 CSA 60950-1 IEC 62368-1 IEC 60950-1 FCC CLASS B CE RoHS Compliant |

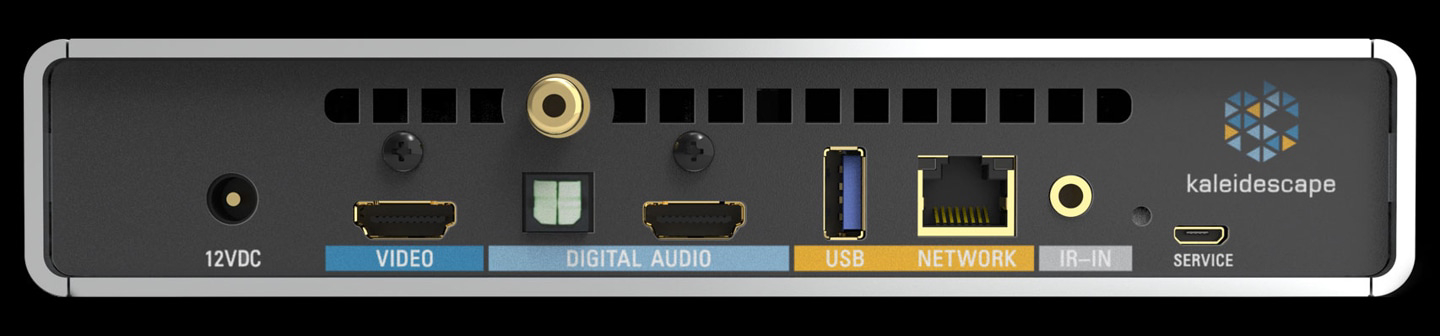

| VIDEO OUTPUT | HDMI 2.0a (labelled “VIDEO”) HDCP 2.2 copy protection |
| VIDEO DISPLAY FORMATS | Resolutions: 2160p60/50/30/25/24, 1080p60/50/24, 1080i60/50, 720p60/50, 576i, 576p, 480i, 480p Chroma: 4:4:4 8-bit up to 2160p60, 4:4:4 10/12-bit up to 2160p30, 4:2:2 12-bit up to 2160p60, 4:2:0 8/10/12-bit at 2160p50/60 only Color spaces: BT.2020, BT.709, BT.601 Aspect ratios: 1.78:1 and 2.35:1 (CinemaScape), automatic or user interface selectable HDR: HDMI 2.0a with support for SMPTE ST 2084 EOTF, SMPTE ST 2086 metadata Movie playback up to 4K; UI in 4K |
| AUDIO OUTPUTS | HDMI 2.0a (combined with video on the VIDEO connector) HDMI 1.4 (audio-only on the DIGITAL AUDIO connector) Digital (coaxial RCA and TOs-link connectors) |
| AUDIO FORMATS (HDMI Connector) | Dolby Atmos DTS:X Dolby TrueHD DTS-HD Master Audio Dolby Digital Plus DTS-HD High Resolution Audio Dolby Digital DTS Digital Surround Dolby MAT PCM PCM (up to 7.1ch, 96kHz/24-bit) |
| AUDIO FORMATS (Coaxial RCA and TOS-link connectors) | PCM (2ch, up to 96kHz/24-bit) |
| STORAGE | No internal storage. Strato C accesses content stored on a Terra or Strato (with internal storage) when connected via network |
| MEDIA | Kaleidescape movie store downloads, including high-bit-rate 4K Ultra HD movies in 10-bit color, with and without high dynamic range (HDR), and movies that meet or exceed the quality available on Blu-ray Disc and DVD |
