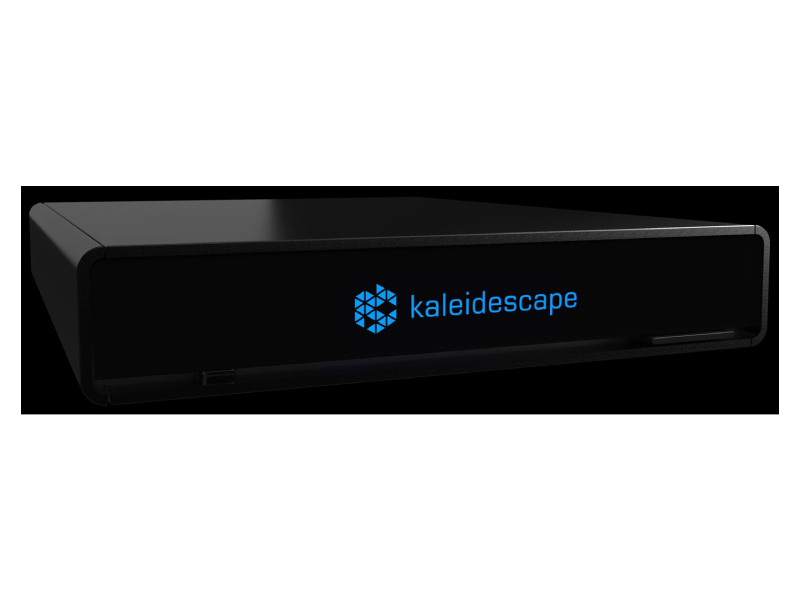

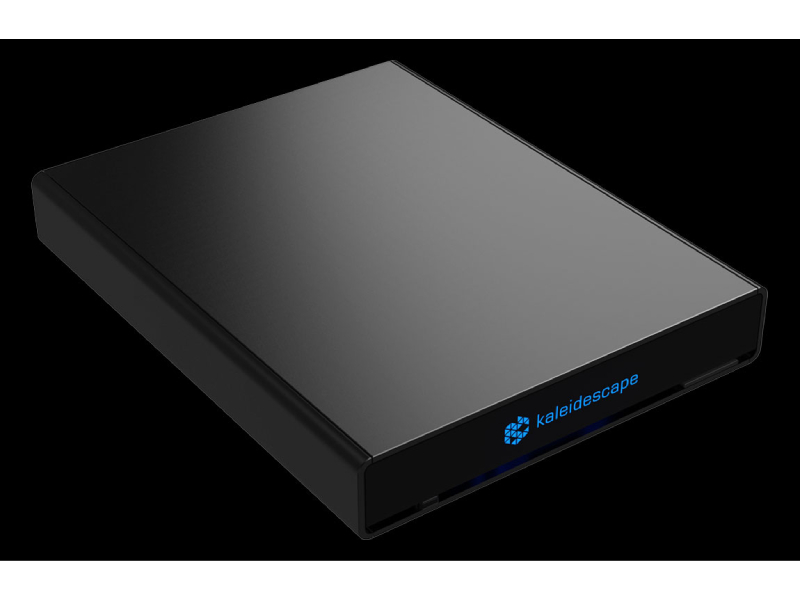

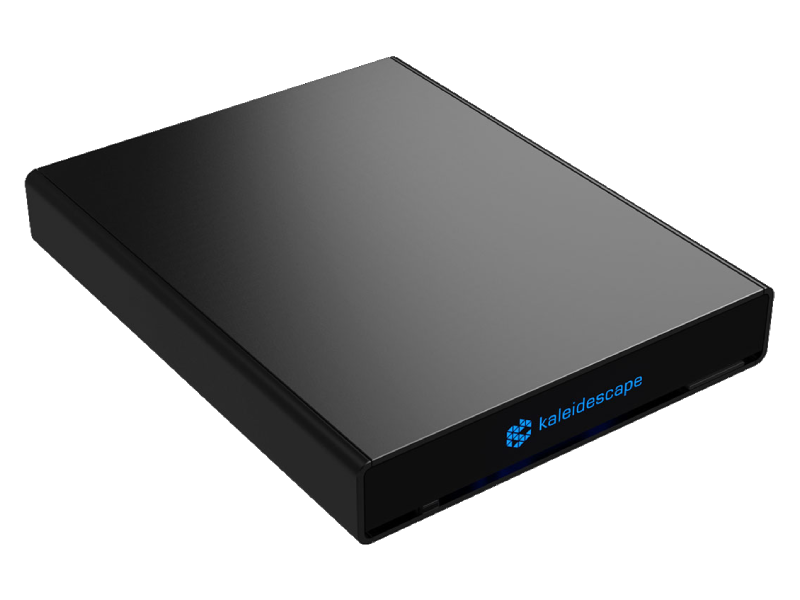

Strato V Movie Player
The next generation of movie player technology. Providing 4K Dolby Vision playback with lossless audio decode, Strato V works on its own or as a part of a larger Kaleidescape system.
- Reference video for every 4K display. SDR, HDR10, and now Dolby Vision.
- Lossless spatial audio. Clear dialog and immersive sound effects.
- Standalone. Includes 960GB solid-state storage.
- Scalable. Add a server for more movies on demand and more players for whole house entertainment.
- Ultimate performance. New electronics and grounding topology for audiophiles.
Visionary
Uncompromising picture quality. Strato V plays 4K movies in standard dynamic range, HDR10, and Dolby Vision with superb upscaling of HD and SD quality content to 4K resolution.
Lossless Audio
Strato movie players provide lossless audio, maximizing sound quality with a range of downstream components. Strato supports multichannel and spatial audio codecs including Dolby Atmos, Dolby TrueHD, DTS:X, and DTS-HD Master Audio.
Kaleidescape’s lossless audio makes your processor, amplifiers, and speakers sound the way the director intended. The dialogue is clearer, and every subtle sound and rumble draws you deeper into the story.
Standalone System

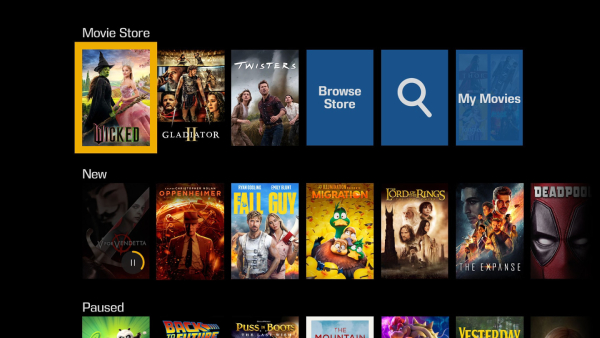

When standalone, Strato V stores approximately 10 reference 4K movies on an internal, solid-state drive. Featuring a new streamlined interface, Strato V is optimized for navigating a small movie library.
Strato V can download a Kaleidescape 4K movie in as little as 10 minutes over gigabit Ethernet. Downloads become a candidate for automatic deletion 48 hours after playback, making room for more movies. Purchased movies can be re-downloaded at any time.
Immense Scale

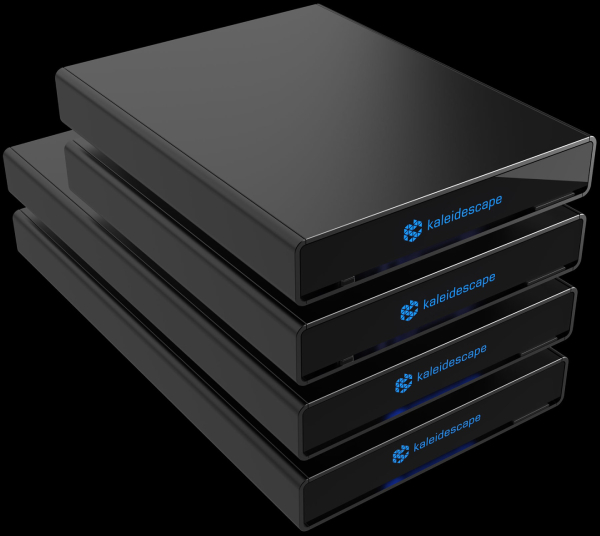

An investment that grows with you. Want room for more movies or players in additional rooms? Unlock the full Kaleidescape experience by grouping Strato V with Terra Prime movie servers. Any number of Strato V movie players can be grouped into a system, with up to four servers per system.

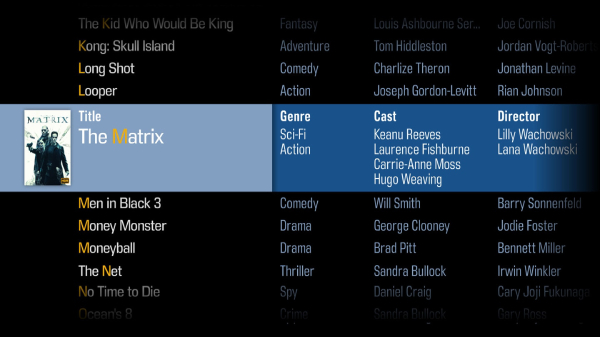

Grouping with a server activates the iconic Kaleidescape covers view and list menus for navigating large movie libraries. It also unlocks Kaleidescape’s parental control settings and proprietary child remote, for a customizable family-friendly experience.

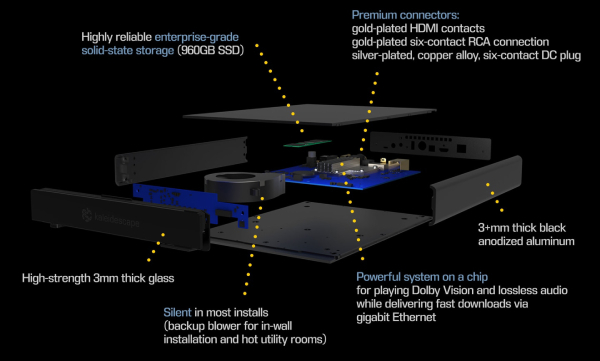

State of the Art
Elevated Installation

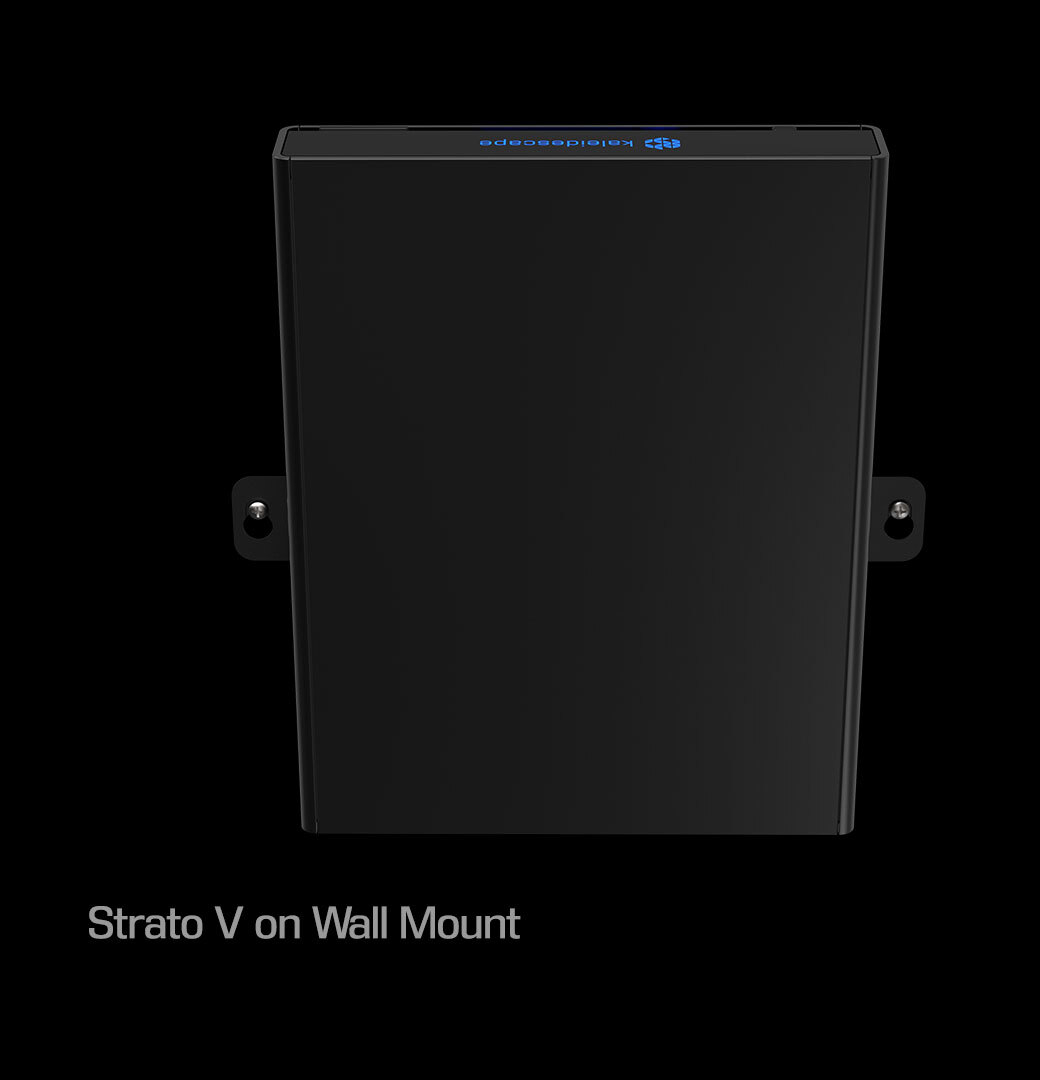

Kaleidescape rack shelves and wall mount solutions are available for a custom install.
| Specifications | |
|---|---|
| DIMENSIONS | 7.87in x 1.52in x 10.0in (W x H x D) (20.0cm x 3.9cm x 25.4cm) |
| WEIGHT | 4.2lb (1.91kg) |
| POWER | Max consumption: 13W Typical: 4.9W High power standby: 3.8W Lower power standby: 0.5W External power adapter with detachable line cord: 100-240VAC to 12VDC @ 5A, 60W, isolated ground |
| NETWORK | Gigabit Ethernet (1000 Base-T) |

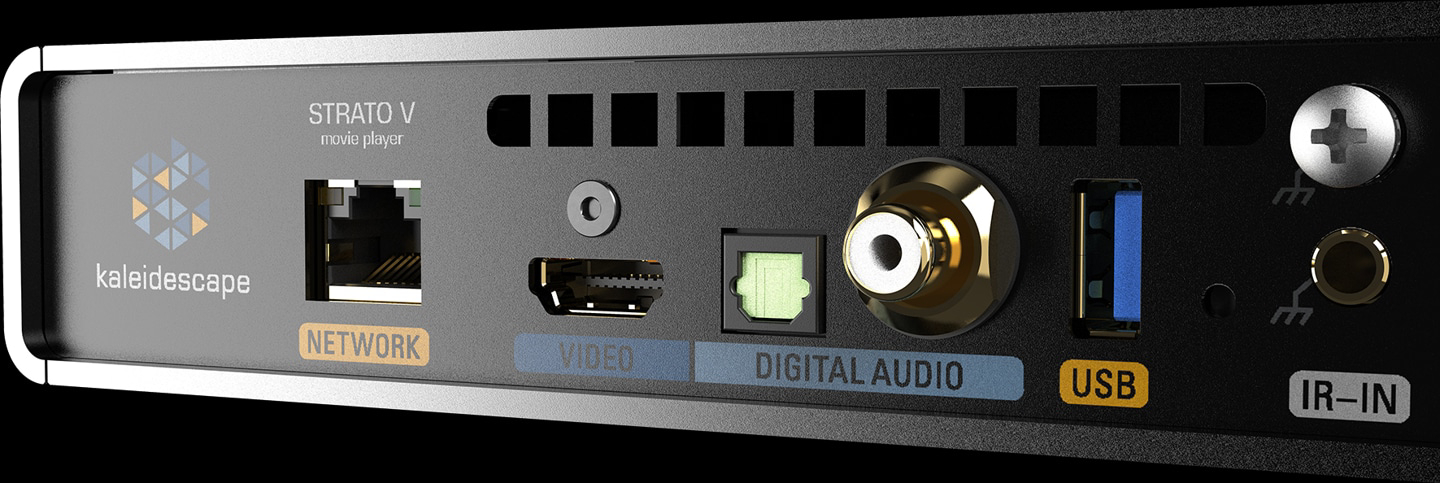

| OTHER CONNECTION | USB (for disc cataloging) Chassis GND connections (X2) |
| CONTROL | Front-panel IR receiver window IR input (1/8in mini plug) Kaleidescape control protocol over Ethernet (supported by Josh.ai, Crestron, AMX, Control4, Savant, the Kaleidescape apps, and other apps & control systems) Lutron RA3 and HomeWorks control over Ethernet |
| ENVIRONMENT | Operating: 41 to 95°F (5 to 35°C) Storage: -4 to 140°F (-20 to 60°C) Relative humidity: 20 to 80% (operation) 5 to 90% (storage) Maximum operating altitude: 10,000ft (3,048m) Heat output: 44 BTU/hr (13W) max Airflow: 5 CFM (8.4 m3/hr) max |
| FAN NOISE | Silent in most installs, 17dB(A) when downloading in hot environments |
| VENTILATION | Minimum 1in (2.5cm) space at the front Minimum 2in (5cm) space at the rear |

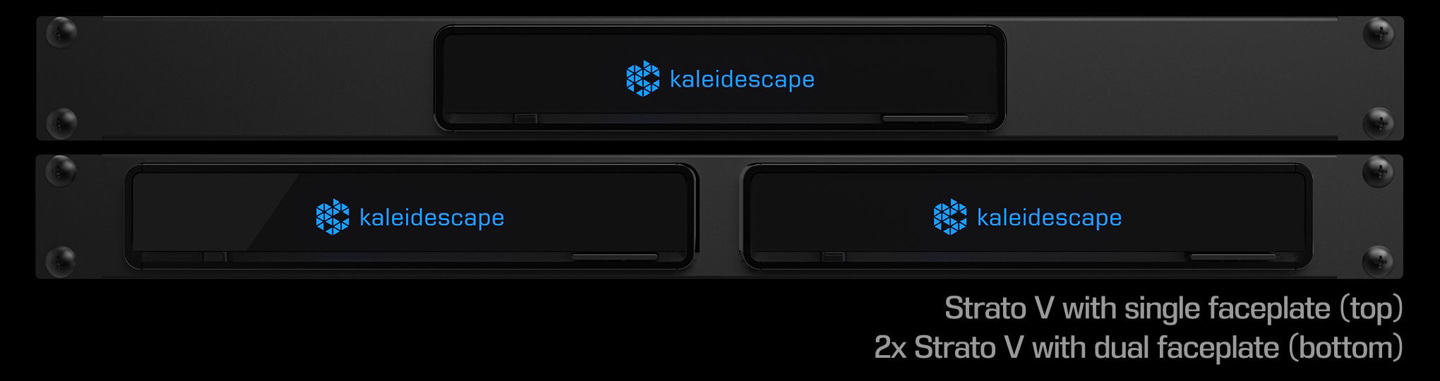

| MOUNTS (sold separately) | Rack shelf with faceplates is available for mounting 1 or 2 (centered or side-by-side) Strato V players in a 19in rack, 1U space Wall mount available for mounting behind TV displays |
| CERTIFICATIONS | CSA 62368-1 IEC 62368-1 FCC CLASS B CE RoHS Compliant |
| VIDEO OUTPUT | HDMI 2.1 HDCP 2.3 copy protection |
| VIDEO DISPLAY FORMATS | Resolutions: 2160p60/50/30/25/24, 1080p60/50/24, 1080i60/50, 720p60/50, 576i, 576p, 480i, 480p Chroma: 4:4:4 8-bit up to 2160p60, 4:4:4 10/12-bit up to 2160p30, 4:2:2 12-bit up to 2160p60, 4:2:0 8/10/12-bit at 2160p50/60 only Color spaces: BT.2020, BT.709, BT.601 Aspect ratios: 1.78:1 and 2.35:1 (CinemaScape), automatic or user interface selectable HDR: Dolby Vision (standard and low-latency) and HDR10 (SMPTE ST 2084, 2086) Movie playback up to 4K; UI in 2K |
| AUDIO OUTPUTS | HDMI 2.1 (combined with video) Digital (coaxial RCA and TOS-link connectors) |
| AUDIO FORMATS (HDMI Connector) | Dolby Atmos DTS:X Dolby TrueHD DTS-HD Master Audio Dolby Digital Plus DTS-HD High Resolution Audio Dolby Digital DTS Digital Surround Dolby MAT PCM PCM (up to 7.1ch, 96kHz/24-bit) |
| AUDIO FORMATS (Coaxial RCA and TOS-link connectors) | PCM (2ch, up to 96kHz/24-bit) |
| STORAGE | Standalone: Internal 960GB SSD (available storage for approximately 10 Kaleidescape high-bitrate 4K movies) Grouped: Strato V can also access content stored on a Terra when connected and grouped via local network |
| MEDIA | Kaleidescape movie store downloads: 4K Dolby Vision, 4K HDR10, 4K SDR, HD, and SD quality View recent HD additions for Strato V in the movie store Current customers can also view their Strato V compatibility page in the movie store |
