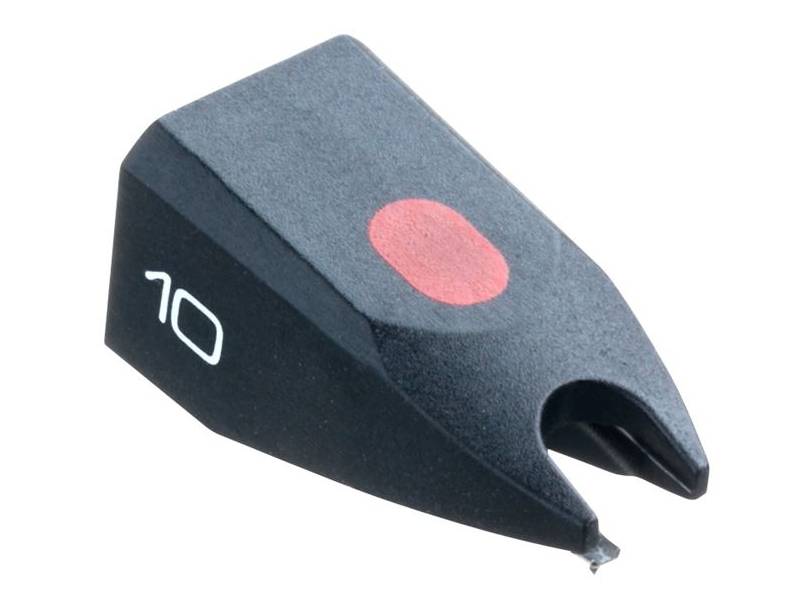

Ortofon Moving Magnet Cartridge Replacement Stylus - Stylus 10
$109.00
Literature
Recommended for following cartridges: Super OM 10, OM 10, OMP-mount 10, OMBulk 10, OMT 10, LM 10, Concorde 10, Concorde EC 10, Concorde STD, TM 10H, LMB 12, SMB 12, LMA 12
| Specifications | |
|---|---|
| Frequency range: | 20-24.000 Hz |
| Frequency response: | 20-20.000 Hz + 3 / - 1 dB |
| Tracking ability at 315Hz at recommended tracking force*): | 70 µm |
| Compliance, dynamic, lateral: | 20 µm/mN |
| Stylus type: | Elliptical |
| Stylus tip radius: | r/R 8/18 µm |
| Tracking force range: | 1.25-1.75 g (12.5-17.5 mN) |
| Tracking force, recommended: | 1.5 g (15 mN) |
| Tracking angle: | 20° |
| Stylus colour: | Black |
